Furthermore, turn on the down-stop icon lamp by pressing needle bar up-
/down-stop button on the program unit to set needle bar down-stop position.
When the down-stop lamp turns on, press button while pressing needle
bar up-/down-stop button. Then, as in the figure right, the information
on what is to be set and the numbers that tell the current position of needle
bar will be shown.
Turn the pulley forward manually to move the needle bar to the desired
position. The screen displays changing position of needle bar.
When the needle bar moves to the desired position, save the position by
pressing key. Then, the screen automatically returns to the initial screen
with a buzzer.
[Caution]
Returning to the initial screen by pressing button without pressing button will not save reset values.

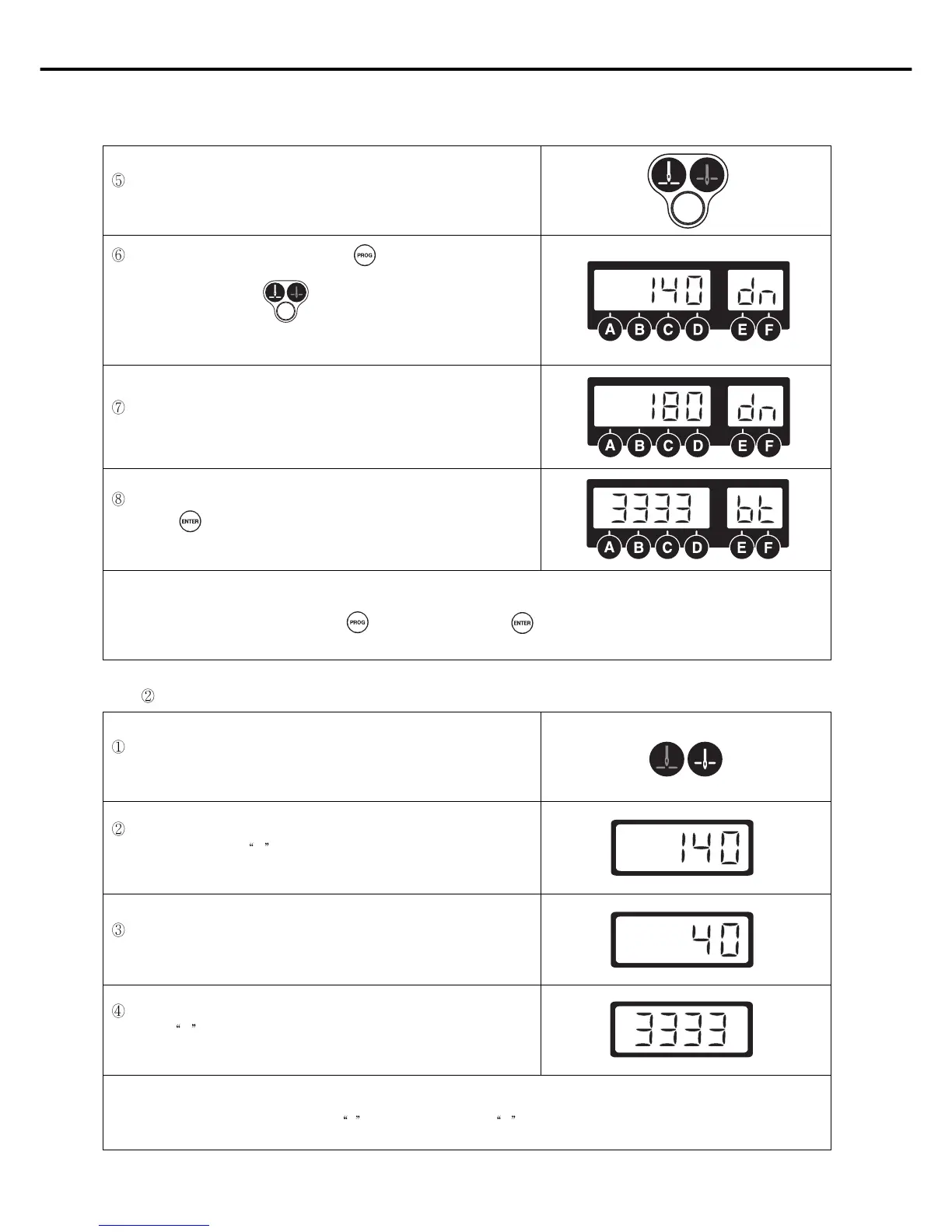

Setting needle bar up-/down-stop position by using simple controller board (front OP).
Turn on the up-stop icon lamp by pressing needle bar up-/down-stop button
on the simple controller board to set needle bar up-stop position.
When the up-stop lamp turns on, press “E” button while pressing needle bar
up-/down-stop button (
C ). Then, as in the figure right, the numbers that tell
the current position of needle bar will be displayed.
The operator turns the pulley forward manually to move the needle bar to the
desired position. The screen displays changing position of needle bar.
When the needle bar moves to the desired position, save the position by
pressing
C key. Then, the screen automatically returns to the initial screen
with a buzzer.
[Caution]
Returning to the initial screen by pressing E button without pressing C button will not save reset values.
