29

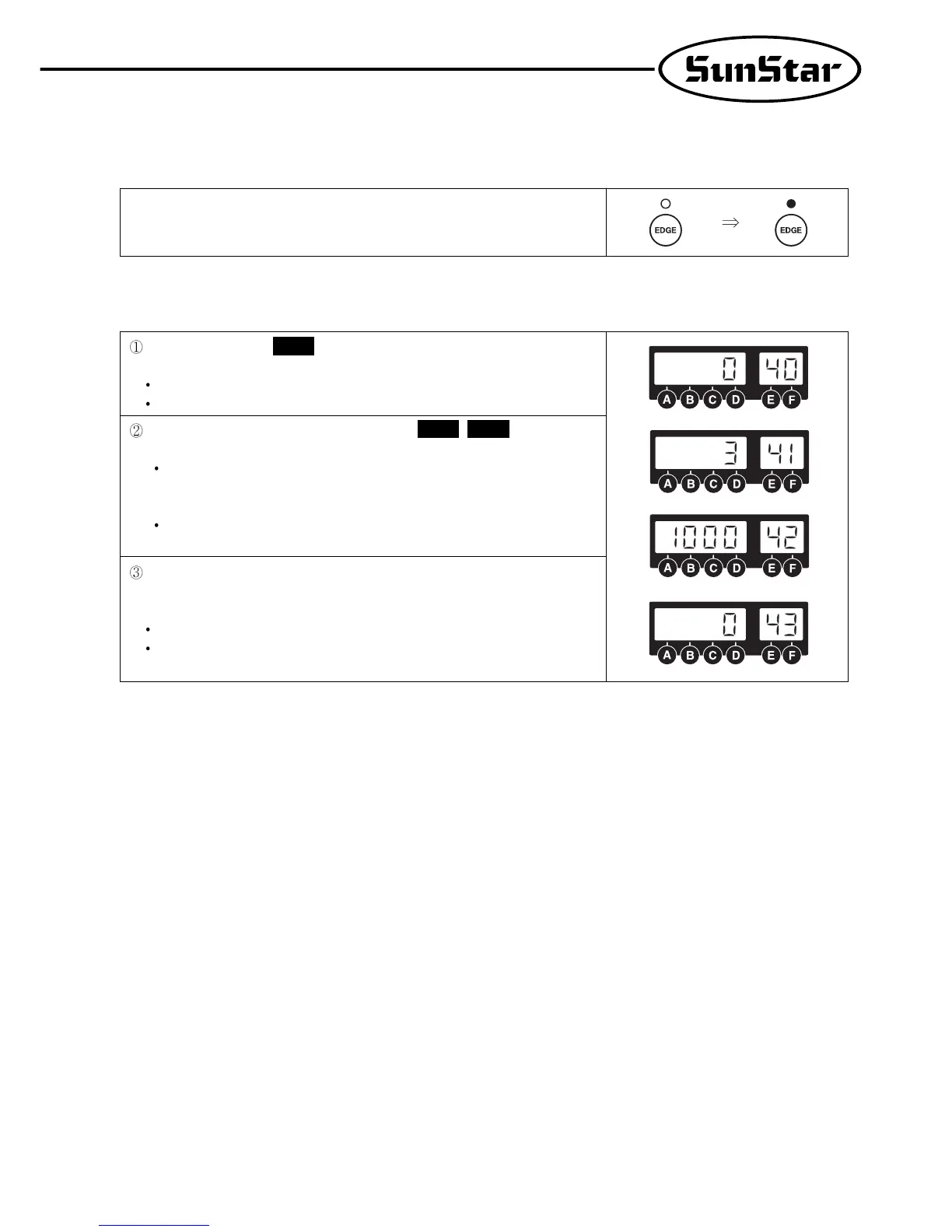

(9) Method of Use: Sewing Material Edge Sensor Selection Button
A. Method of Use: Edge Sensor Function
After programming the edge sensing function in the sewing material from the parameter
specific items, press the button. If the light goes on, you can start using the edje sensor
function.
B. Method of Use of Sewing Material Edge Sensor's Specific Functions
The sewing material edge sensor selection button has a function that enables the machine to stop when it senses the end of a sewing
material. If you want to operate a particular function, you must program a few specific items.
User must change item programmed value according to the characteristic of
the installed sensor.
0: When edge sensing, 5V output (Active High) should be the initial value
1: When edge sensing, 0V output (Active Low)
A-40
After sensing, you can set up the movement to item , .
<Item A-41: the number of stitches it will sew after it senses the edge>
0~225: after sensing, the machine will sew as many stitches as it has been
programmed to sew.
<Item A-42: the sewing speed after it senses the edge of material>
20~2000RPM: this item sets up the speed of the stitches set to be sewn after it senses
the edge.
A-42A-41
After sensing the edge of sewing material and the machine has sewn the number of
stitches at the programmed speed, the user needs to select item A-43 to change the
operation.
0：to stop after sewing the programmed stitch numbers.
1：to operate automatic thread trimming function after sewing the programmed
stitch numbers.
