SINGLE PHASE HI 8kW | User Manual16
Please follow the below steps to implement battery connection:
Please choose a suitable battery cable with the correct connector which can well t into the battery
terminals.

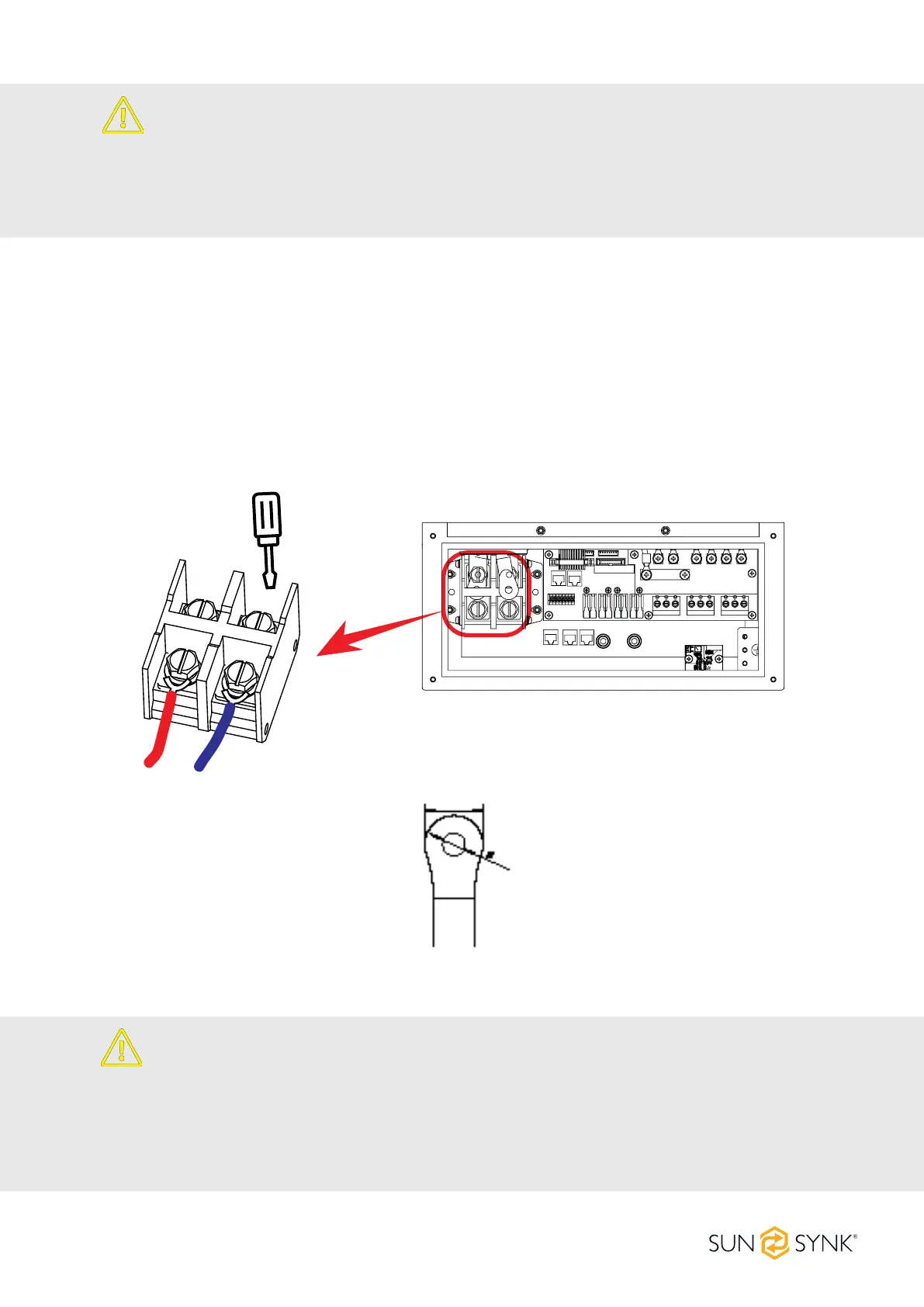

Use a suitable screwdriver to unscrew the bolts and t the battery connectors in, then fasten the bolt
with the screwdriver, ensuring the bolts are lightened with a torque of 24.5 N.m in a clockwise direction.
Make sure the polarity at both the battery and inverter is correctly connected.
In case of children touching or insects, go into the inverter. Please make sure the inverter connector is
fastened to a waterproof position by twisting it clockwise.
CAUTION
Reverse Polarity.
Before making the nal DC connection or closing DC breaker/disconnect, be sure positive (+) must be
connected to the positive (+) and negative (-) must be connected to the negative (-). A reverse polarity
connection on the battery will damage the inverter.
CAUTION
All wiring/connecting must be performed by qualied personnel. Before making the nal DC con-
nection or closing the DC Breaker/disconnection device, ensure the inverter unit is wired correctly. A
reverse-polarity connection on the battery will damage the inverter.
Battery connector screw size: M10.
22mm
10.5mm
DC Battery Input
