SINGLE PHASE HI 8kW | User Manual7
2. PRODUCT INTRODUCTION
This multifunctional inverter combines the functions of an inverter, solar charger and battery charger to oer
uninterruptible power support with a portable size. Its comprehensive LCD display oers user-congurable
and easily accessible button operations such as battery charging, AC/solar charging, and acceptable input
voltage based on dierent applications.

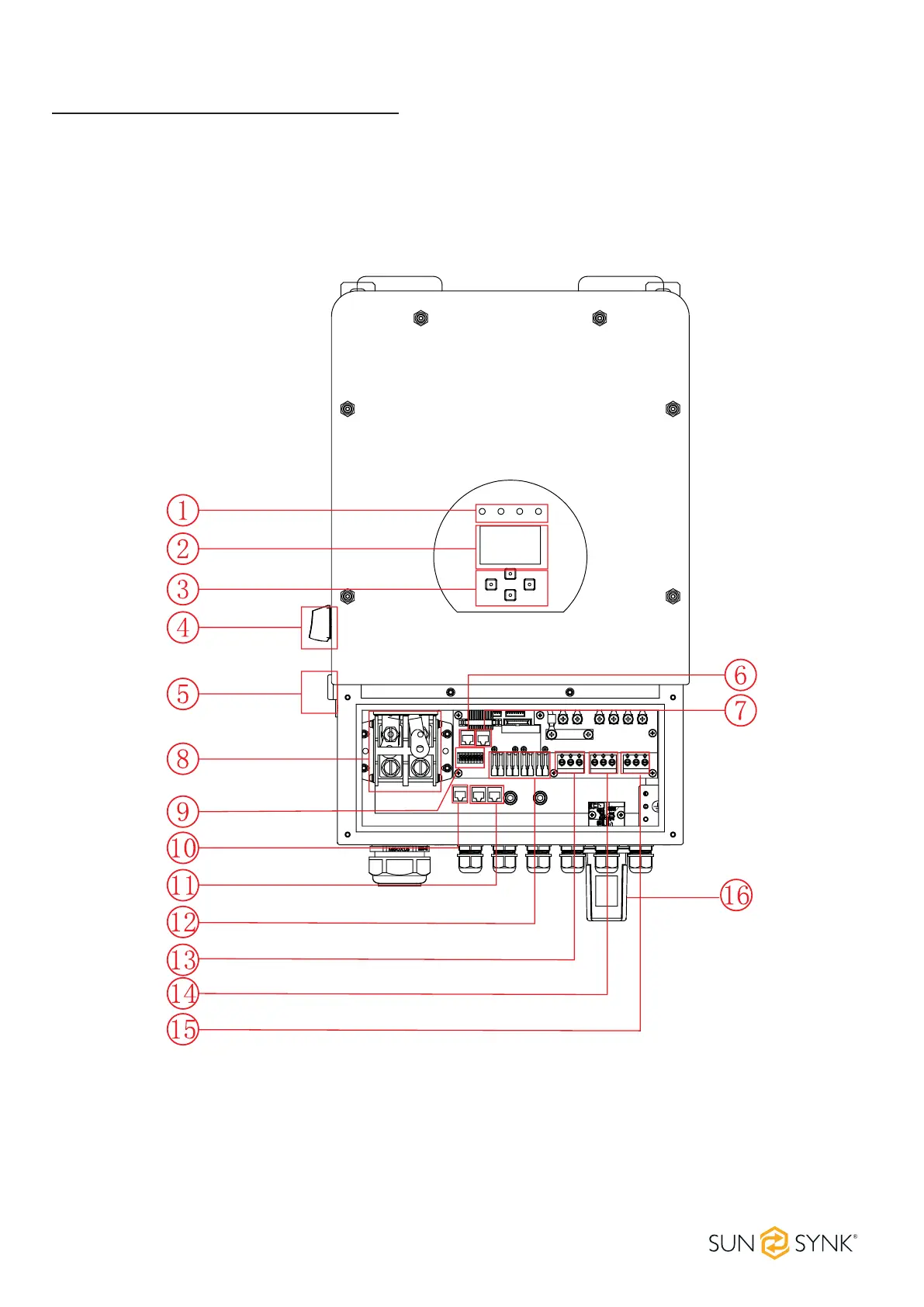

1. Inverter Indicators 7. CAN Port 13. Grid
2. LCD Display 8. Battery input connectors 14. Generator input
3. Function Buttons 9. Function Port 15. Load
4. DC Switch 10. Meter_CON port 16. WiFi Interface
5. Power on/o button 11. Parallel port
6. RS 485 port 12. PV input with two MPPT
2.1. Product Overview
