SINGLE PHASE HI 8kW| User Manual18

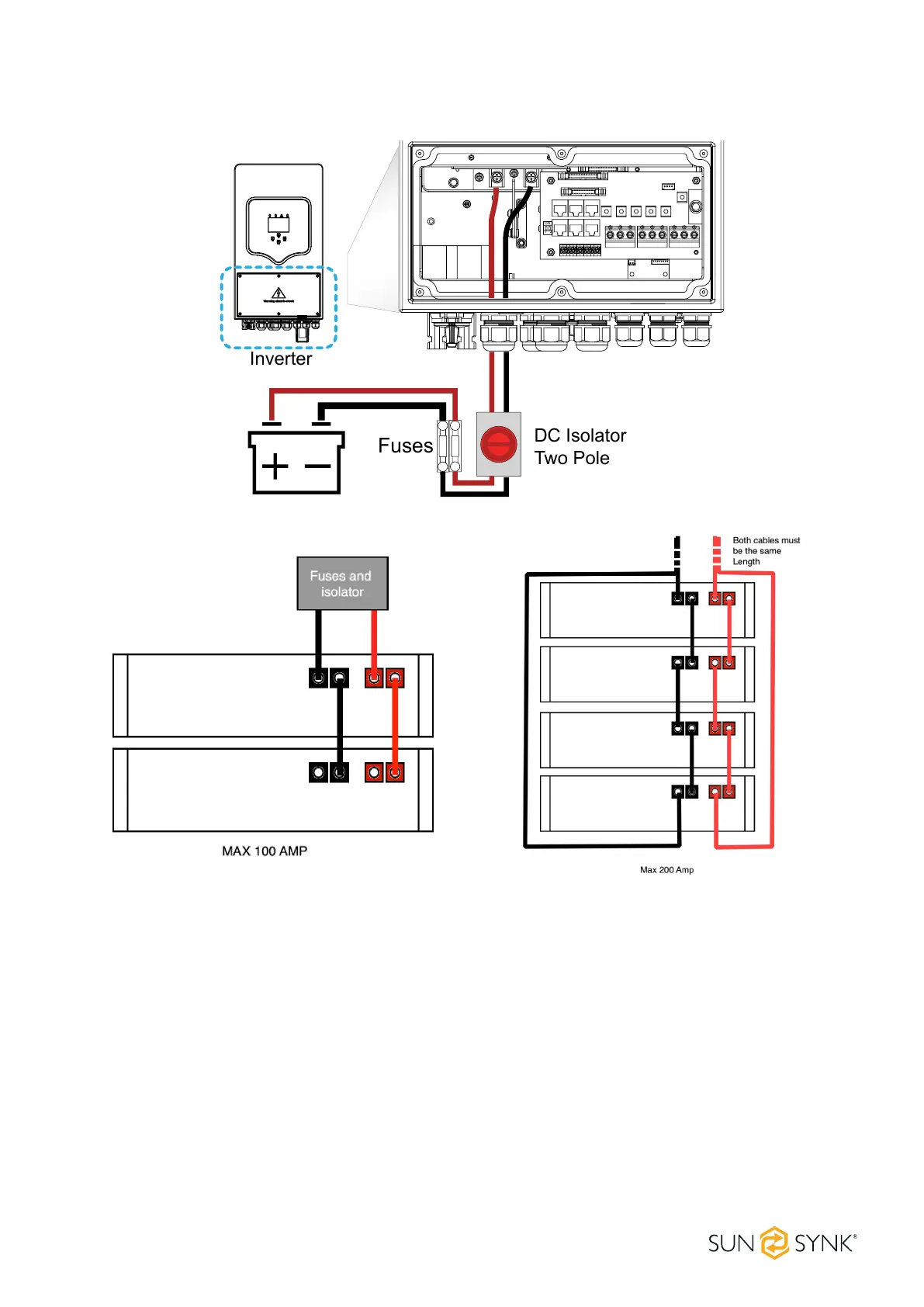

4.4.2. Recommended DC Battery Protection
ON
1 2
Inverter
DC Isolator
Two Pole
Fuses
4.5. Connecting a Lithium Battery
When connecting a Lithium battery, follow the connection steps below and check ‘Setting up a Lithium Bat-
tery’ to connect with an inverter.
1. Connect the correct cable diameter following the battery manufacture specications and recommended
safety devices.
2. Connect a communication cable from the batteries to the inverter in compliance with the battery manu-
facturer's guidelines. The cables have two ends, one to be specically connected to the BMS and another
to be connected to the inverter, do not misconnect them.
3. Connect the power and communication cables to the inverter correctly.
