SINGLE PHASE HI 8kW| User Manual61

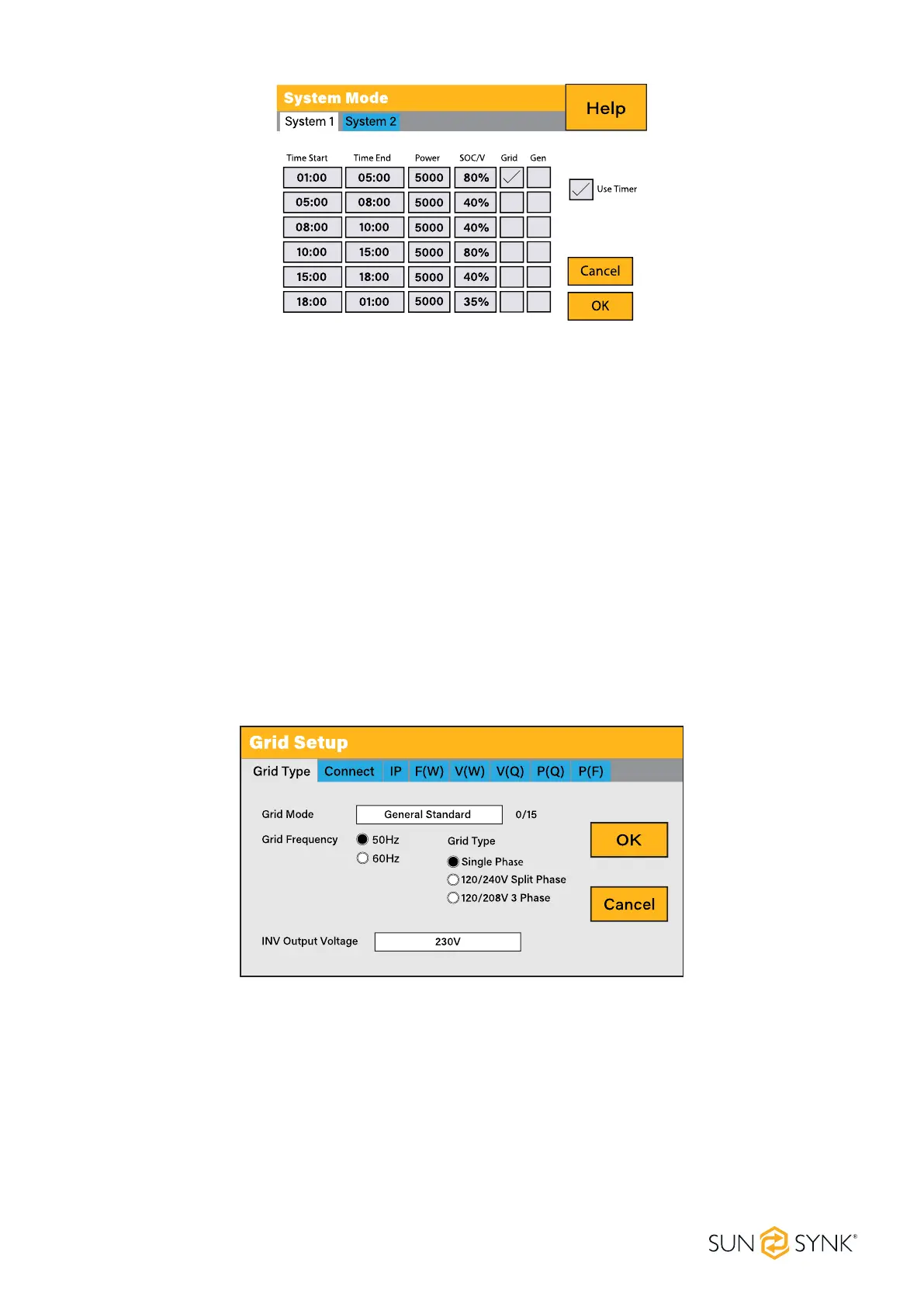

5.14. Grid Supply Page
In the Settings menu, click on the GRID icon.
What this page displays:
Grid Mode: General Standard, UL1741 & IEEE1547, CPUC RULE21, SRD-UL-1741, CEI 0-21, EN50549_CZ,
Australia A, Australia B, Australia C, NewZealand, VDE4105, OVE_Directive_R25, EN50549_CZ_PPDS_L16A,
NRS097, G98, G99. Please follow the local grid code and then choose the corresponding grid standard.
Set the Grid frequency.
Set the Grid type.
Example:
During 01:00-05:00, when the battery SOC is lower than 80%, it will use the grid to charge the battery until
the battery SOC reaches 80%.
During 05:00-08:00 and 08:00-10:00, when battery SOC is higher than 40%, the hybrid inverter will discharge
the battery until the SOC reaches 40%.
During 10:00-15:00, when the battery SOC is higher than 80%, the hybrid inverter will discharge the battery
until the SOC reaches 80%.
During 15:00-18:00, when the battery SOC is higher than 40%, the hybrid inverter will discharge the battery
until the SOC reaches 40%.
During 18:00-01:00, when the battery SOC is higher than 35%, the hybrid inverter will discharge the battery
until the SOC reaches 35%.
