SINGLE PHASE HI 8kW | User Manual15

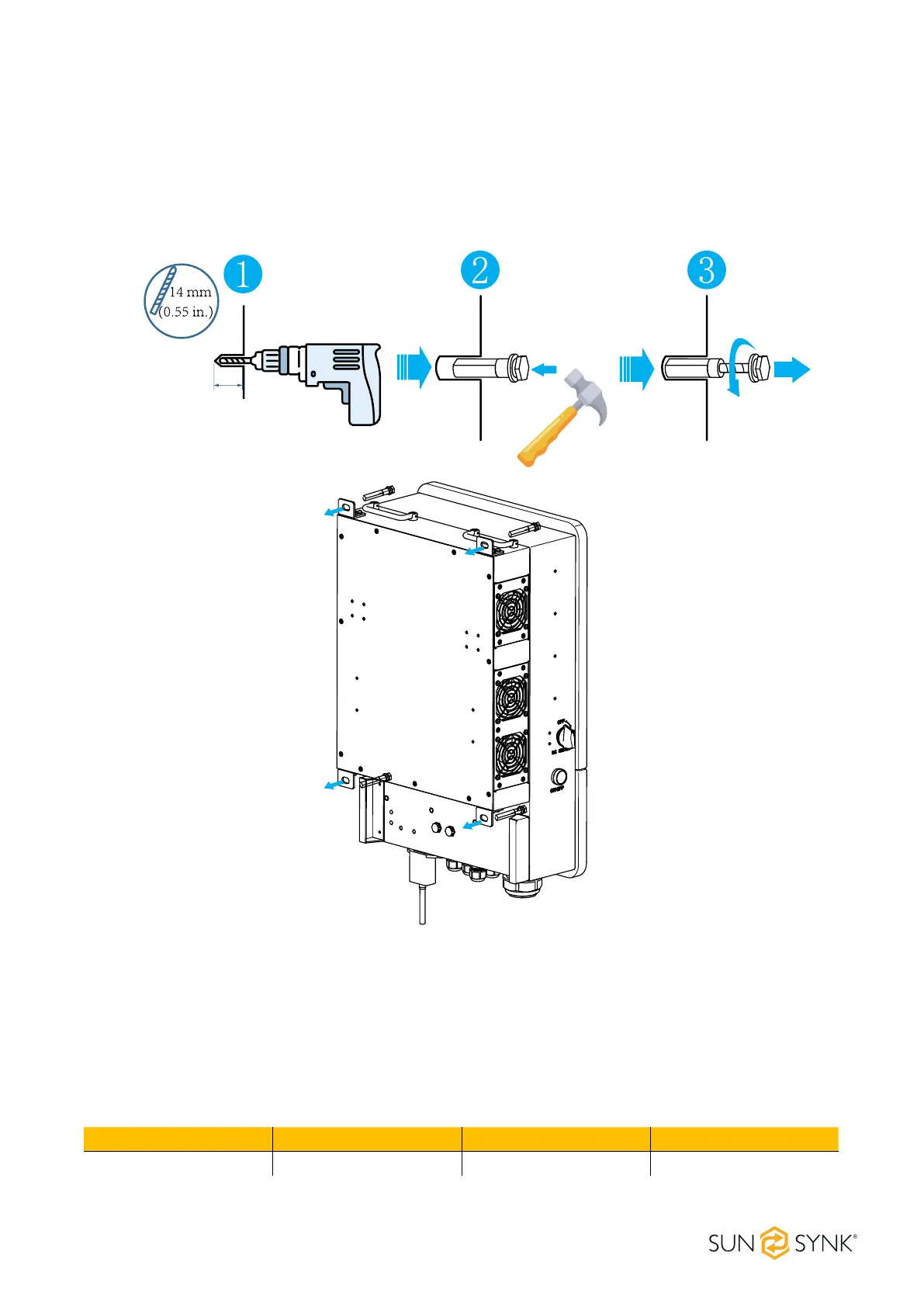

Choose the recommended drill head(as shown below) to drill 4 holes on the wall, 82-90mm deep.
1. Use a proper hammer to t the expansion bolt into the holes.
2. Carry the inverter and hold it, ensure the hanger aims at the expansion bolt, and x the inverter on the
wall.
3. Fasten the screw head of the expansion bolt to nish the mounting.
82-90mm
[(3.23in) to (3.54in)]
4.4. Battery Connection
For safe operation and compliance, a separate DC over-current protector or disconnect device is required
between the battery and the inverter. Switching devices may not be required in some applications, but
over-current protectors are still required. Refer to the typical amperage in the table below for the required
fuse or circuit breaker size.
Model Wire Size Cable (mm
2
) Torque value (max.)
8kW 1 AWG 50 24.5N.m
