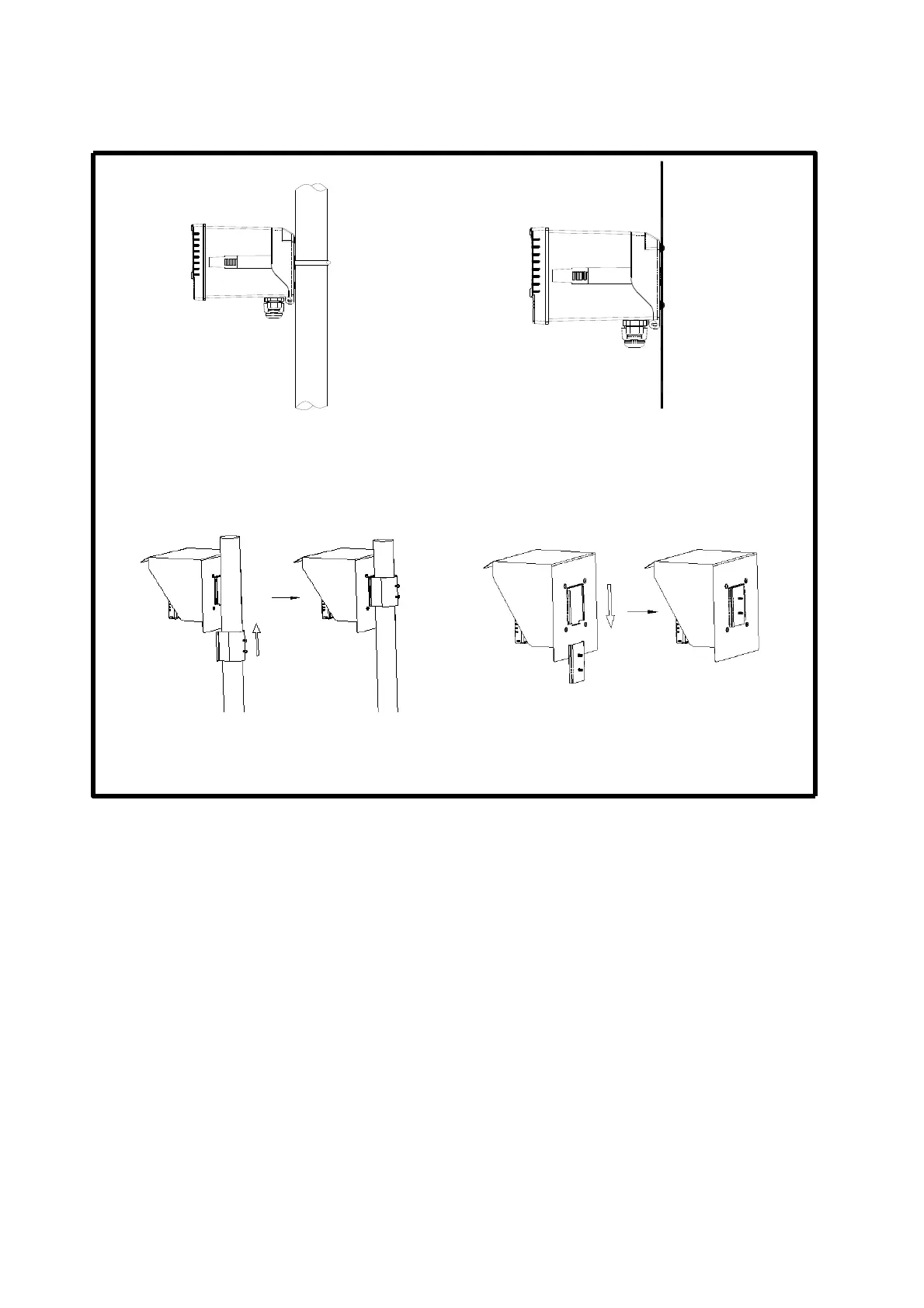

2.3 Illustration of Wall mounting and pipe mounting
Installation of pipe mounting
Fixed with U-shaped pipe clip. The
distance between screw holes is 60mm
Installation of wall mounting
Fixed with 4 x M4 screws
Sun Shield (Pipe mounting)
(Optional)
Sun Shield (Wall mounting)
(Optional)
