Suntex EC-4110 - 6.10 Analog output 2 (Temperature)

6.10 Analog output 2 (Temperature):
Enter setup of Analog 2. Select 0~20mA or 4~20mA current output. Set the related
value to the range of temperature measurement. If the range or the temperature
measurement is smaller, the resolution of current output is higher. When the
measurement value exceeds the upper limit of setting range, the current output remains
at around 22mA. When the measurement value exceeds the lower limit of setting range,
the current output remains at 0mA under 0~20mA mode, or the current output remains
at around 2mA under 4~20mA mode. The phenomenon can be used as a judgment
reference of abnormality. If under HOLD status, the current output will remain at last
current output value before the HOLD status is activated.

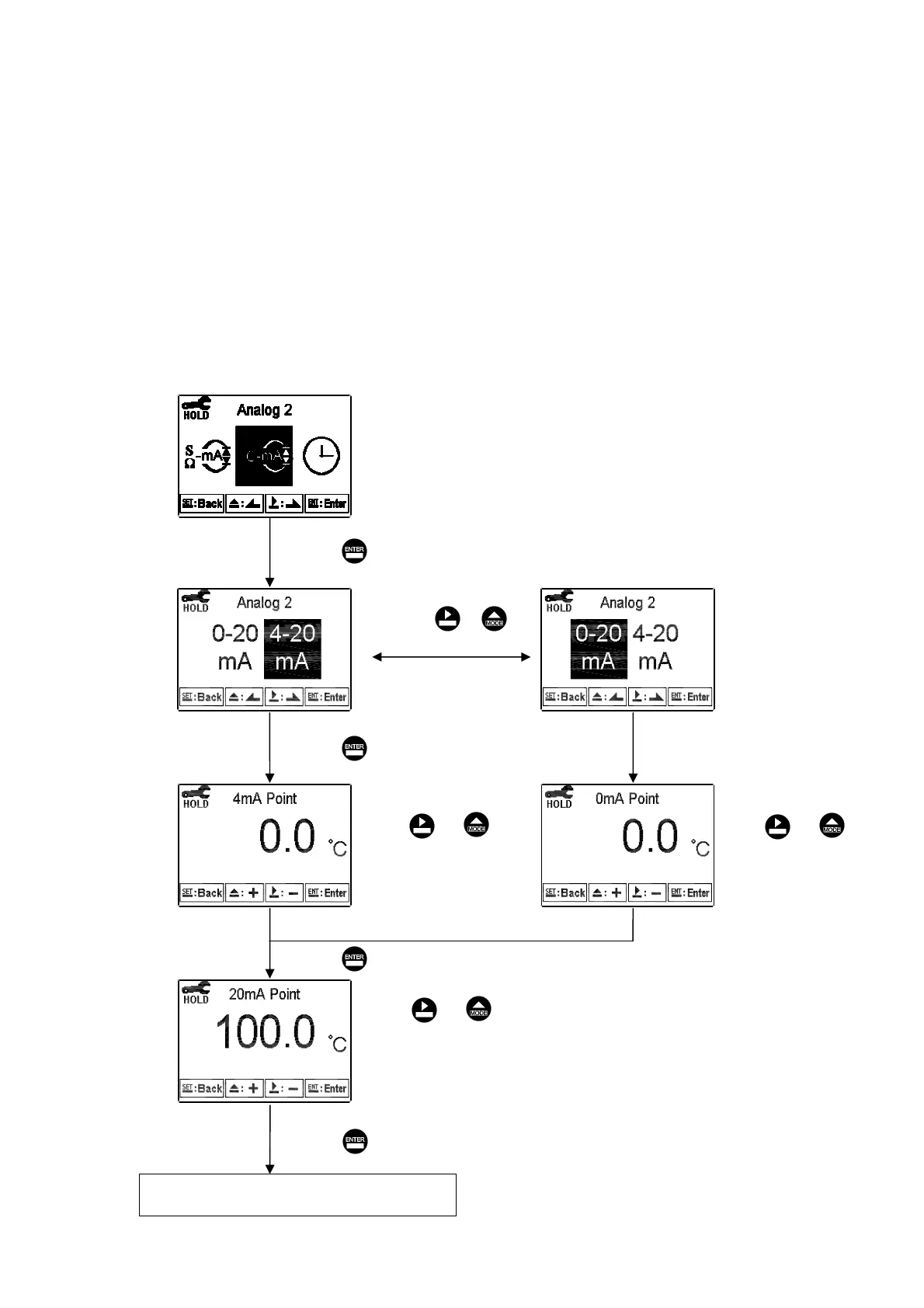

Enter “Date/Time(Clock)” Setup
Press or to
set the lower limit of
Temp. value relative to
0.0mA output signal.
Press ʳ or
to select to current
output range,
0-20mA or
4-20mA.
Press to confirm it.
Press to confirm it.
Press or to
set the lower limit of
Temp. value relative to
4.0mA output signal.
Press to confirm it.
Press or to
set the upper limit of
Temp. value relative to
20.0mA output signal.
Press to confirm it.
