4.4 Display:

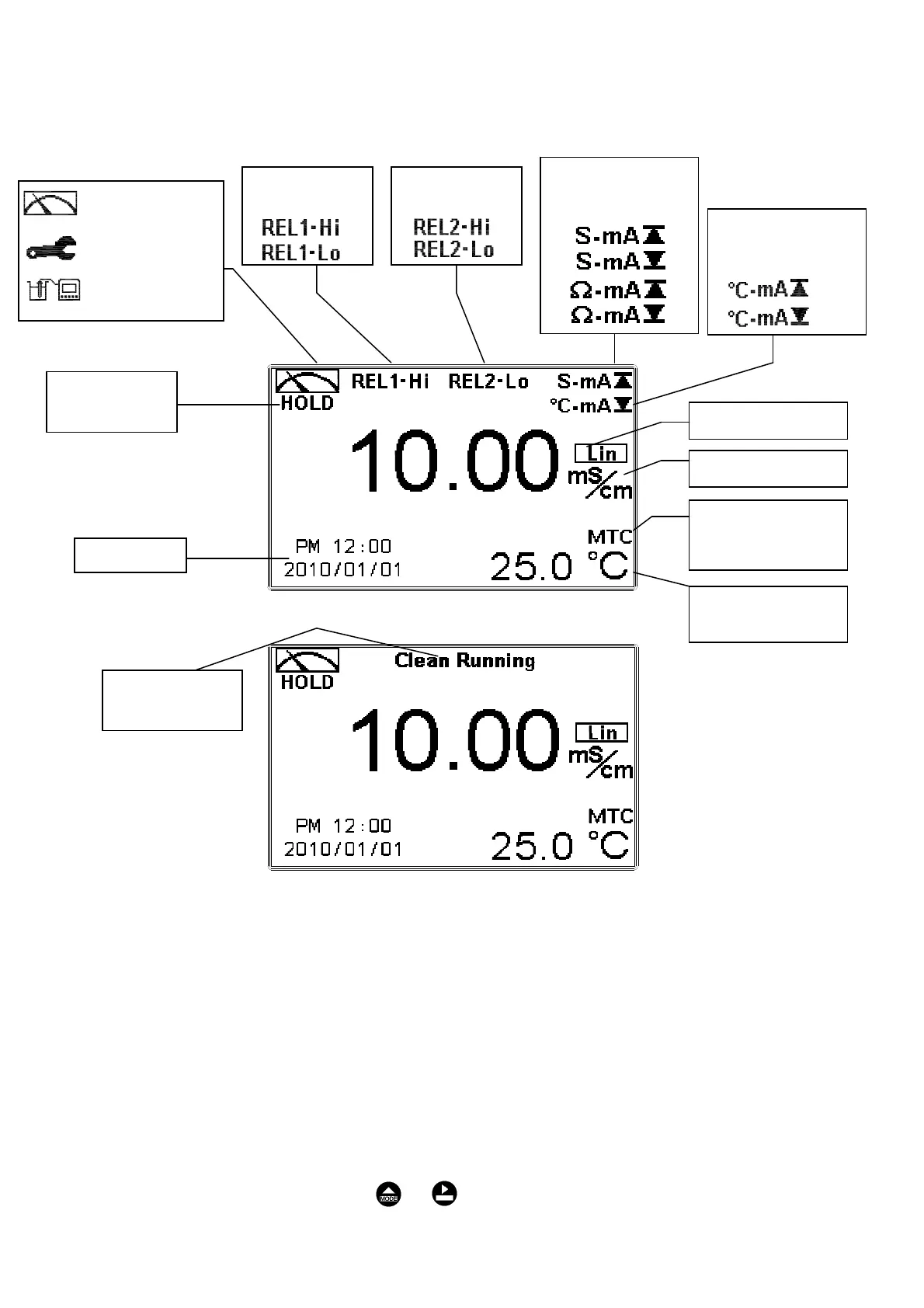

Note: 1. When the wash device is turned on, the display shows and twinkles the description, “Clean
Running”. At the same time, the ACT indicator LED lights up, and the transmitter
automatically turns off Relay 1 and Relay 2 function. After finishing cleaning, the Relay 1
and Relay 2 will automatically back to normal status.
2. When Relay 1 which is set in high setting point is in action, the display shows and twinkles
the description, “REL 1_Hi”, and ACT indicator LED lights up. When Relay 1 which is set
in low setting point is in action, the display shows and twinkles the description, “REL 1_Lo”,
and ACT indicator LED lights up.
3.When Relay 2 which is set in high setting point is in action, the display shows and twinkles
the description, “REL 2_Hi”, and ACT indicator LED lights up. When Relay 2 which is set
in low setting point is in action, the display shows and twinkles the description, “REL 2_Lo”,
and ACT indicator LED lights up.
4. When under measurement mode, if the temperature compensation mode is set in MTC
(Manual adjustment), press or to adjust the MTC temperature manual.
Analog 2 output
current over range
alarm
Control function
on hold
:Measurement mode
:Set-up mode
:Calibration mode
RELʳ1ʳhighʳʳ
˿ point alarm
Wash device in
action condition
Meaurementʳ˼
Clock
RELʳ˅ʳhighʳʳ
˿ point alarm
Analog 1 output
current over range
alarm
Temperature
compensation mode
(MTC/ATC)
Temperature valueʳ
˴˷ʳ˼
Compensation unit
кл
