2. Assembly and installation
2.1 Transmitter installation: This Transmitter can be installed through panel mounting, wall
mounting and pipe mounting.
Installation of panel mounting: Firstʿ prepare a square hole of 93 x 93mm on the panel box,
and then insert the controller directly into the panel box. Insert the accessorial mounting bracket
from the rear, and make it be fixed in to pickup groove.

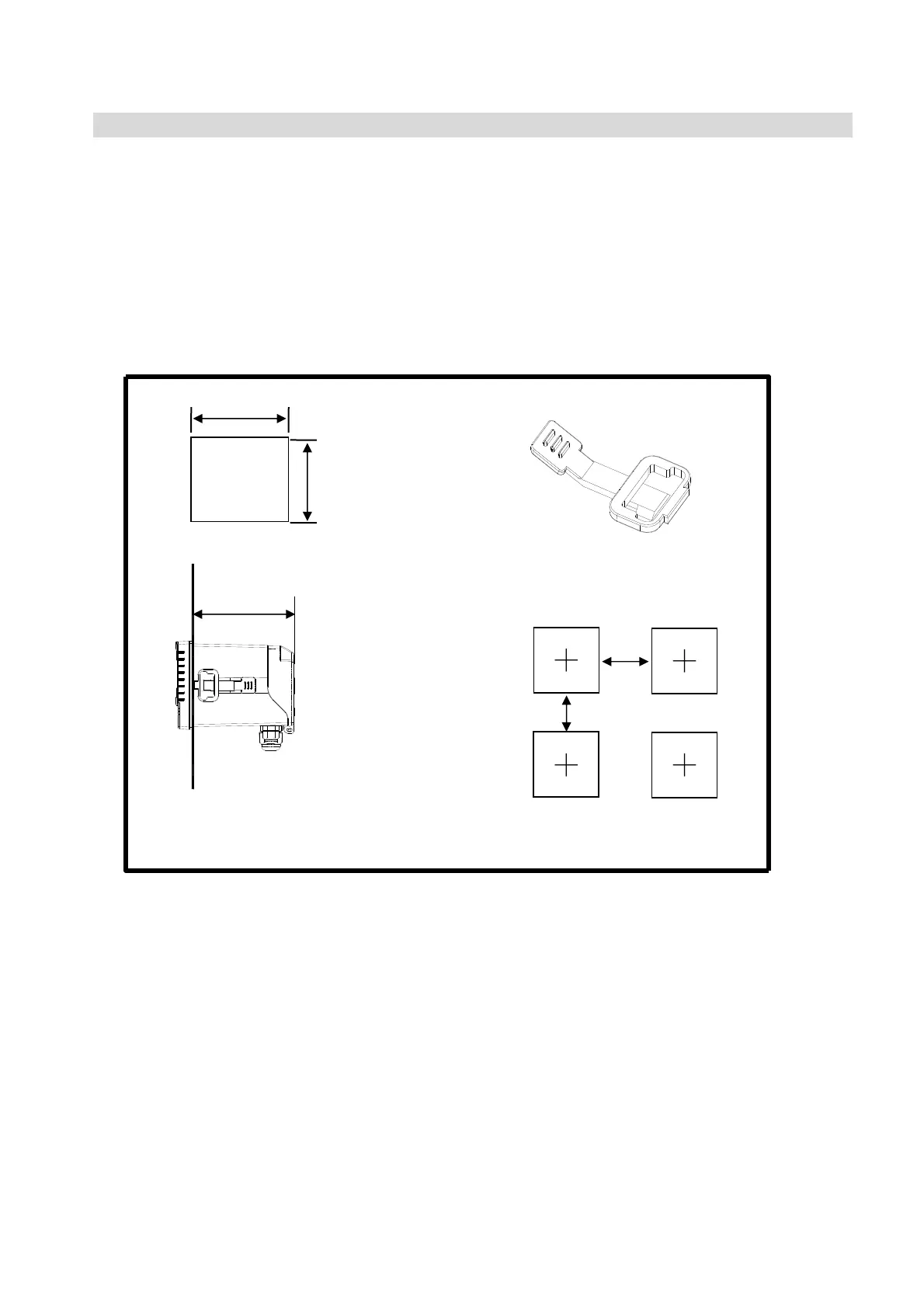

2.2 Illustration of panel mounting:
93 mm
93 m
m
Hole size
87 mm
Ѐ
87 mm
Hole distances on the
p
anel box
Mounting bracket
Illustration of panel mounting,
fixed with mounting bracketʳ
Ѐ
Ѐ
Ѐ
112 m
m
о
