6.9 Analog output 1 (Cond/Res):

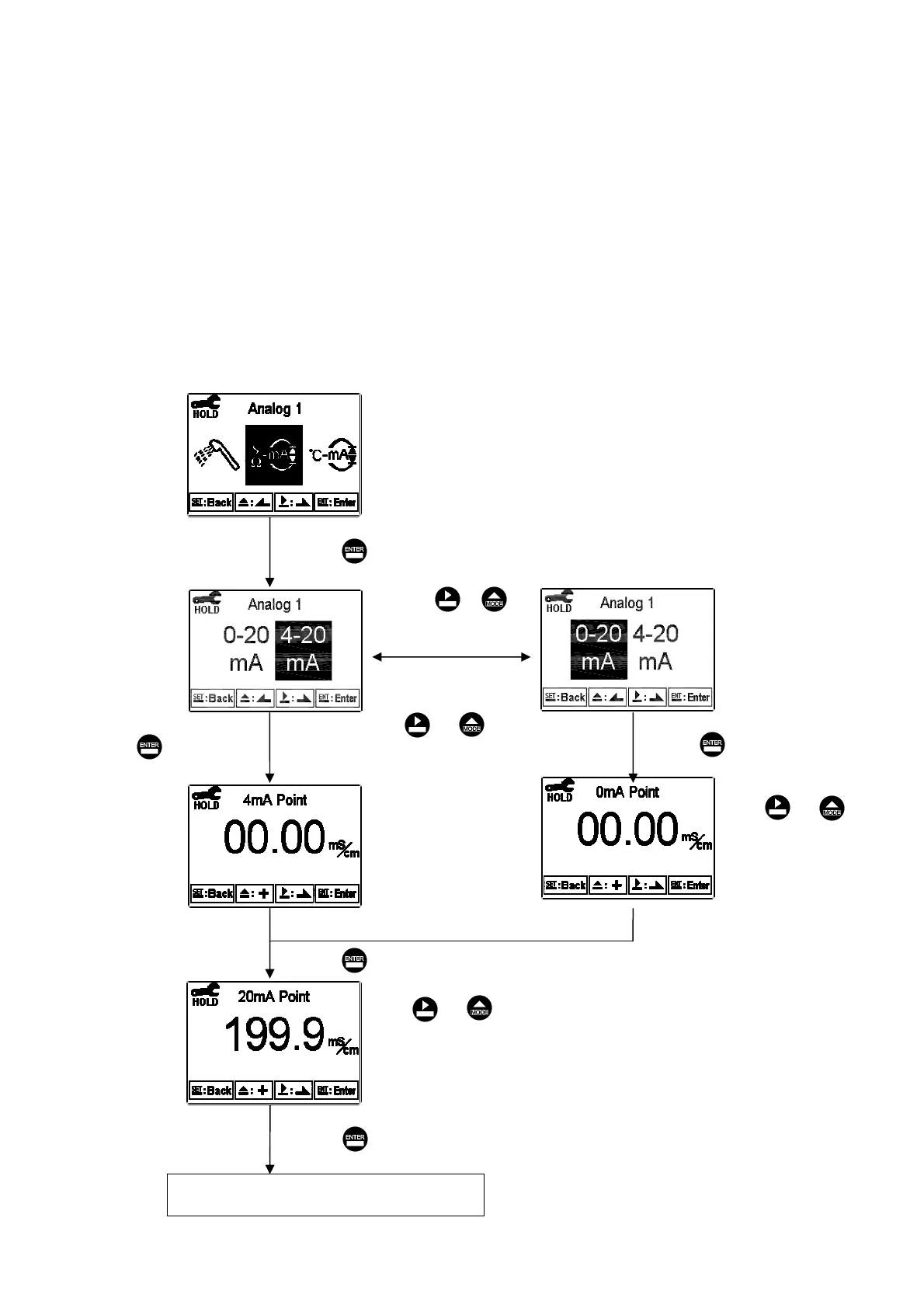

Enter setup of Analog 1. Select 0~20mA or 4~20mA current output. Set the related
value to the range of Cond./Res. measurement. If the range of the Cond./Res.
measurement is set smaller, the resolution of current output is higher. When the
measurement value exceeds the upper limit of setting range, the current output remains
at around 22mA. When the measurement value exceeds the lower limit of setting range,
the current output remains at 0mA under 0~20mA mode, or the current output remains
at around 2mA under 4~20mA mode. The phenomenon can be used as a judgment
reference of abnormality. If under HOLD status, the current output will remain at last
current output value before the HOLD status is activated.
Press or to
set the lower limit of
Cond. value relative to
0.0mA output signal. If
the measuring range of
conductivity
measurement is set as
AUTO, then it needs to
be set unit((S /cm or
mS/cm), value, and
decimal point by order.
Press ʳ or
to select to current
output range,
0-20mA or
4-20mA.
Enter “Analog 2” Setup(Temperature)
Press to confirm it.
Press to confirm it.
Press to confirm it.
Press or to
set the lower limit of
Cond. value relative to
4.0mA output signal. If
the measuring range of
conductivity
measurement is set as
AUTO, then it needs to
be set unit((S /cm or
mS/cm), value, and
decimal point by order.
Press to confirm it.
Press or to
set the upper limit of
pH value relative to
20.0mA output signal.
Press to confirm it.
