WATER RECYCLING SYSTEM
Publication: 0028607 5-11
5
9. Remove and clean the Y-strainer filter element, then
reinstall. (See “Y-Strainer Cleaning” on page 5-6).
10. Drain the recycling supply line.
• Open the drain valve (5) on the elbow of the
charge pump and allow any remaining water to
drain out. Once all the water has drained out,
close the drain valve.

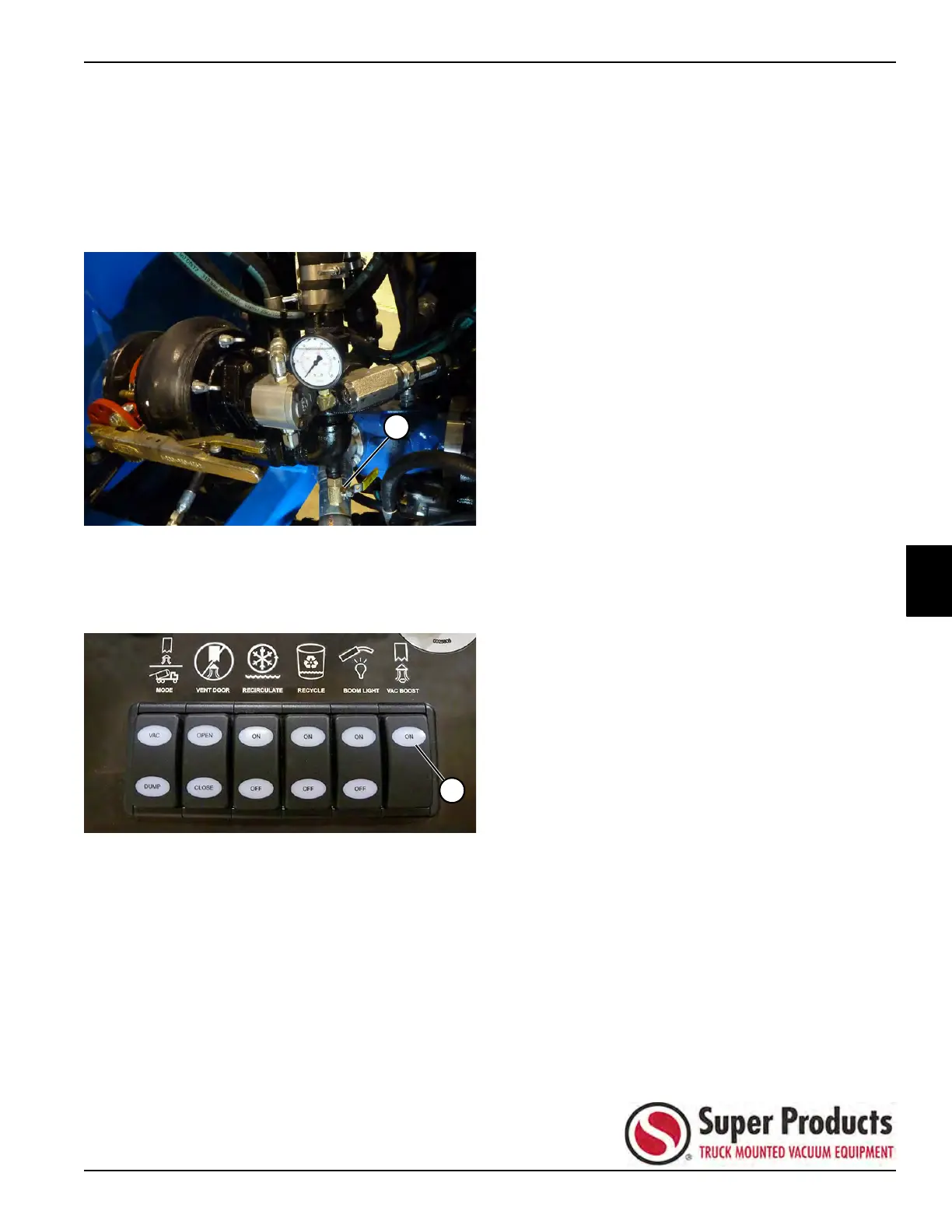

Figure 5-23
• With the vacuum running and the recycling
system off, press the VAC BOOST rocker
switch (6) to generate 18 in-Hg.
Figure 5-24
Vacuum pressure can be monitored at the front
control panel HMI screen by pressing the menu
button two times from the home screen.
• Open the drain valve on the elbow of the charge
pump (see Figure 5-23), allowing fresh air to be
sucked in, which will backflush the charge pump
and the oscillating filter screen.
