Supermicro C7Z170-SQ Motherboard User’s Manual
Hot Plug
This feature designates the SATA port specied for hot plugging. Set this
item to Enabled for hot-plugging support, which will allow the user to
replace a SATA disk drive without shutting down the system. The options
are Disabled and Enabled.
Spin Up Device
On an edge detect from 0 to 1, set this item to allow the PCH to start
a COMRESET initialization.
SATA Device Type
This feature congures the selected SATA port to support either a solid
state drive or hard disk drive. The options are Hard Disk Drive and
Solid Sate Drive.

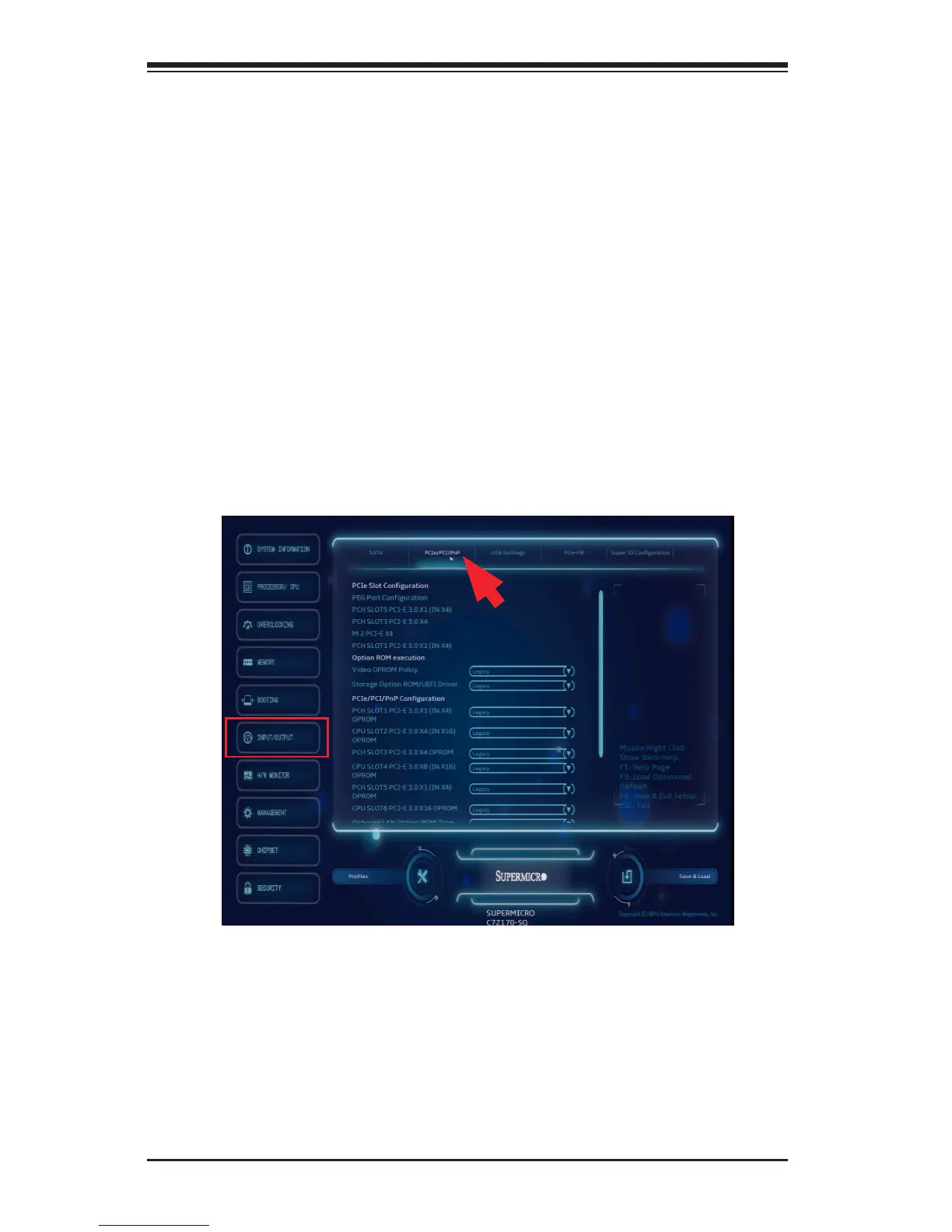

PCIe/PCI/PnP
PEG Port Configuration
PCH SLOT5 PCI-E 3.0 X1 (IN X4), PCH SLOT3 PCI-E 3.0 X4,
M.2 PCI-E X4, PCH SLOT1 PCI-E 3.0 X1 (IN X4)
PCI Express Root Port 20
This option controls the PCI Express root port. The options are En-
abled and Disabled.
To Next Page
