4-46
Supermicro C7Z170-SQ Motherboard User’s Manual

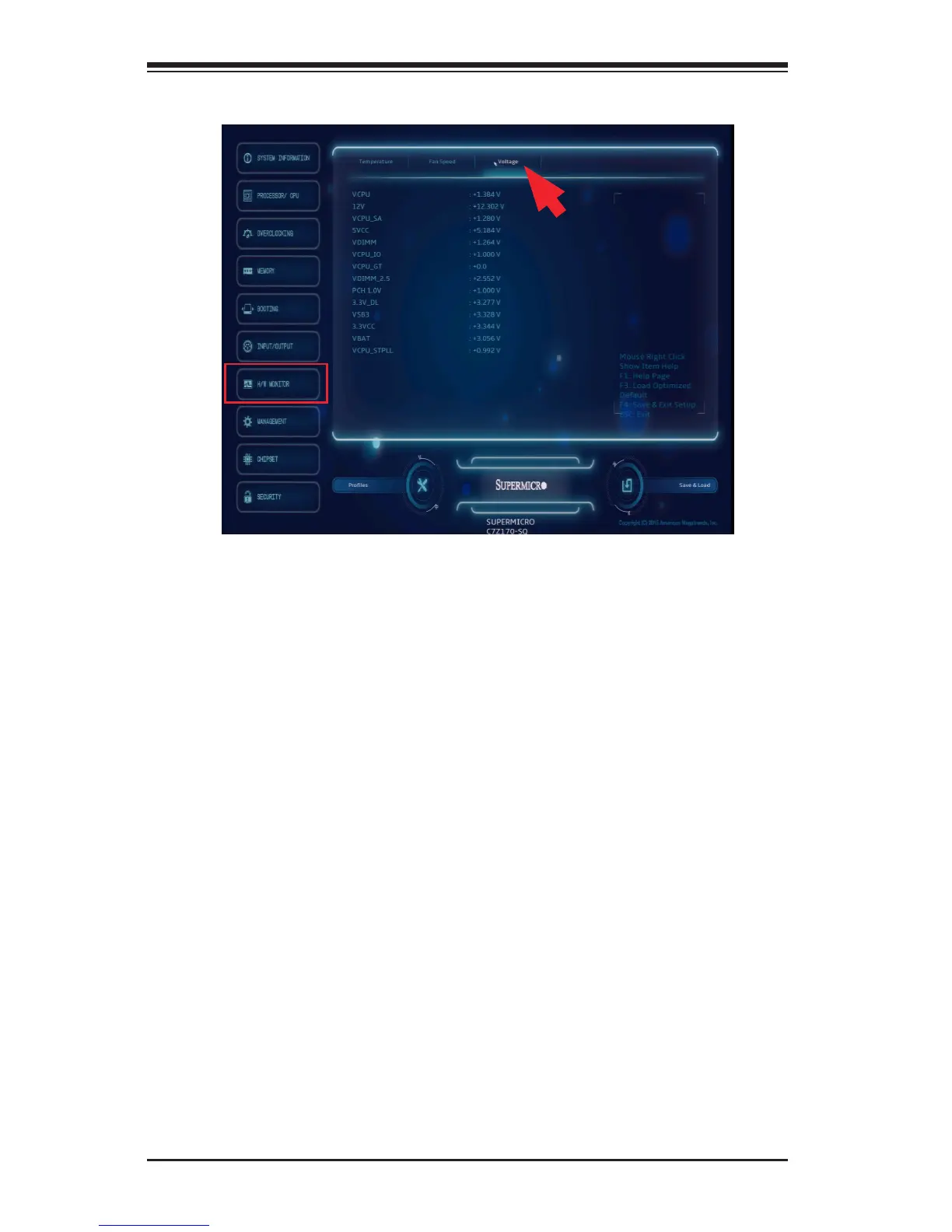

Voltage
The following items will be displayed:
• VCPU
• 12V
• VCPU_SA
• 5VCC
• VDIMM
• VCPU_IO
• VCPU_GT
• VDIMM_2.5
• PCH 1.0V
• 3.3V_DL
• VSB3
• 3.3VCC
• VBAT
• VCPU_STPLL
