Chapter 2: Installation
2-17
B
C
A

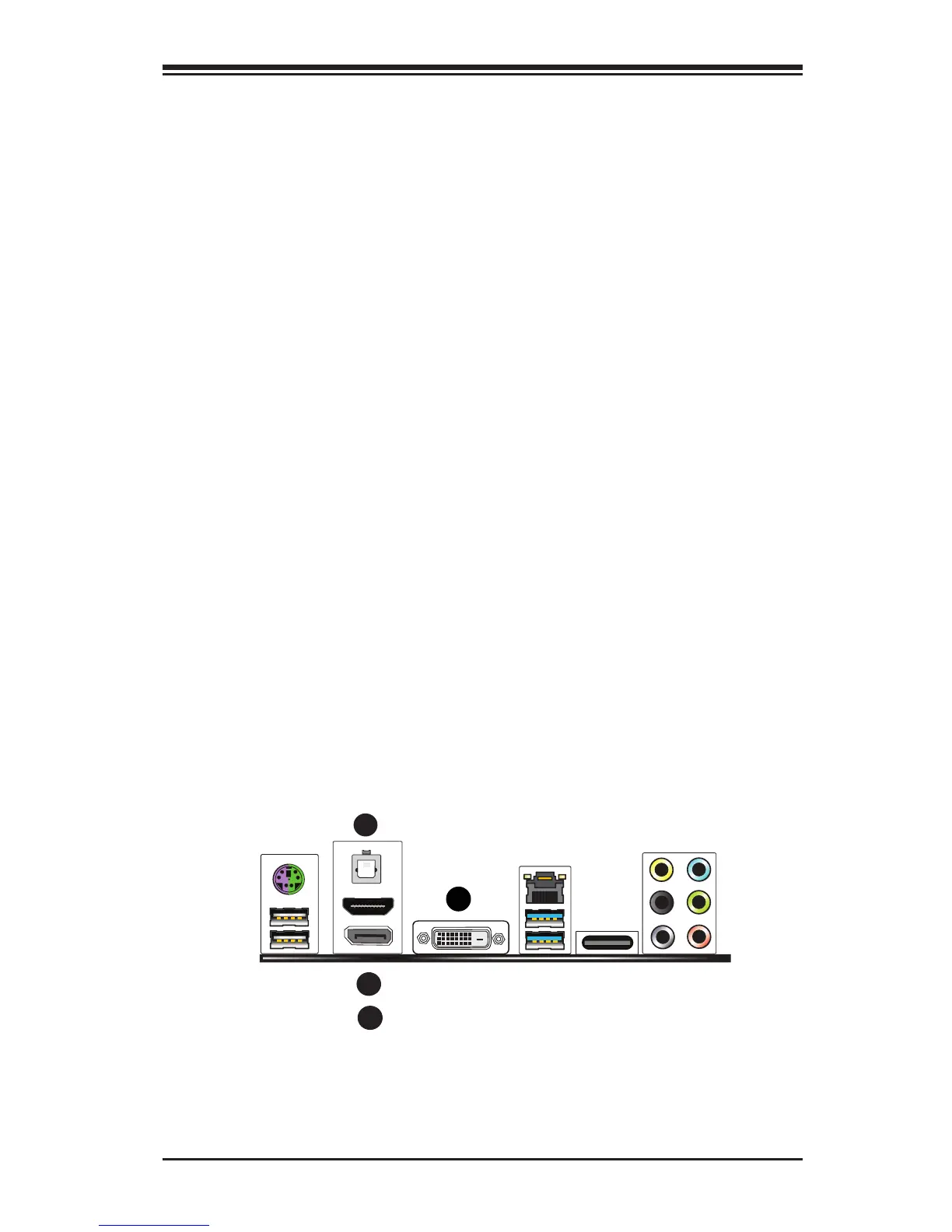

A. S/PDIF Port
B. HDMI Port
C. VESA Display Port
D. DVI-D
HDMI Port
One HDMI (High-Denition Multimedia Interface) is located on the I/O
backpanel. This connector is used to display both high denition video
and digital sound through an HDMI capable display, using a single HDMI
cable (not included).
S/PDIF Port
A S/PDIF port is located next to the USB ports 0/1 on the I/O backpanel.
Use this port to connect to a compatible S/PDIF optical audio device.
DVI-D Port
A DVI-D port is located on the I/O backpanel. Use this port to connect
to a compatible DVI (Digital Visual Interface) display.
VESA® DisplayPort™
DisplayPort, develped by the VESA consortium, delivers digital display at
a fast refresh rate. It can connect to virtually any display device using a
DisplayPort adapter for devices such as VGA, DVI or HDMI.
