Chapter 4: AMI BIOS
4-55

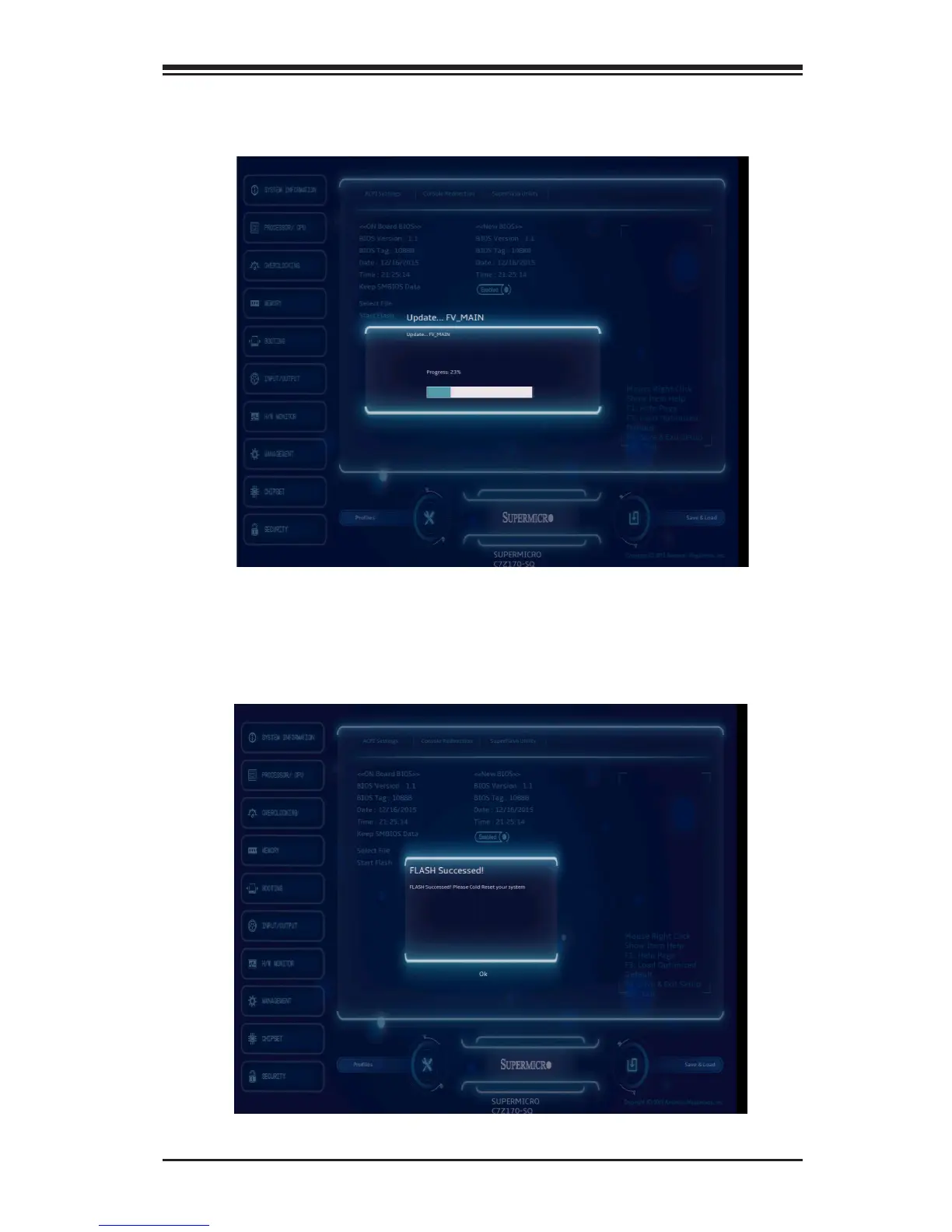

6.
Select
"Start
Flash"
to
ash
the
BIOS.
A
pop-up
message
will
ap
-
pear
to
show
the
progress
of
the
BIOS
ash.
7.
If
the
ash
is
successful,
a
pop-up
message
will
indicate
the
result.
Select
"OK"
to
complete
the
BIOS
ash
and
to
reboot
the
system.
Go
to
the
"SYSTEM
INFORMA
TION
-
Motherboard"
page
in
the
BIOS
Setup to check for the correct BIOS v
ersion.
