2-8
Supermicro X11SAE/X11SAE-F Motherboard User’s Manual

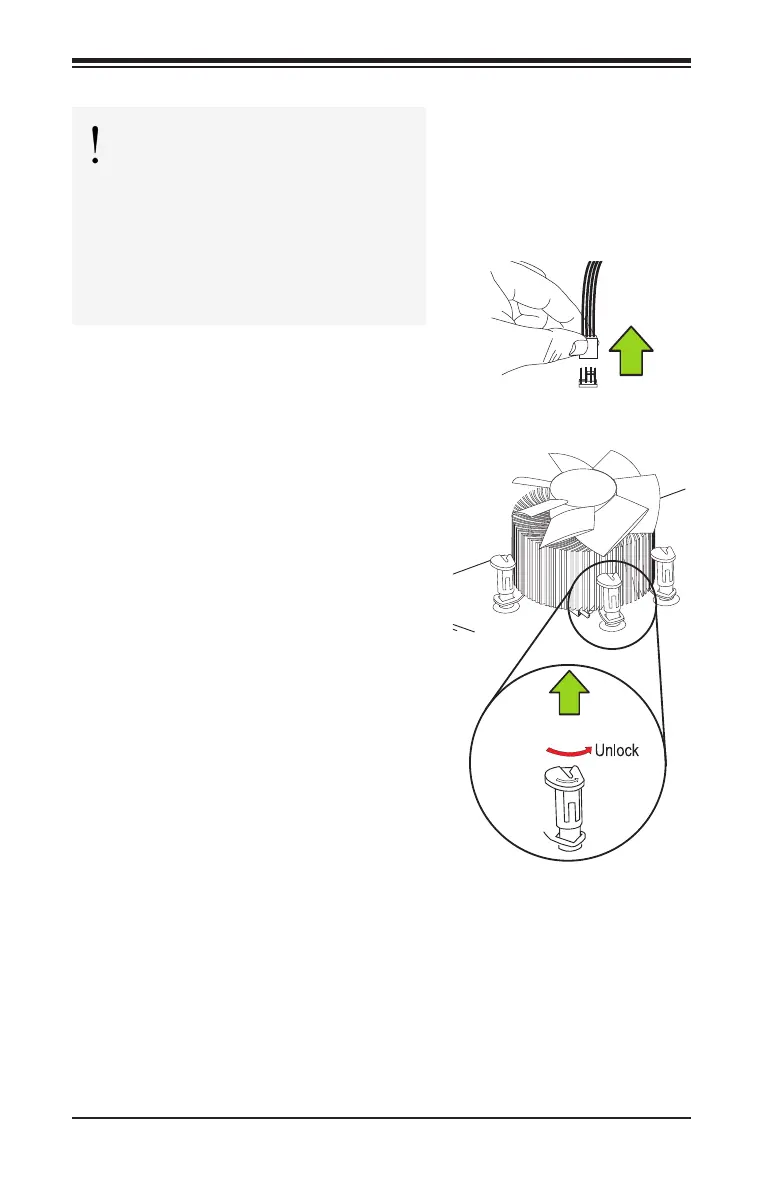

Removing the Heatsink
Attention! We do not recommend
that the CPU or the heatsink be
removed. However, if you do need
to remove the heatsink, please
follow the instructions below to re-
move the heatsink and to prevent
damage done to the CPU or other
components.
Active Heatsink Removal
1. Unplug the power cord from the
power supply.
2. Disconnect the heatsink fan wires
from the CPU fan header.
3. Use your nger tips to gently
press on the fastener cap and
turn it counterclockwise to make
a 1/4 (90
0
) turn, and pull the
fastener upward to loosen it.
4. Repeat Step 3 to loosen all fas-
teners from the mounting holes.
5. With all fasteners loosened, re-
move the heatsink from the CPU.
Unplug the
PWR cord
Pull Up
For the 1U passive heat sink, ask for SNK-P0046P (back plate is
included), for the 2U active heat sink, SNK-P0046A4.
To Next Page
