Supero X11SAE User Manual

Chapter 2: Installation
2-21
JBR1
JF1
JPW2
JPW1
SP1
B3
JD1
JBT1
JTBT1
JPI2C1
JSD1
JTPM1
JL1
JHD_AC1
JSTBY1
COM1
COM2
I-SATA7
I-SATA6
I-SATA5
I-SATA3
I-SATA1
I-SATA4
I-SATA2
I-SATA0
I-SGPIO2
I-SGPIO1
J23
XDP1
LEDM1
LED4
LED1
LED3
FAN5
FAN4
FAN2
FAN1
FAN3
JI2C1
JI2C2
JPAC1
JPL2
JPG1
JPB1
JPL1
JVR1
JLED1
JWD1
JPME2
MH10
MH12
MH11
1
1
1
1
1
1
1
1
1
1
1
1
1
X11SAE
REV: 1.01
MAC CODE
BAR CODE
DESIGNED IN USA
BIOS
LICENSE
BIOS RESTORE
UID
DVI/VGA
USB14/15
(3.1)
HDMI/DP
LAN1
USB8/9(3.0)
USB0/1
LAN2
SLOT2 PCI 33MHz
SLOT1 PCI 33MHz
CPU SLOT4 PCI-E 3.0 X8 (IN X16)
PCI-E 3.0 X1
PCI-E 3.0 X1PCH SLOT3
PCI-E 3.0 X16
PCH SLOT5
CPU SLOT6
PCH SLOT7 PCI-E 3.0 X1
USB6/7
USB4/5
USB2/3
USB12/13(3.0)
USB10/11(3.0)
M.2 PCI-E 3.0 X4
SLOT1 PCI 33MHz
AUDIO FP
DIMMA2
DIMMA1
DIMMB1
DIMMB2
HD AUDIO
ALWAYS POPULATE BLUE SOCKET FIRST
UNB ECC/NON-ECC DDR4 DIMM REQUIRED
CPU

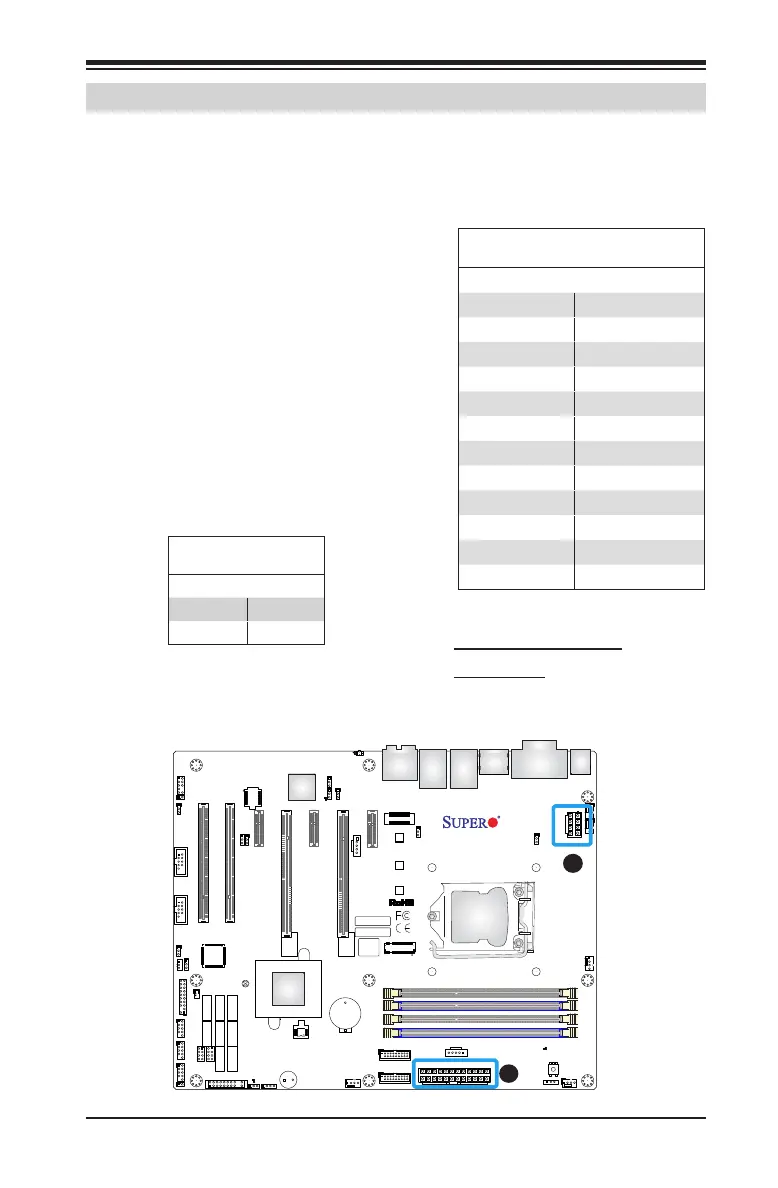

2-7 Connecting Cables
This section provides brief descriptions and pin-out denitions for on-
board headers and connectors. Be sure to use the correct cable for each
header or connector.
A. 24-Pin ATX Main PWR
B. 8-Pin PWR
ATX Power 24-pin Connector
Pin Denitions (JPW1)
Pin# Denition Pin # Denition
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 COM 3 COM
16 PS_ON 4 +5V
17 COM 5 COM
18 COM 6 +5V
19 COM 7 COM
20 Res (NC) 8 PWR_OK
21 +5V 9 5VSB
22 +5V 10 +12V
23 +5V 11 +12V
24 COM 12 +3.3V
(Required)
12V 8-pin Power Connec-
tor Pin Denitions
Pins Denition
1 through 4 Ground
5 through 8 +12V
ATX Main PWR & CPU PWR
Connectors (JPW1 & JPW2)
The 24-pin main power connector (JPW1)
is used to provide power to the moth-
erboard. The 8-pin CPU PWR connector
(JPW2) is also required for the processor.
These power connectors meet the SSI
EPS 12V specication. See the table on
the right for pin denitions.
A
B
