Supero X11SAE - VGA Port; DVI-D Port; VESA Displayport; HDMI Port

Chapter 2: Installation
2-17
B
C
A

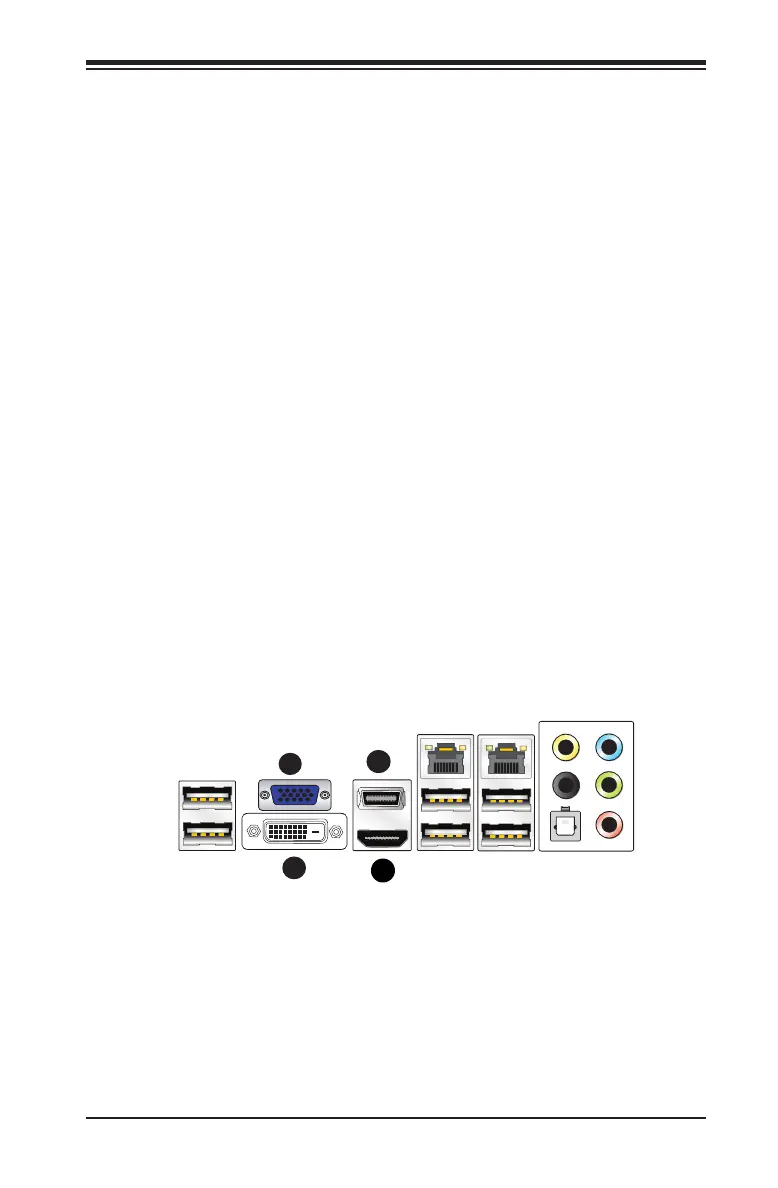

A. VGA Port
B. DVI-D Port
C. VESA DisplayPort 1.2
D. HDMI 1.4 Port
HDMI Port
One HDMI (High-Denition Multimedia Interface) is located on the I/O
back panel. This connector is used to display both high denition video
and digital sound through an HDMI capable display, using a single HDMI
cable (not included).
DVI-D Port
A DVI-D port is located on the I/O back panel. Use this port to connect
to a compatible DVI (Digital Visual Interface) display.
VESA® DisplayPort™
DisplayPort, develped by the VESA consortium, delivers digital display at
a fast refresh rate. It can connect to virtually any display device using a
DisplayPort adapter for devices such as VGA, DVI or HDMI.
D
VGA Port
A legacy 15-pin VGA port port is located on the I/O back panel to provide
backward compatibility. Use this port to connect to a compatible VGA
monitor. Supported on the X11SAE-F only.
