Supero X11SAE - Standby Power Header (JSTBY1); PCI-E M.2 Connector (PCI-E M.2)

2-26
Supermicro X11SAE/X11SAE-F Motherboard User’s Manual
JBR1
JF1
JPW2
JPW1
SP1
B3
JD1
JBT1
JTBT1
JPI2C1
JSD1
JTPM1
JL1
JHD_AC1
JSTBY1
COM1
COM2
I-SATA7
I-SATA6
I-SATA5
I-SATA3
I-SATA1
I-SATA4
I-SATA2
I-SATA0
I-SGPIO2
I-SGPIO1
J23
XDP1
LEDM1
LED4
LED1
LED3
FAN5
FAN4
FAN2
FAN1
FAN3
JI2C1
JI2C2
JPAC1
JPL2
JPG1
JPB1
JPL1
JVR1
JLED1
JWD1
JPME2
MH10
MH12
MH11
1
1
1
1
1
1
1
1
1
1
1
1
1
X11SAE
REV: 1.01
MAC CODE
BAR CODE
DESIGNED IN USA
BIOS
LICENSE
BIOS RESTORE
UID
DVI/VGA
USB14/15
(3.1)
HDMI/DP
LAN1
USB8/9(3.0)
USB0/1
LAN2
SLOT2 PCI 33MHz
SLOT1 PCI 33MHz
CPU SLOT4 PCI-E 3.0 X8 (IN X16)
PCI-E 3.0 X1
PCI-E 3.0 X1PCH SLOT3
PCI-E 3.0 X16
PCH SLOT5
CPU SLOT6
PCH SLOT7 PCI-E 3.0 X1
USB6/7
USB4/5
USB2/3
USB12/13(3.0)
USB10/11(3.0)
M.2 PCI-E 3.0 X4
SLOT1 PCI 33MHz
AUDIO FP
DIMMA2
DIMMA1
DIMMB1
DIMMB2
HD AUDIO
ALWAYS POPULATE BLUE SOCKET FIRST
UNB ECC/NON-ECC DDR4 DIMM REQUIRED
CPU

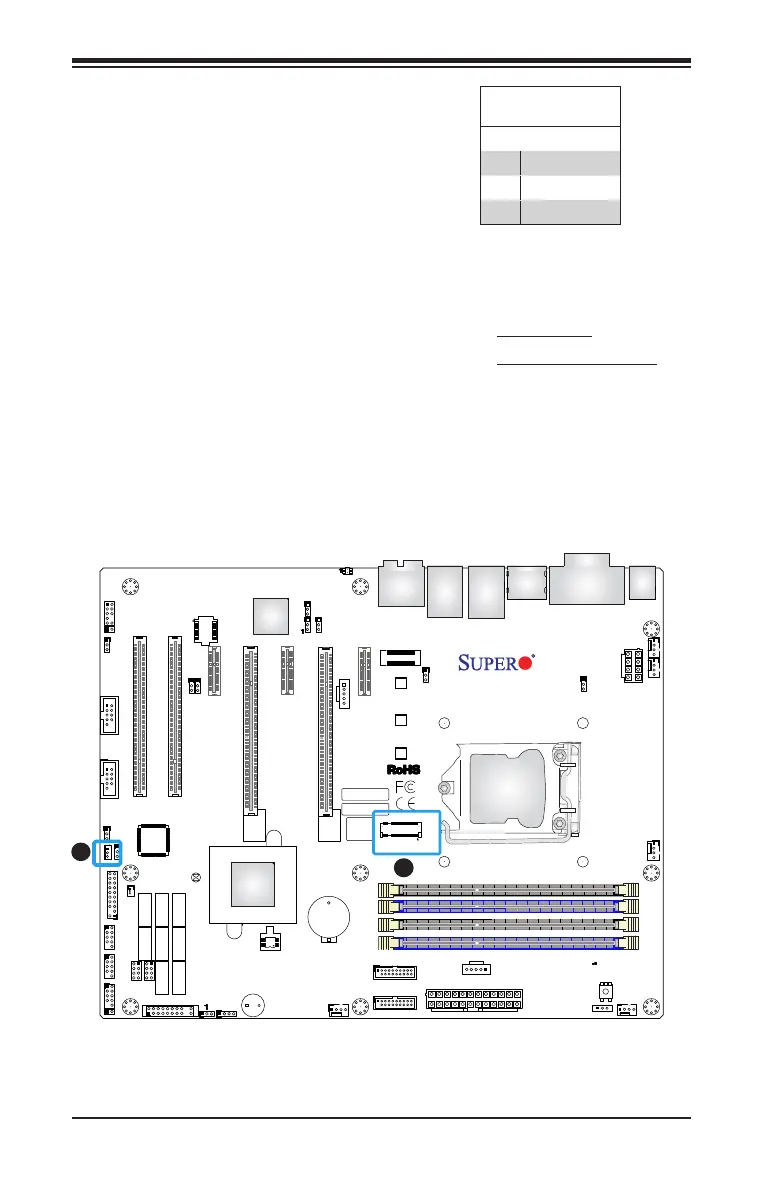

A. STBY PWR
B. PCI-E M.2 Connector
A
B
Standby Power Header (JSTBY1)
The Standby Power header is located at
JSTBY1 on the motherboard. See the
table on the right for pin denitions.
Standby Power
Pin Denitions
Pin# Denition
1 +5V Standby
2 Ground
3 N/A
PCI-E M.2 Connector (PCI-E M.2)
The PCI-E M.2 connector is for de-
vices such as memory cards, wireless
adapters, etc. These devices must
conform to the PCIE M.2 specica-
tions (fromerly known as NGFF). This
particular PCIe M.2 supports M-Key
(PCIe3.0 x4) storage card only.
