Supero X11SAE User Manual

Chapter 2: Installation
2-31
JBR1
JF1
JPW2
JPW1
SP1
B3
JD1
JBT1
JTBT1
JPI2C1
JSD1
JTPM1
JL1
JHD_AC1
JSTBY1
COM1
COM2
I-SATA7
I-SATA6
I-SATA5
I-SATA3
I-SATA1
I-SATA4
I-SATA2
I-SATA0
I-SGPIO2
I-SGPIO1
J23
XDP1
LEDM1
LED4
LED1
LED3
FAN5
FAN4
FAN2
FAN1
FAN3
JI2C1
JI2C2
JPAC1
JPL2
JPG1
JPB1
JPL1
JVR1
JLED1
JWD1
JPME2
MH10
MH12
MH11
1
1
1
1
1
1
1
1
1
1
1
1
1
X11SAE
REV: 1.01
MAC CODE
BAR CODE
DESIGNED IN USA
BIOS
LICENSE
BIOS RESTORE
UID
DVI/VGA
USB14/15
(3.1)
HDMI/DP
LAN1
USB8/9(3.0)
USB0/1
LAN2
SLOT2 PCI 33MHz
SLOT1 PCI 33MHz
CPU SLOT4 PCI-E 3.0 X8 (IN X16)
PCI-E 3.0 X1
PCI-E 3.0 X1PCH SLOT3
PCI-E 3.0 X16
PCH SLOT5
CPU SLOT6
PCH SLOT7 PCI-E 3.0 X1
USB6/7
USB4/5
USB2/3
USB12/13(3.0)
USB10/11(3.0)
M.2 PCI-E 3.0 X4
SLOT1 PCI 33MHz
AUDIO FP
DIMMA2
DIMMA1
DIMMB1
DIMMB2
HD AUDIO
ALWAYS POPULATE BLUE SOCKET FIRST
UNB ECC/NON-ECC DDR4 DIMM REQUIRED
CPU

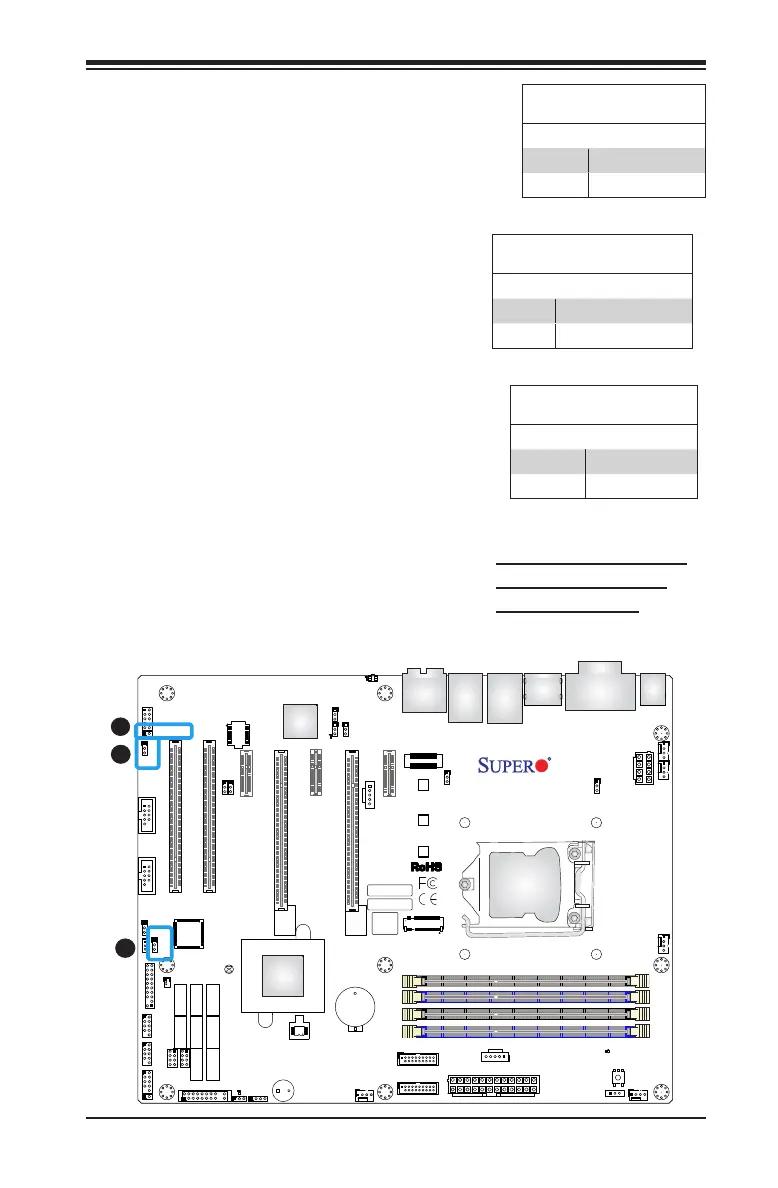

A. HD Audio Enable/Disable
B. Audio Enable/Disable
C. Watch Dog Enable
Audio Enable/Disable
Jumper Settings
Both Jumpers Denition
Pins 1-2 Enabled (Default)
Pins 2-3 Disabled
Audio Enable (JPAC1)
JPAC1 allows you to enable or disable
the onboard audio support. The default
position is on pins 1-2 to enable onboard
audio connections. See the table on the
right for jumper settings.
A
B
Watch Dog Enable/Disable
Watch Dog (JWD1) is a system moni-
tor that can reboot the system when a
software application hangs. Close Pins
1-2 to reset the system if an applica-
tion hangs. Close pins 2-3 to generate
a non-maskable interrupt signal for the
application that hangs. See the table on
the right for jumper settings.
Watch Dog
Jumper Settings
Jumper Setting Denition
Pins 1-2 Reset (Default)
Pins 2-3 NMI
HD Audio Enable (JHD_AC1)
JHD_AC1 allows you to enable or dis-
able the onboard High Denition audio
support. See the table on the right for
jumper settings.
HD Audio Enable/Disable
Jumper Settings
Jumper Denition
Open Enabled (Default)
Short Disabled
C
