2-16
Supermicro X11SAE/X11SAE-F Motherboard User’s Manual
Ethernet Port / IPMI Port
Two Gigabit Ethernet ports (LAN) are
located on the I/O back panel to provide
network connections. This port will ac-
cept RJ45 type cables. LAN2 is shared
with an IPMI port on the X11SAE-F.
Note: Please refer to the LED Indica-
tor Section for LAN LED information.
LAN Ports
Pin Definition
Pin# Denition
1 P2V5SB 10 SGND
2 TD0+ 11 Act LED
3 TD0- 12 P3V3SB
4 TD1+ 13 Link 100 LED
(Green, +3V3SB)
5 TD1- 14 Link 1000 LED
(Yellow, +3V3SB)
6 TD2+ 15 Ground
7 TD2- 16 Ground
8 TD3+ 17 Ground
9 TD3- 18 Ground
(NC: No Connection)

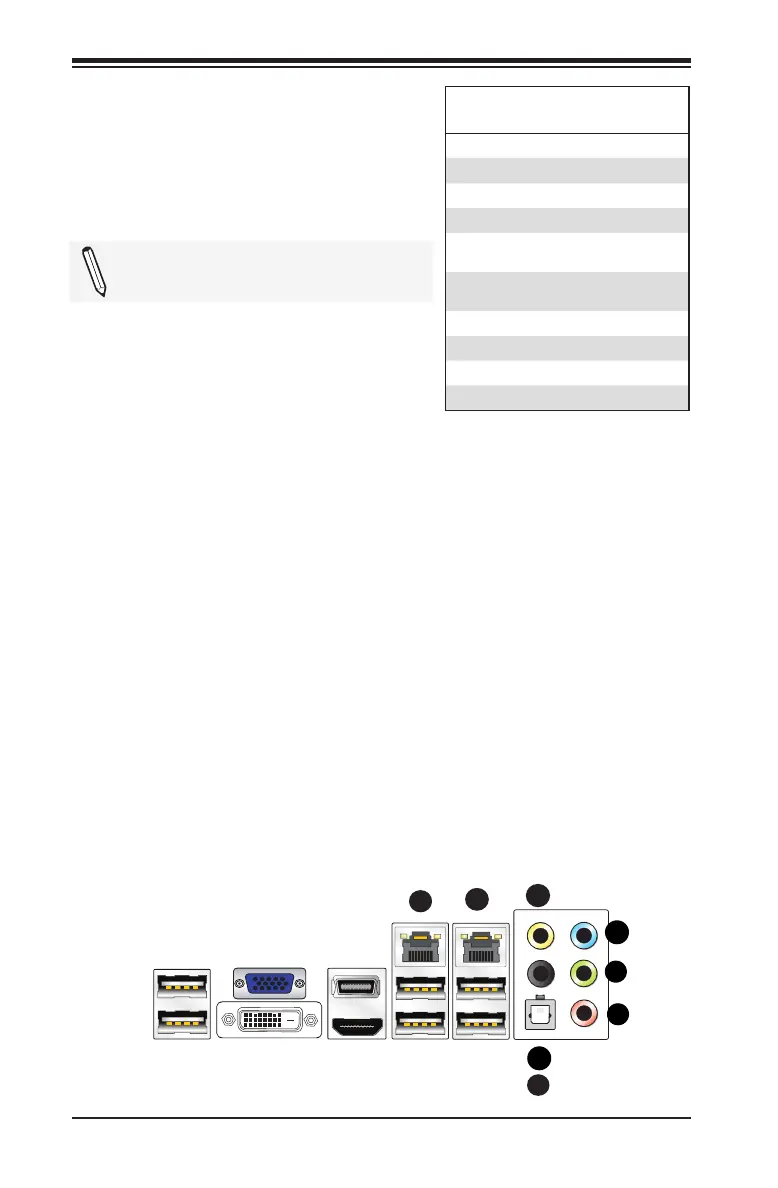

A. LAN1
B. LAN2
C. Center/LFE Out
D. Surround Out
E. SPDIF Out
F. Line In
G. Line Out
H. Mic In
Back Panel High Denition Audio
(HD Audio)
This motherboard features a 7.1+2
Channel High Denition Audio (HDA) co-
dec that provides 10 DAC channels. The
HD Audio connections simultaneously
supports multiple-streaming 7.1 sound
playback with 2 channels of independent
stereo output through the front panel
stereo out for front, rear, center and
subwoofer speakers. Use the Advanced
software included in the CD-ROM with
your motherboard to enable this func-
tion.
A
E
B
F
G
C
D
H
