7-26 ELECTRICAL SYSTEM

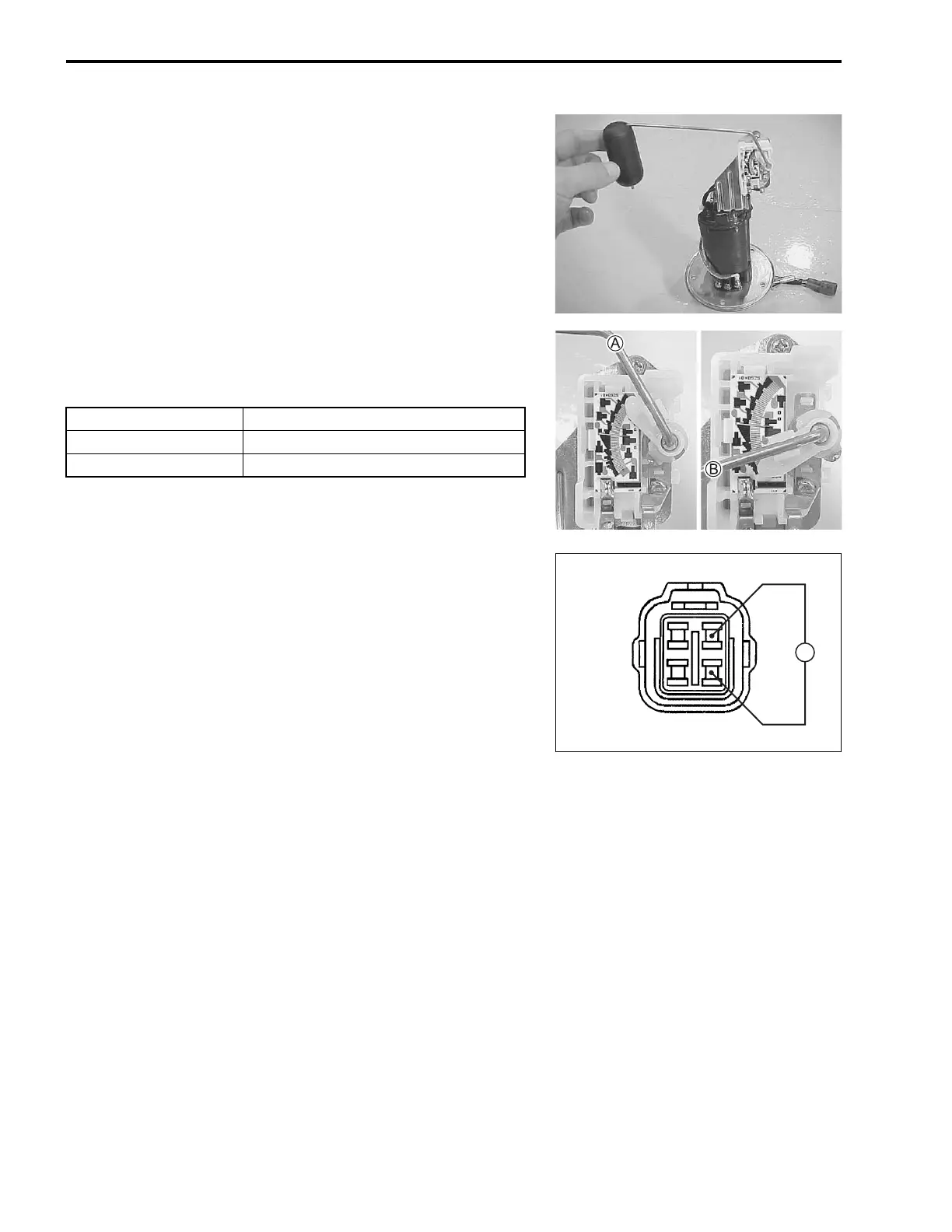

FUEL LEVEL GAUGE INSPECTION
• Remove the fuel tank. (!4-52)
• Remove the fuel pump. (!4-55)
Measure the resistance at each fuel level gauge float position. If
the resistance is incorrect, replace the fuel level gauge with a
new one.
# 09900-25008: Multi circuit tester set
( Tester knob indication: Resistance (Ω
ΩΩ
Ω)
• Remount the fuel pump. (!4-58)
Float position Resistance
A “F” (Full) Approx. 4 Ω
B “E” (Empty)
Approx. 182 Ω
Ω
