Suzuki GF60A - Upper Oil Seal Housing Removal and Installation

1D-8 Power Unit Mechanical:
k) To free the electric parts holder (35), remove the
cable clamps (36) from electric parts holder by
releasing clamp’s lock.
Installation
Installation is reverse order.
Perform the following final assembly checks to ensure
proper and safe operation.
• All parts removed have been returned to their original
positions.
• Wire routing matches service manual illustration.
Refer to “Wiring Harness Routing Diagram” in Section
4A (Page 4A-4) and “Fuel Hose Routing” in Section
4B (Page 4B-1).

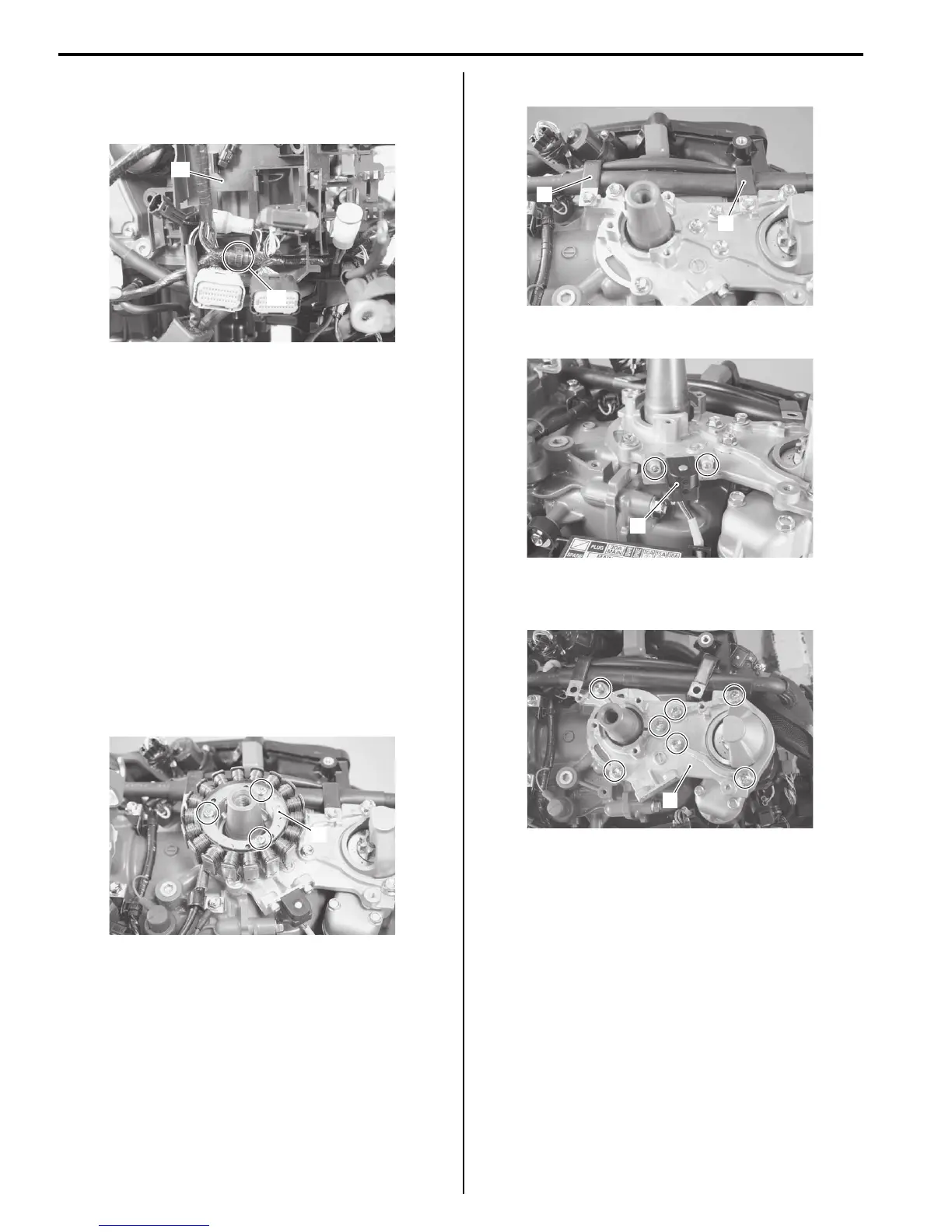

Upper Oil Seal Housing Removal and
Installation
ZAJ6111406031
Removal
1) Remove the battery charge coil (1).
Refer to “Battery Charge Coil Removal and
Installation” in Section 1K (Page 1K-5).
2) Remove the bolts securing hose clamps (2).
3) Remove the screws and CKP sensor (3).
4) Remove the seven bolts securing upper oil seal
housing (4), then remove the upper oil seal housing.
36
35
IAJ611140066-01
1
IAJ611140067-01
2
2
IAJ611140068-01
3
IAJ611140069-01
4
IAJ611140070-01
