Suzuki GF60A - Engine Holder; Oil Pan; Driveshaft Housing; Mounts Components

Housing and Bracket: 2A-11

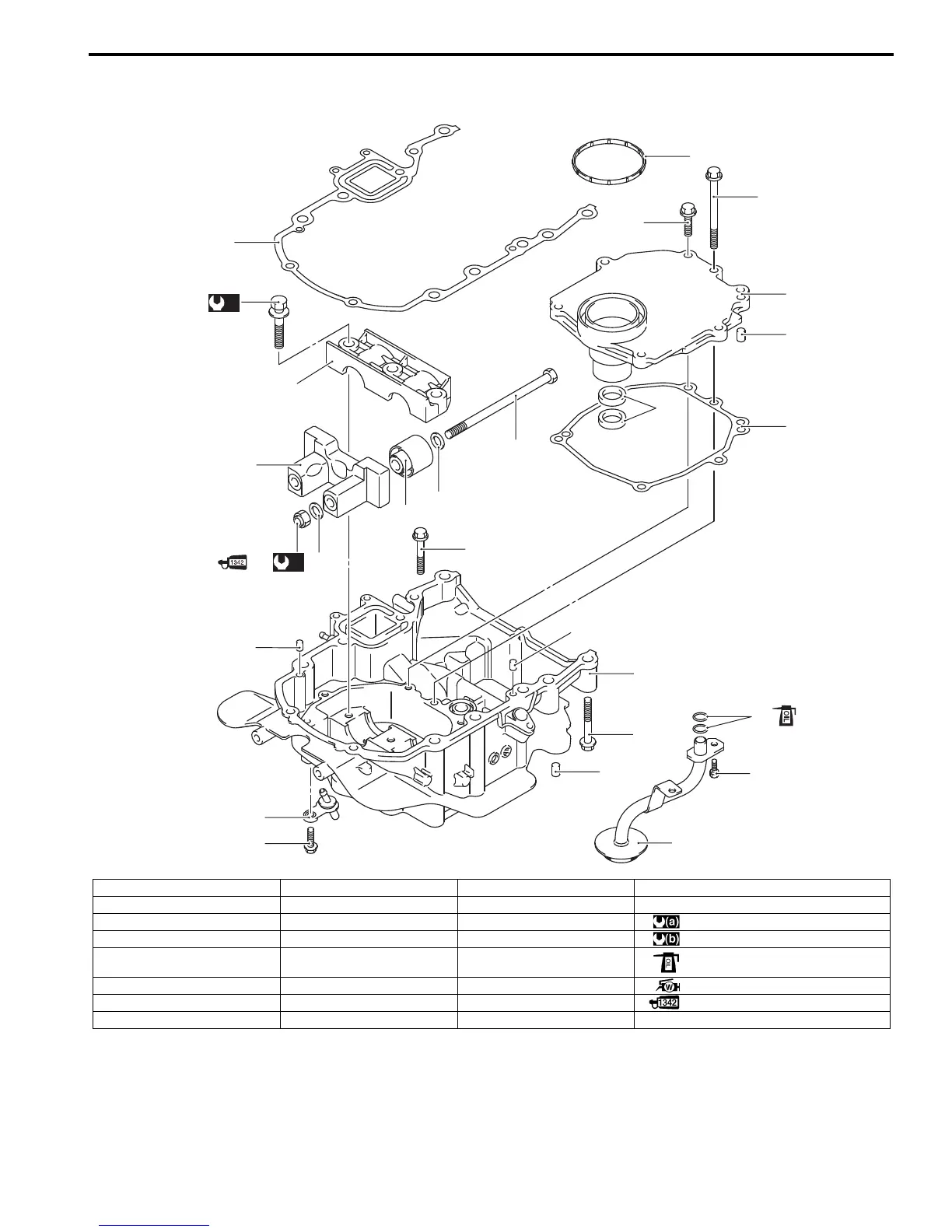

Engine Holder / Oil Pan / Driveshaft Housing / Mounts Components
ZAJ6112106003
9
15
2
3
14
17
18
19
13
16
7
11
22
23
21
8
12
24
26
25
6
4
5
1
11
(b)
10
(a)
20
IAJ611210030-01
1. Gasket 9. Dowel pin 17. Washer 25. Oil strainer
2. Mount case cover 10. Bolt 18. Upper mount 26. Bolt
3. Gasket 11. Dowel pin 19. Washer : 60 N·m (6.0 kgf-m, 43.4 lbf-ft)
4. Bolt 12. Dowel pin 20. Nut : 50 N·m (5.0 kgf-m, 36.0 lbf-ft)
5. Bolt 13. Upper mount cover 21. Bolt : Apply engine oil.
6. Oil seal 14. Bolt 22. Water indicator : Apply SUZUKI water resistant grease.
7. Gasket 15. Upper mount Bolt 23. Bolt : Apply SUZUKI thread lock 1342.
8. Engine holder 16. Upper thrust mount 24. O-ring
