1D-10 Power Unit Mechanical:

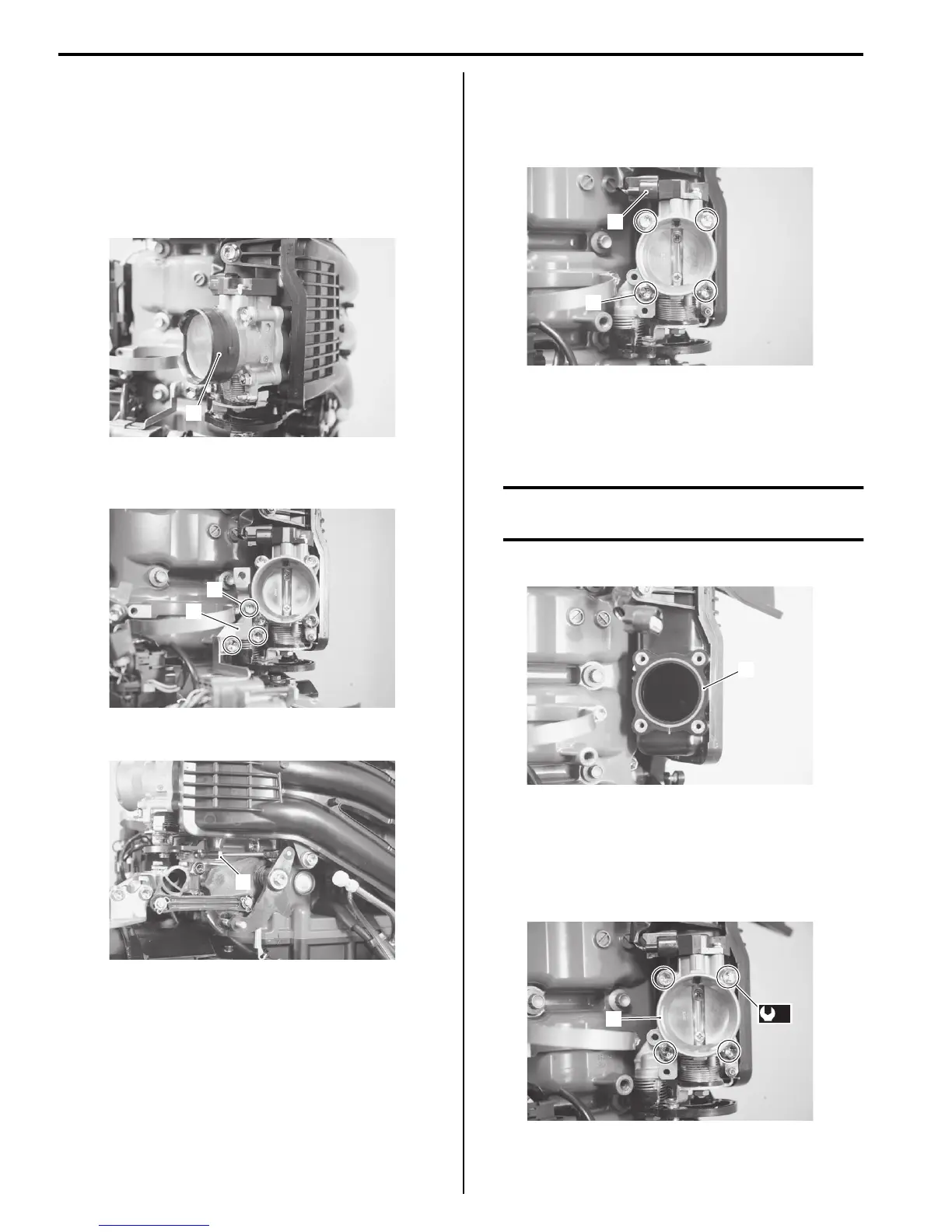

Throttle Body Removal and Installation
ZAJ6111406008
Removal
1) Remove the starter motor and air intake silencer
case.
Refer to “Starter Motor Removal and Installation” in
Section 1I (Page 1I-6).
2) Remove the silencer holder (1).
3) Remove the three bolts (2) and remote control
harness connector holder (3).
4) Remove the throttle link rod (4) from throttle body.
5) Remove the four bolts (5) securing throttle body to
intake manifold, then detach the throttle body.
6) Disconnect the MAP / throttle position / IAT sensor
lead wire connector (6) at sensor.
Installation
Installation is reverse order of removal with special
attention to the following steps.
Do not reuse gaskets, always replace with
new one.
• Clean mating surface and install the seal ring (1).
• Install the throttle body (2), then securely tighten the
four throttle body bolts to specified torque.
Tightening torque
Throttle body bolt (a): 10 N·m (1.0 kgf-m, 7.2 lbf-
ft)
3
2
5
6
1
