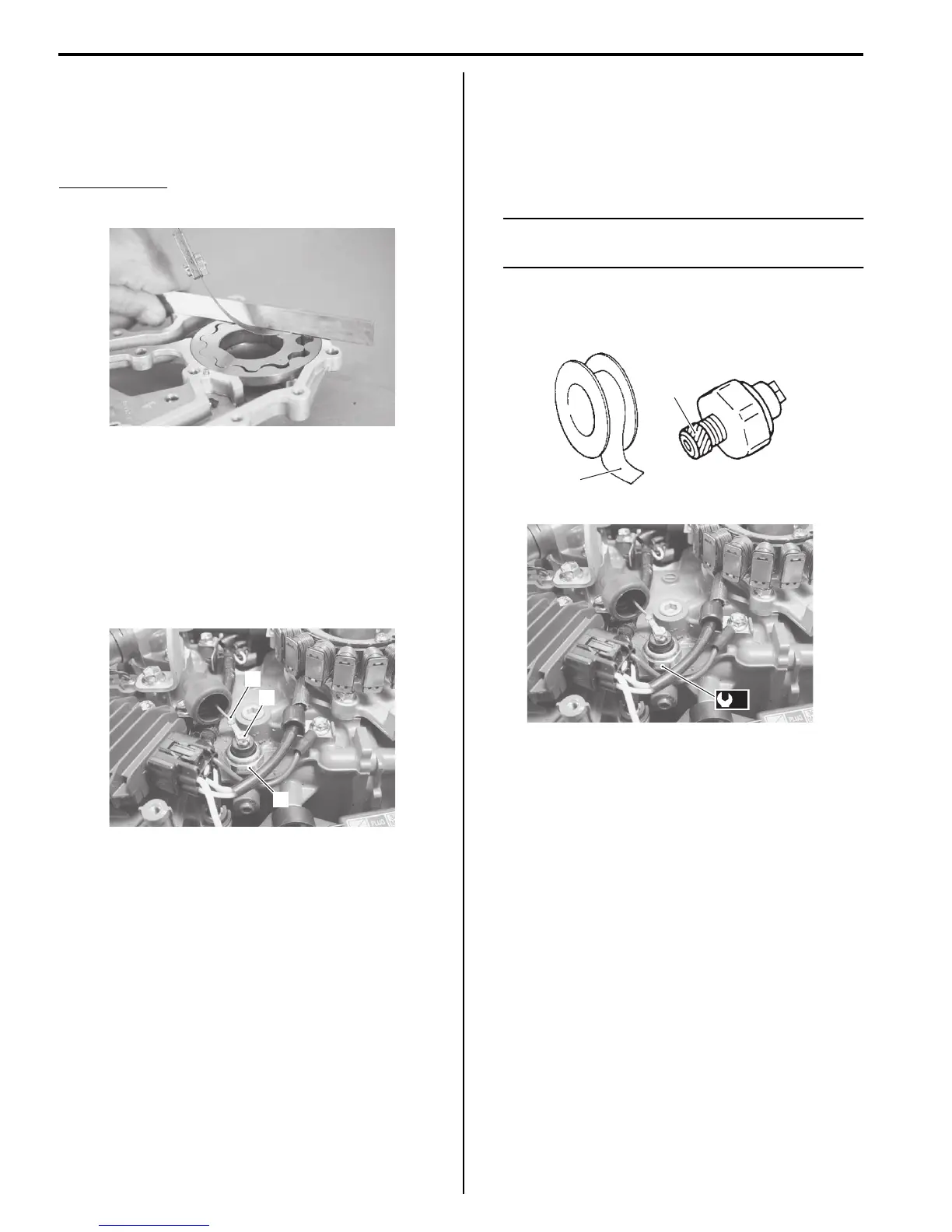

1E-5 Power Unit Lubrication:
Measuring Side Clearance
Using straightedge and feeler gauge, measure side
clearance.
If measurement is not within specifications, replace oil
pump assembly.
Side clearance
Service limit: 0.15 mm (0.006 in.)
Oil Pressure Switch Removal and Installation
ZAJ6111506004
Removal
1) Remove the ring gear cover and flywheel.
Refer to “Flywheel Removal and Installation” in
Section 1K (Page 1K-4).
2) Loosen screw (1) and disconnect blue lead wire (2)
from oil pressure switch (3).
3) Remove oil pressure switch from cylinder block.
Installation
Installation is reverse order of removal with special
attention to the following steps.
• Before installing oil pressure switch, wrap screw
threads with sealing tape (1) then tighten switch to
specified torque.
NOTE
Cut off any excess sealing tape from switch
threads before installation.
Tightening torque
Oil pressure switch (a): 13 N·m (1.3 kgf-m, 9.5 lbf-
ft)
• Start engine and check oil pressure switch for oil
leakage.
Reseal switch if oil leakage is found.
1
