1D-14 Power Unit Mechanical:
Power Unit Removal and Installation
ZAJ6111406010

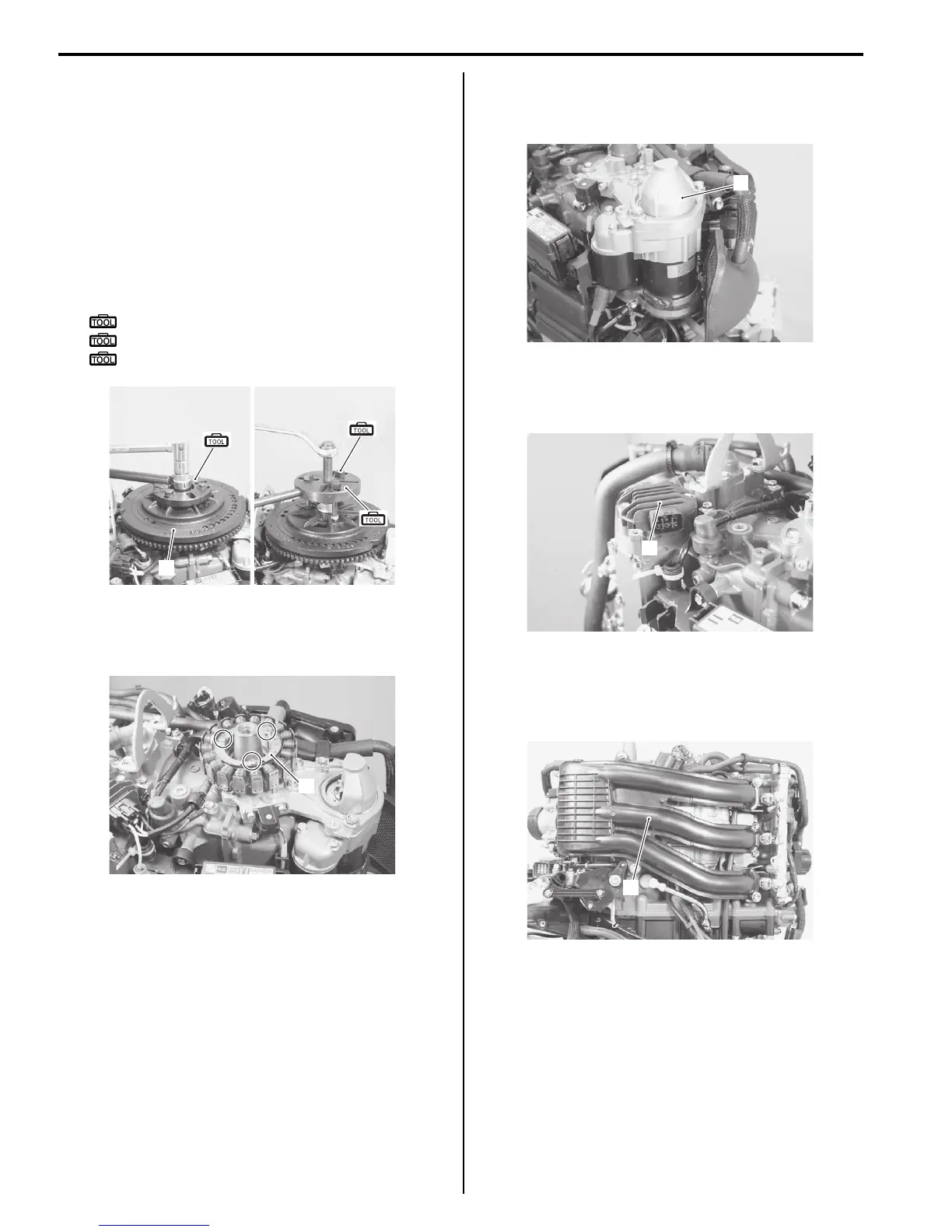

Removal
1) Relieve fuel pressure.
Refer to “Fuel Pressure Relief Procedure” in Section
1G (Page 1G-15).
2) Drain engine oil.
3) Disconnect battery cables from battery.
4) Remove the flywheel (1).
Refer to “Flywheel Removal and Installation” in
Section 1K (Page 1K-4).
Special tool
: 09930–48720 (Flywheel holder)
: 09930–39411 (Flywheel remover)
: 09930–39420 (Flywheel remover bolts)
5) Remove the battery charge coil (2).
Refer to “Battery Charge Coil Removal and
Installation” in Section 1K (Page 1K-5).
6) Remove the starter motor (3).
Refer to “Starter Motor Removal and Installation” in
Section 1I (Page 1I-6).
7) Remove the bolts and rectifier/regulator (4).
Refer to “Rectifier/Regulator Removal and
Installation” in Section 1K (Page 1K-6).
8) Remove the throttle body, fuel injectors and intake
manifold assembly (5).
Refer to “Intake Manifold Removal and Installation”
(Page 1D-11).
