Suzuki GF60A - Tiller Handle Disassembly and Assembly

Housing and Bracket: 2A-9
Tiller Handle Disassembly and Assembly
ZAJ6112106016

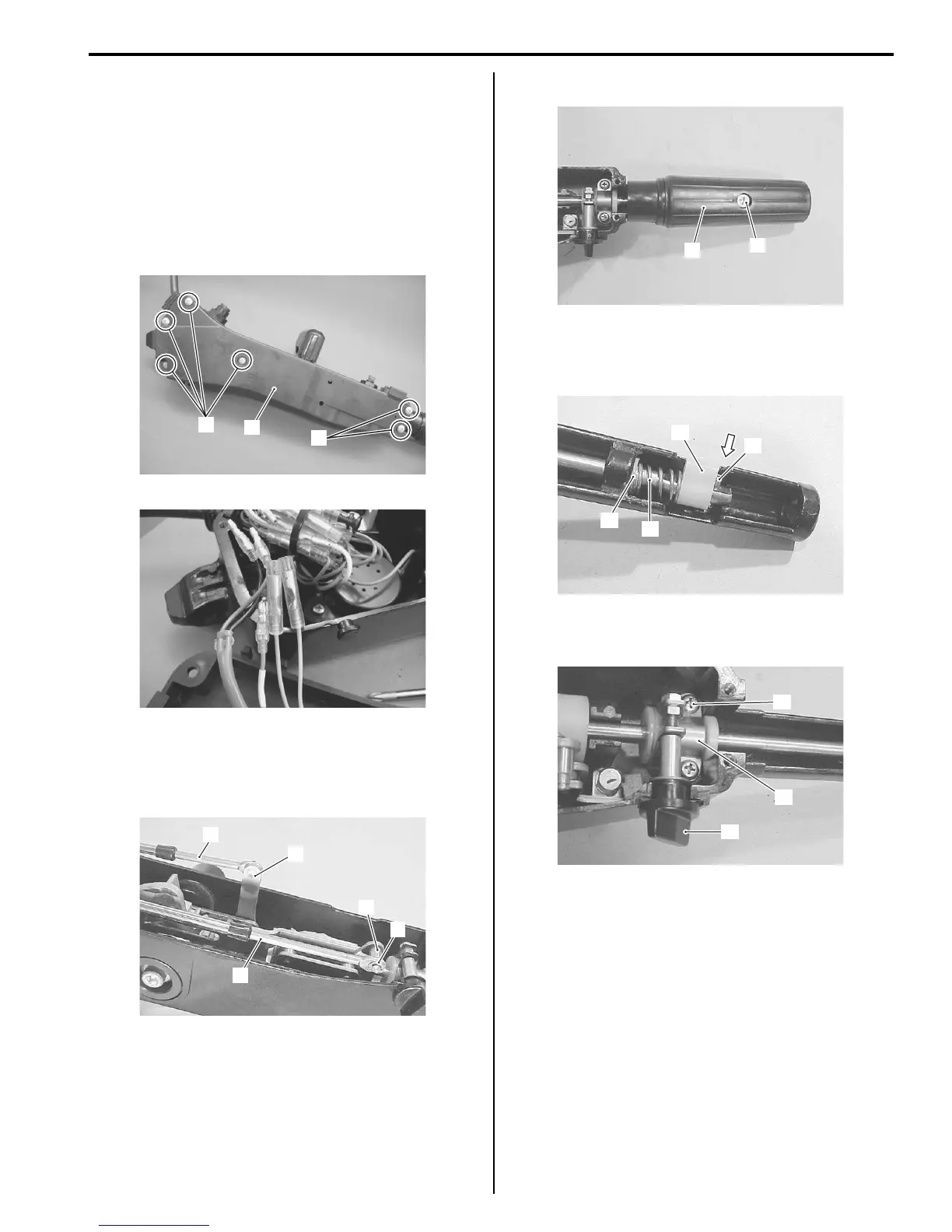

Disassembly
1) Remove the tiller handle.
Refer to “Tiller Handle Removal and Installation (TH
model)” (Page 2A-3).
2) Remove the six screws (1) and take off tiller handle
lower cover (2).
Disconnect emergency stop switch lead connector
and PTT switch lead wire connector.
3) Remove the E-ring (3) and throttle cable (4) from
throttle arm (5).
Remove the shift cable (6) from the shift gear
assembly (7) in the same manner.
4) Remove the screw (8) and handle grip (9).
5) Drive out the handle rod stopper pin (10), then pull
out rod stopper (11), spring (12) and handle rod bush
(13).
6) Loosen the handle grip adjuster (14). Remove the
screws (15) and handle rod plate (16).
2
1
1
IAJ011210022-01
IAJ011210023-01
3
5
6
7
4
IAJ011210024-01
8
9
IAJ011210025-01
10
11
12
13
IAJ011210026-01
14
15
16
IAJ011210027-01
