Suzuki GF60A - Power Trim and Tilt Unit Components

Power Trim and Tilt: 2B-16

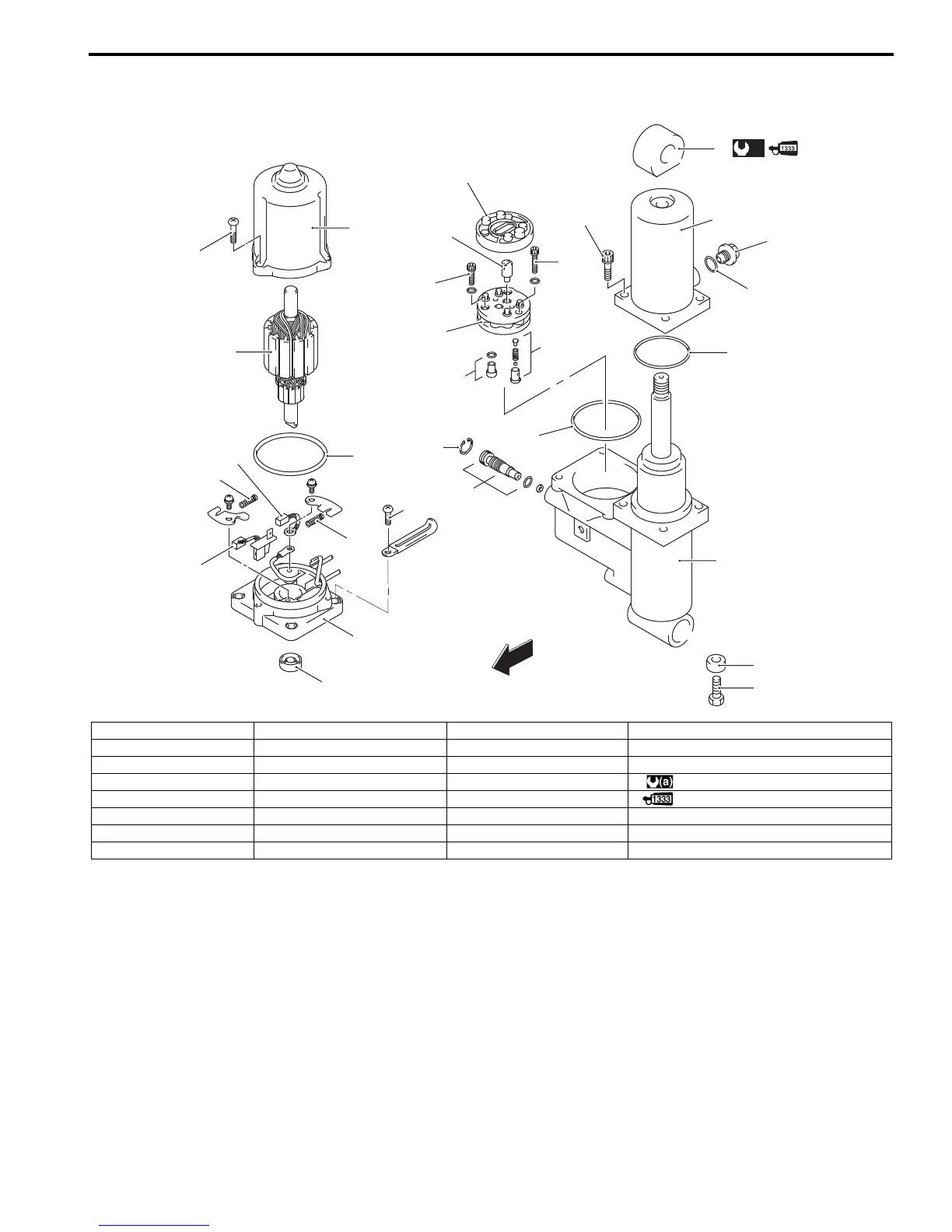

Power Trim and Tilt Unit Components
ZAJ6112206006
FWDFW
D
(a)
1
2
3
5
6
7
8
9
10
4
20
20
17
19
23
25
26
27
15
24
18
22
21
11
12
12
13
13
16
14
IAJ611220008-01
1. Joint 9. Screw 17. Drive joint 25. Circlip
2. Tank 10. O-ring 18. Filter 26. Anode
3. Plug 11. Armature 19. Gear pump 27. Bolt
4. O-ring 12. Brush 20. Screw : 45 N·m (4.5 kgf-m, 32.5 lbf-ft)
5. Bolt 13. Spring 21. Down pressure valve : Apply thread lock to the thread area.
6. O-ring 14. Brush holder 22. Up pressure valve
7. Manifold assembly 15. Screw 23. O-ring
8. Field case 16. Oil seal 24. Manual valve
