Suzuki GF60A - Tiller Handle Component

2A-8 Housing and Bracket:

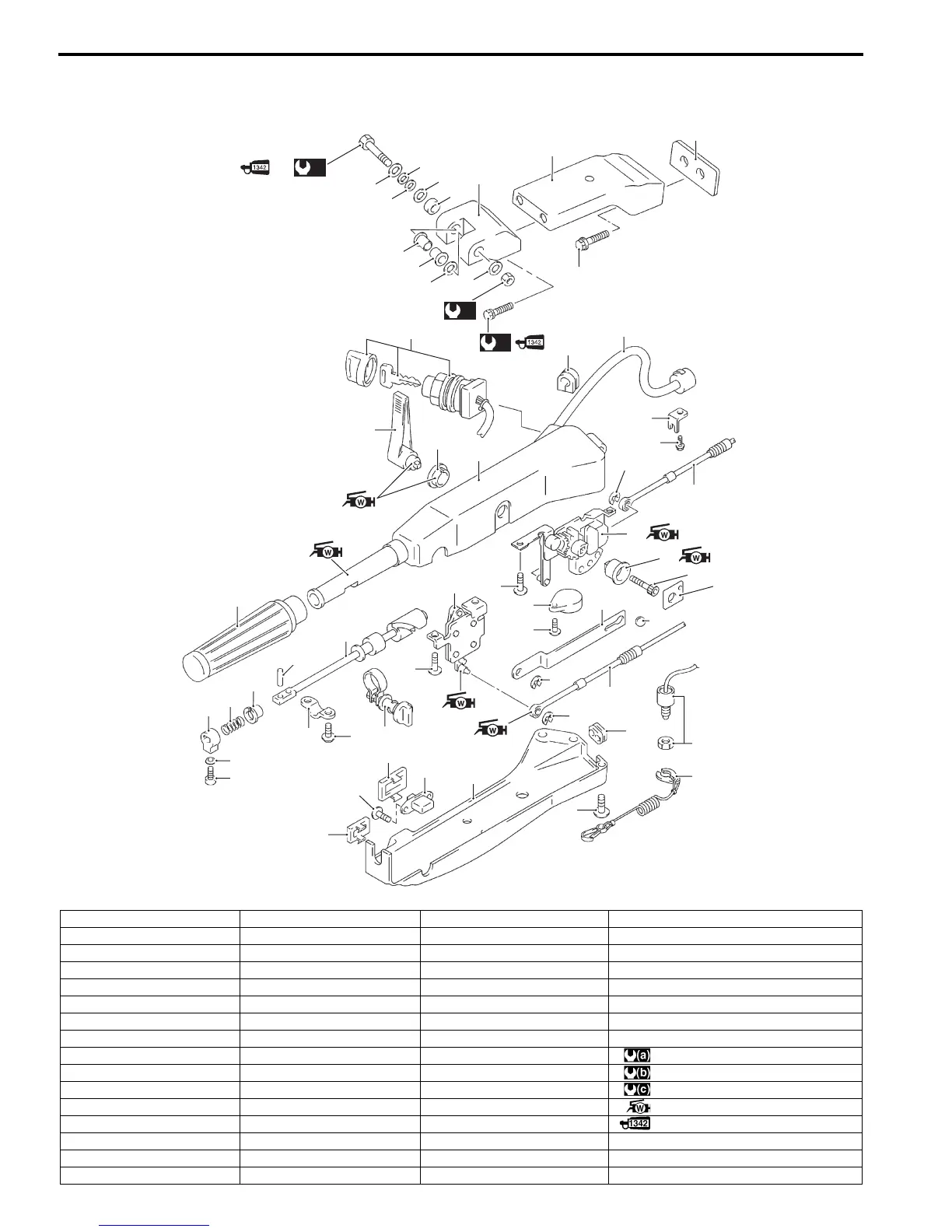

Tiller Handle Component
ZAJ6112106015
(a)
48
49
46
46
47
50
49
49
51
50
45
54
55
(b)
52
(c)
53
12
43
26
34
31
42
41
32
44
1
2
18
17
19
21
25
29
14
13
56
40
16
15
20
22
27
39
24
23
11
30
28
38
10
8
6
3
4
7
9
5
33
37
36
35
IAJ011210033-02
1. Tiller handle housing 17. Handle rod stopper 33. Shift gear assembly 49. Washer
2. Handle grip 18. Spring 34. Screw 50. Washer
3. Lower cover 19. Bush 35. Bush 51. Spacer
4. Screw 20. Pin 36. Bolt 52. Nut
5. Cable grommet 21. Throttle shaft 37. Plate 53. Bolt
6. PTT switch 22. Plate 38. Ball 54. Extension
7. Screw 23. Screw 39. Shift cable 55. Spacer
8. Cap 24. Throttle tension adjuster 40. E-ring 56. Bolt
9. Cover 25. Throttle arm assembly 41. Clamp bracket : 25 N·m (2.5 kgf-m, 18.0 lbf-ft)
10. Emergency stop switch 26. Screw 42. Bolt : 45 N·m (4.5 kgf-m, 32.0 lbf-ft)
11. Lock plate 27. Throttle cable 43. Shift lever : 50 N·m (5.0 kgf-m, 36.0 lbf-ft)
12. Ignition switch assembly 28. E-ring 44. Bush : Apply SUZUKI water resistance grease.
13. Handle wire harness 29. Lock plate 45. Tiller handle bracket : Apply SUZUKI thread lock 1342.
14. Grommet 30. E-ring 46. Bush
15. Screw 31. Buzzer 47. Washer
16. Washer 32. Screw 48. Bolt
