Suzuki GF60A - Intake Manifold and Throttle Body Components

Power Unit Mechanical: 1D-9
Installation
Installation is reverse order of removal with special
attention to the following steps.
CAUTION
Do not reuse gasket once removed.
Always use a new gasket.
• Install the dowel pins (1) and gasket (2).
• Apply engine oil to lip area of upper oil seal.
Install upper oil seal housing (3) and secure with bolts.
Tightening torque
Upper oil seal housing bolt (6 mm) (a): 11 N·m (
1.1 kgf-m, 8.0 lbf-ft)
• Install the battery charge coil.
Refer to “Battery Charge Coil Removal and
Installation” in Section 1K (Page 1K-5).

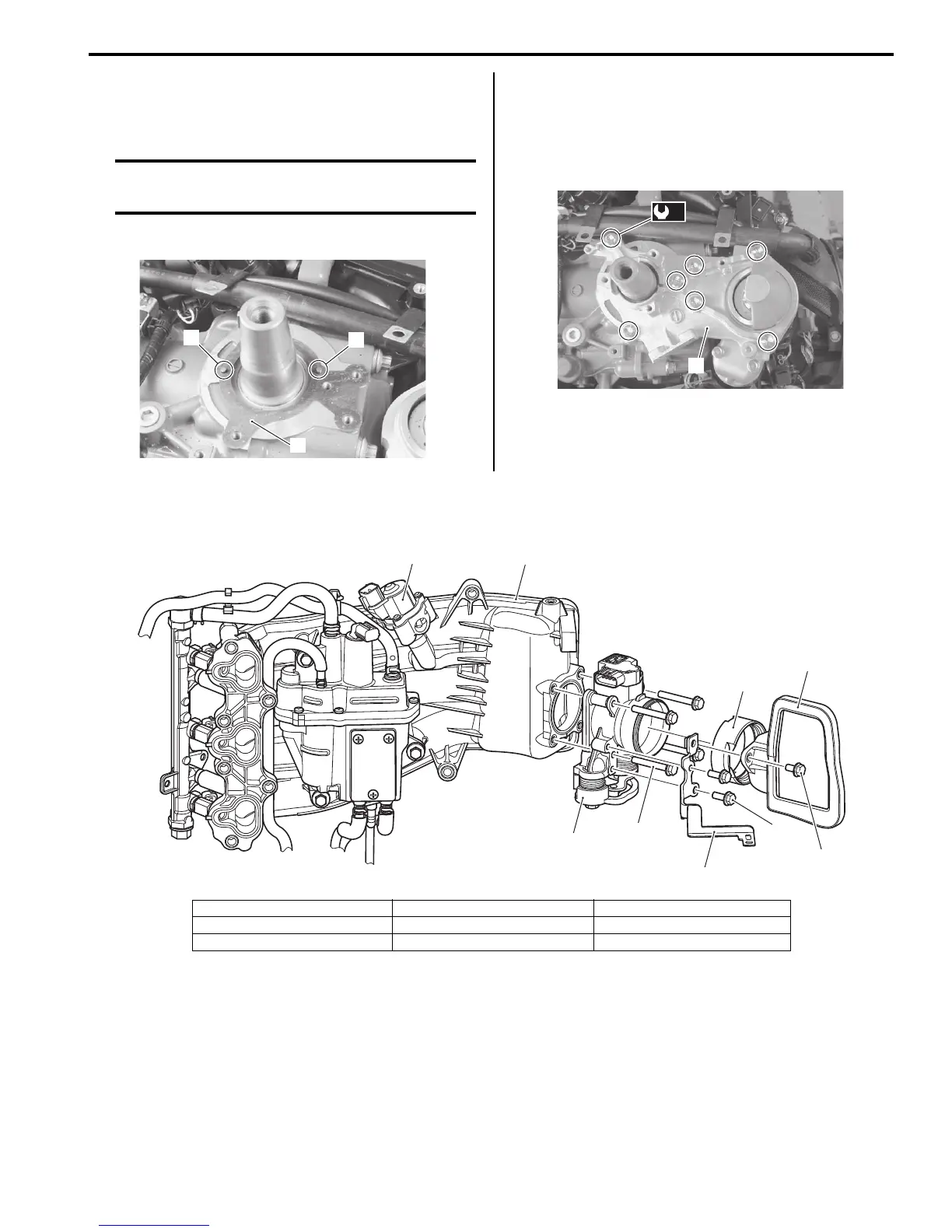

Intake Manifold and Throttle Body Components
ZAJ6111406006
1
1
2
IAJ611140071-01
3
(a)
IAJ611140072-01
1
2
3
5
6
7
8
4
9
IAJ611140002-02
1. Intake manifold assembly 4. Bracket 7. Silencer
2. Throttle body assembly 5. Bolt 8. Silencer holder
3. Bolt 6. Bolt 9. IAC valve
