Suzuki GF60A - Pistons, Piston Rings, Connecting Rods, Cylinder and Crankshaft Components

Power Unit Mechanical: 1D-43
Pistons, Piston Rings, Connecting Rods, Cylinder and Crankshaft Components

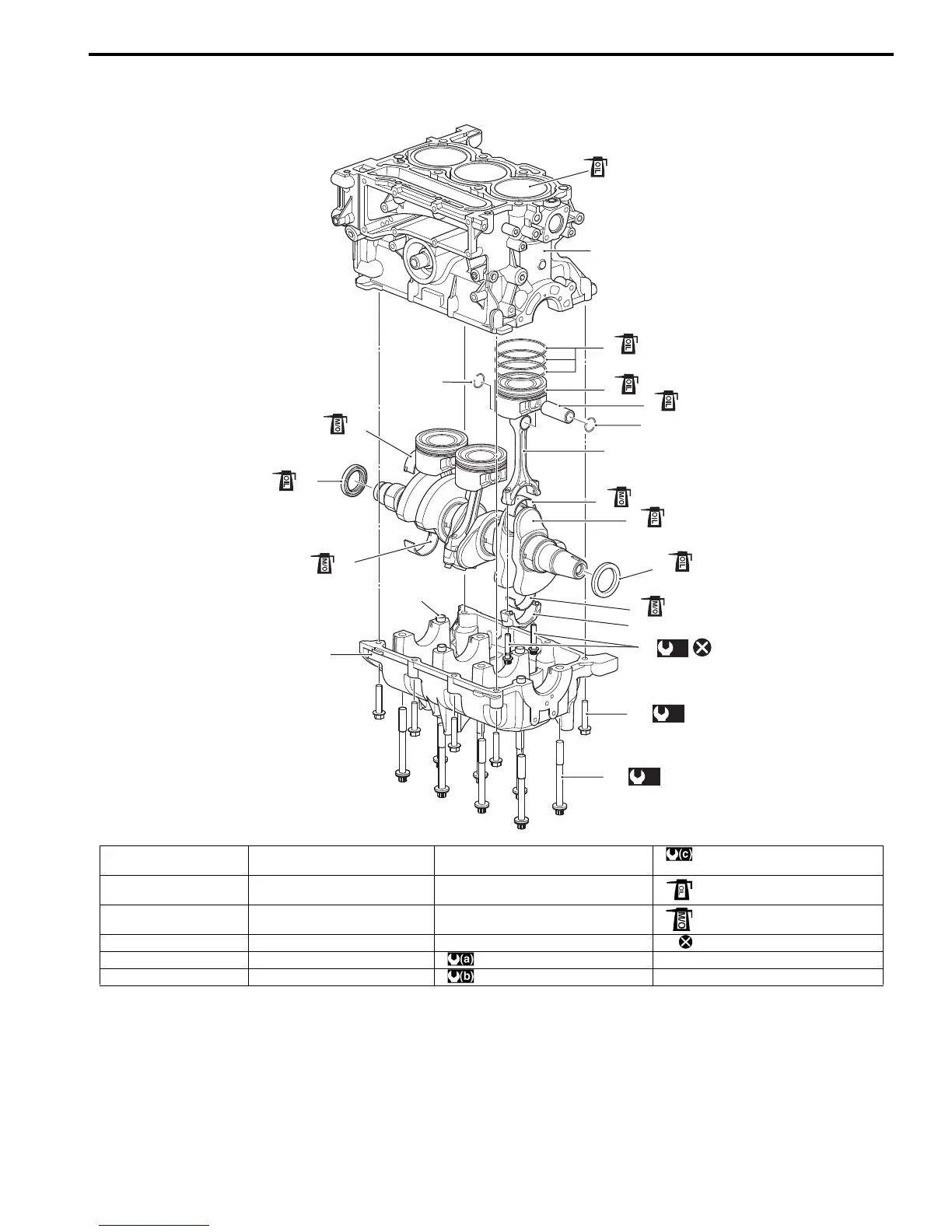

ZAJ6111406020
1
2
3
4
5
6
7
11
7
10
8
(c)
9
(b)
16
(a)
15
5
12
12
10
14
13
IAJ611140239-02
1. Cylinder block 7. Conrod bearing 13. Dowel pin : 15 N·m (1.5 kgf-m, 10.8 lbf-ft), then
plus turn in 65 degrees.
2. Piston ring set 8. Conrod cap 14. Crankcase : Apply engine oil.
3. Piston 9. Conrod bolt 15. Bolt, inside : Apply Molybdenum oil solution.
4. Piston pin 10. Oil seal 16. Bolt, outside : Do not reuse
5. Circlip 11. Crankshaft : 46 N·m (4.6 kgf-m, 33.3 lbf-ft)
6. Conrod 12. Crankshaft main bearing : 25 N·m (2.5 kgf-m, 18.0 lbf-ft)
