Housing and Bracket: 2A-23

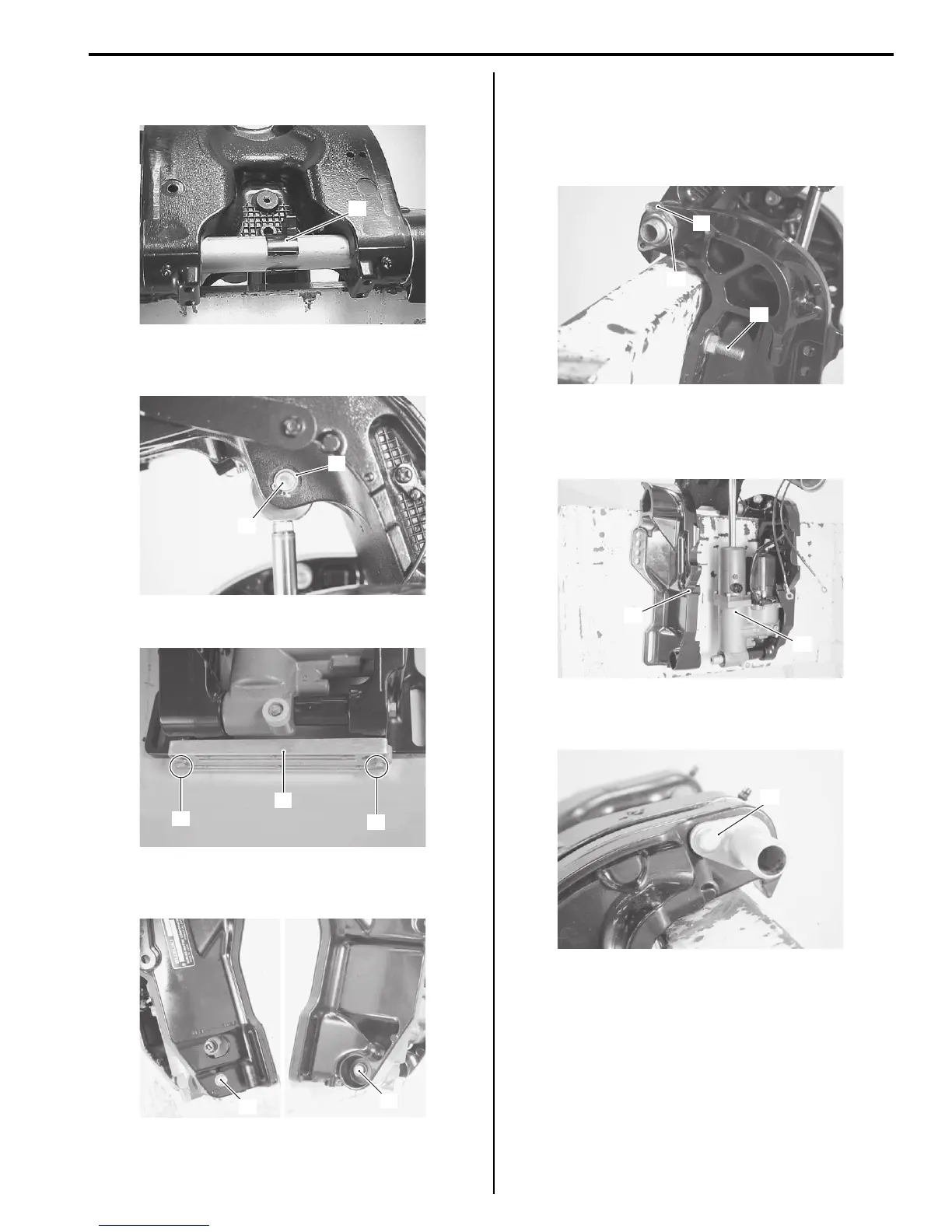

9) Remove the upper trim sensor cam (13) from clamp
bracket shaft.
10) Remove circlip (14) and push out tilt cylinder upper
rod (15).
11) Remove bolts (16) and anode (17).
12) Remove the two bolts (18) securing PTT lower shaft
to STBD and PORT clamp brackets.
13) Using flat blade screw driver, drive locking edge of
lock washer (19) to clamp bracket side.
14) Remove the two PORT motor mounting bolts (20).
Remove the clamp bracket shaft nut (21) and
washer.
15) Slide PORT clamp bracket (22) off clamp bracket
shaft.
16) Remove the PTT unit (23).
17) Remove the bolt (24) securing clamp bracket shaft to
STBD clamp bracket.
13
I9J011210089-01
14
15
IAJ611210084-01
16
16
17
IAJ611210085-01
18
18
IAJ611210086-01
21
19
20
IAJ611210087-01
22
23
IAJ611210088-01
24
IAJ611210089-01
