Wire Routing: 4A-5
1. Battery cable

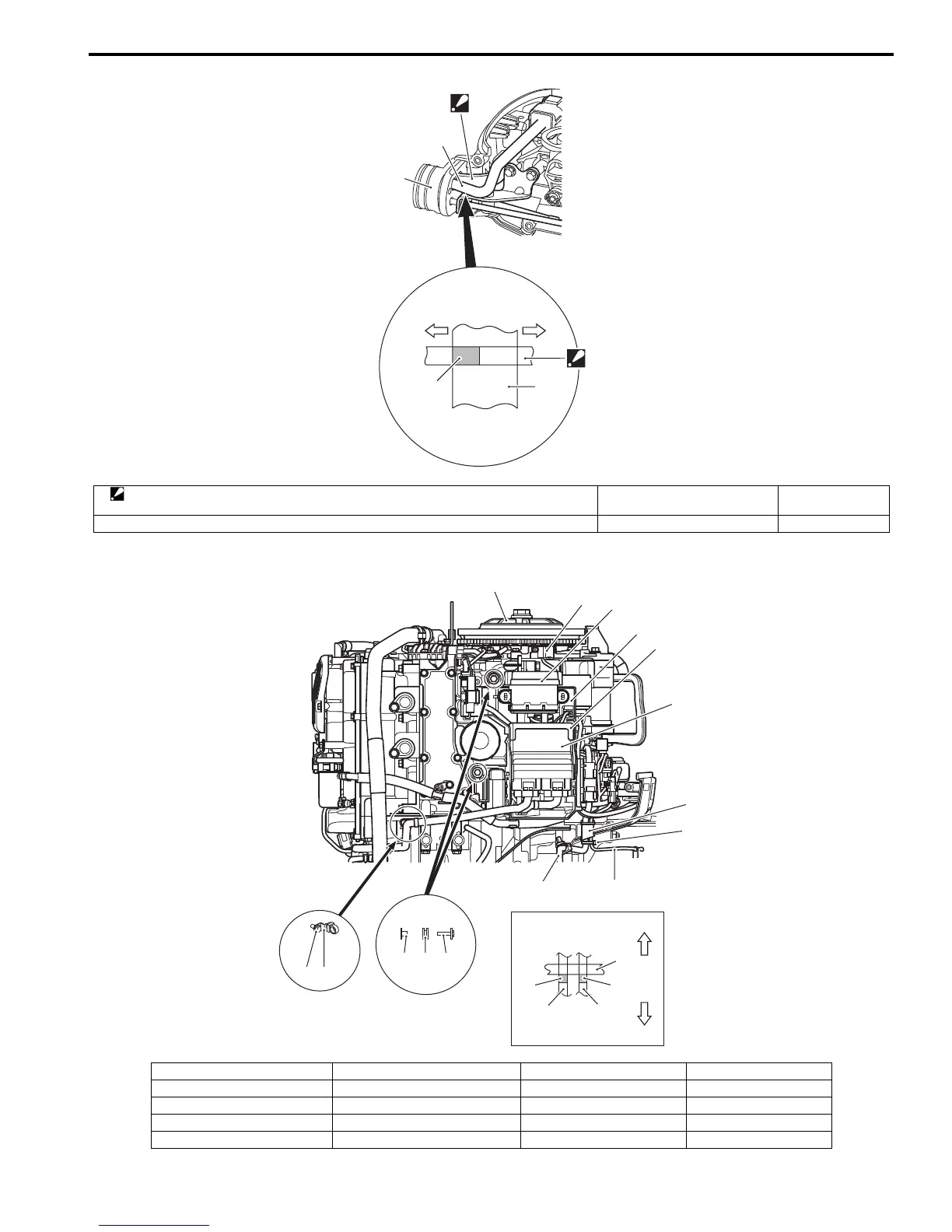

: Position the taping (2) of battery cable into the rigging port grommet as shown illustration.
3. Remote control harness “A”. Inside
2. Taping 4. Rigging port grommet “B”. Outside
“B” “A”
4
2
1
1
3
4
IAJ611410005-01
“C”
“B”
10
“A” “A”
9 8
8
9
7
10
1
2
3
6
5
4
11 12 13
15
14
IAJ611410006-03
1. Flywheel 6. ECM 11. Washer “A”: Taping
2. CKP sensor 7. Cable tie 12. Cushion “B”: Inside
3. Fuse box 8. Trim sensor lead wire 13. Bolt “C”: Outside
4. Electric parts holder 9. PTT cable 14. Harness bracket
5. Cushion 10. Grommet 15. Bolt
