1A-20 Engine Control:
Self-Diagnostic Code “2 – 3” IAT Sensor
ZAJ6111104005

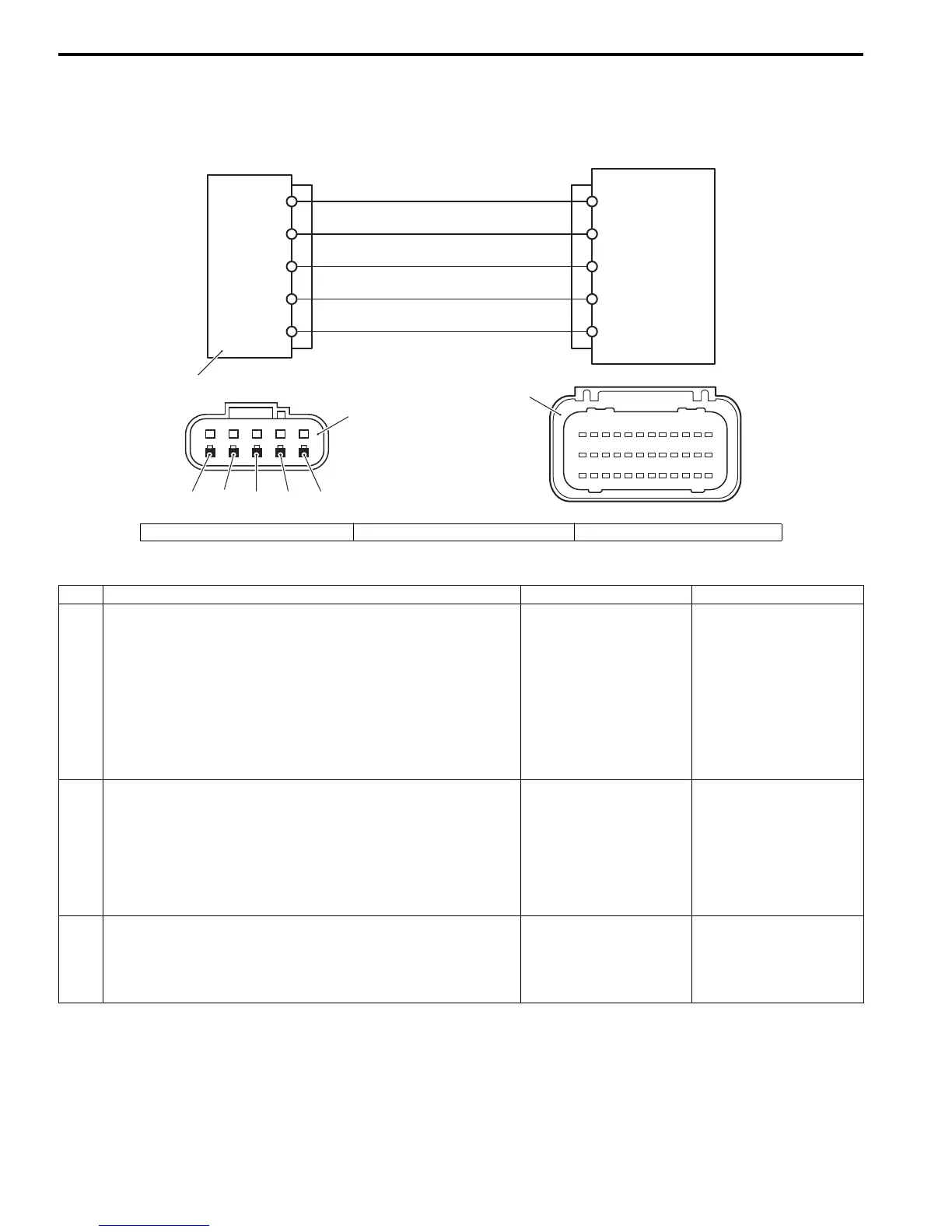

Wiring Diagram
Troubleshooting
ECM
Lg/B
123456789101112
13 14 15 16 17 18 19 20 21 22 23 24
25 26 27 28 29 30 31 32 33 34 35 36
8
32
25
6
33
W
B/W
Br/Y
R
B/W Br/Y RWLg/B
1
2
3
IAJ611110006-01
1. MAP sensor / TPS / IAT sensor 2. Sensor connector (harness side) 3. ECM connector (harness side)
Step Action Yes No
1 1) Turn the ignition switch “OFF”.
2) Check the IAT sensor connector for loose or poor
contacts. If OK, then check the IAT sensor lead wire
continuity.
3) Disconnect the IAT sensor connector at sensor.
4) Check the continuity between “Lg/B” wire terminal and
“B/W” wire terminal.
Is it no continuity?
Go to step 2. “Lg/B” wire shorted to
“B/W” wire.
2 1) With the ignition switch “OFF”, disconnect the IAT sensor
connector.
2) With the ignition switch “ON”, check the voltage at the
“Lg/B” wire terminal of the IAT sensor connector.
Is the voltage 4 V or more?
Go to step 3. • “Lg/B” wire shorted to
“B/W” wire or ground
circuit.
• If the wiring is OK,
substitute a known-
good ECM and
recheck.
3 1) Check the IAT sensor.
Refer to “IAT Sensor Inspection” in Section 1C (Page
1C-10).
Is it in good condition?
Poor IAT sensor
connection, intermittent
trouble or a faulty ECM
may be cause.
Faulty IAT sensor.
