Engine Electrical Devices: 1C-12
7) Turn Ignition switch ON.

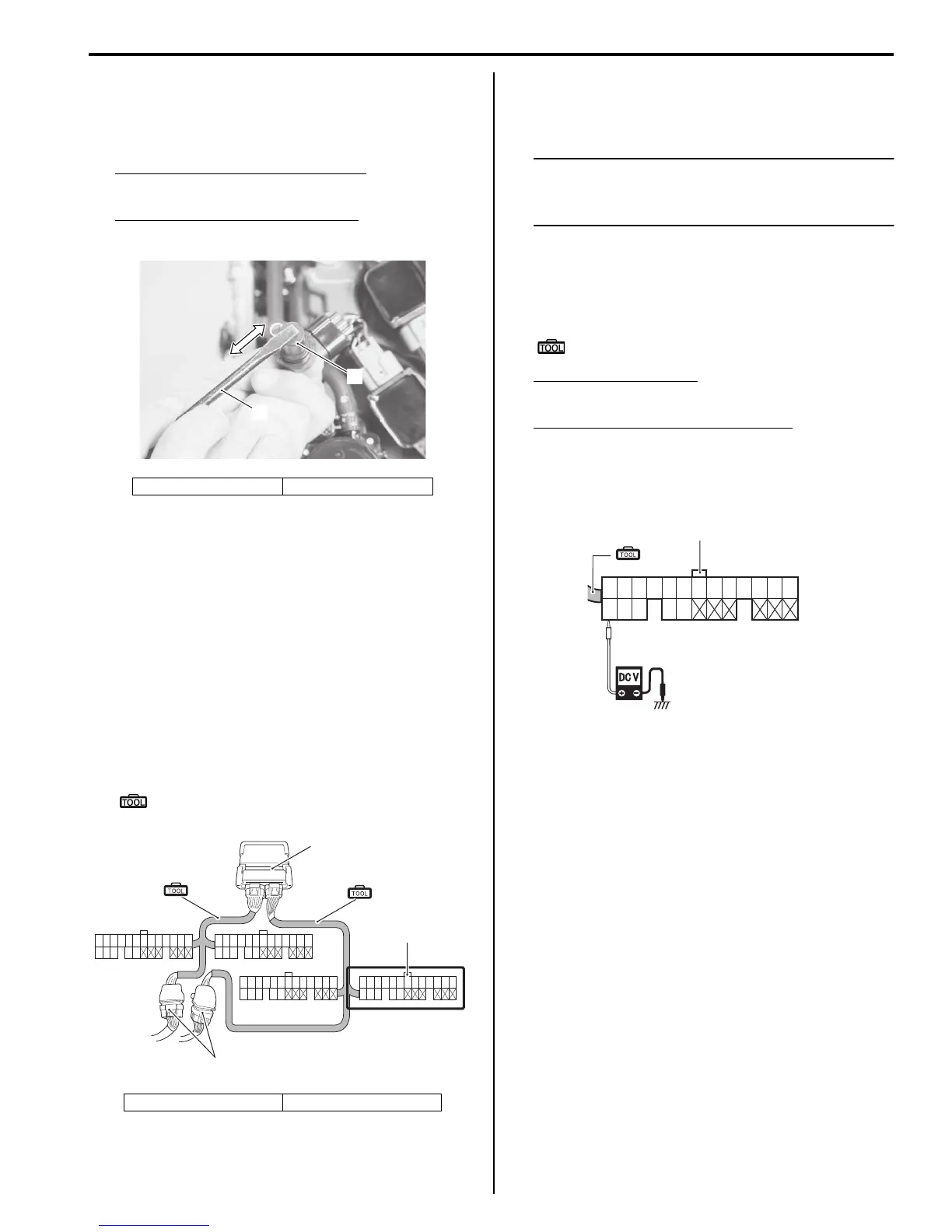

8) Measure the voltage when the tip of a steel
screwdriver is brought near and then pulled away
from the sensor tip.
When screwdriver is brought near
Approx. 5.0 V
When screwdriver is pulled away
Approx. 0.3 V
9) If the voltage does not change in the above test,
check wire harnesses for open and short.
If wire harnesses are in good condition, replace CMP
sensor and recheck.
10) Reinstall CMP sensor.
MAP Sensor Output Voltage Inspection
ZAJ6111306013
1) Remove STBD lower side cover.
Refer to “Lower Side Cover Removal and
Installation” in Section 2A (Page 2A-3).
2) Connect the 36-pin test cord set between ECM and
wire harness as shown in figure.
Special tool
(A): 09930–88730 (36-pin test cord set)
3) Install STBD lower side cover.
Refer to “Lower Side Cover Removal and
Installation” in Section 2A (Page 2A-3).
NOTE
Keep the ECM connector and test cord dry to
protect them from water spray during the
inspection.
4) Start the engine, then shift into forward.
Gradually increase engine speed to 3 000 rpm, then
measure the voltage change at “32” terminal (sensor
output).
Special tool
: 09930–99320 (Digital tester)
Tester knob indication
DC Voltage
MAP sensor output voltage change
Fully closed throttle: Approx. 1.4 V (258 mmHg)
1 000 rpm: Approx. 1.5 V (290 mmHg)
2 000 rpm: Approx. 2 V (407 mmHg)
3 000 rpm: Approx. 3 V (604 mmHg)
5) If sensor voltage change is out of the specified value
or no linear variation, check wire harnesses for open
or short. If wire harnesses are in good condition,
replace throttle body assembly and recheck them.
6) Remove the 36-pin test cord, then connect the
connector to ECM.
IAC Valve Removal and Installation
ZAJ6111306014
Removal
1) Remove the ring gear cover.
Refer to “Ring Gear Cover Removal and Installation”
in Section 1D (Page 1D-2).
2) Disconnect IAC valve lead wire connector at IAC
valve (1).
4. Screw driver 5. CMP sensor
1. Wire harness 2. Black connector
37
50
38
51
39
52
40 41
53 54
42 43 44 45 46 47 48 49 55
68
56
69
57
70
58 59
71
60 61 62 63 64 65 66 67
19 20 21 22 23 24 25 26 27 28 29 30 3112345678910111213
14 15 16 17 18
32 33 34 35 36
72
(A)
(A)
ECM
1
2
32
(A)
2
To Next Page
