Air Bag System: 8B-98
5) Install glove box.

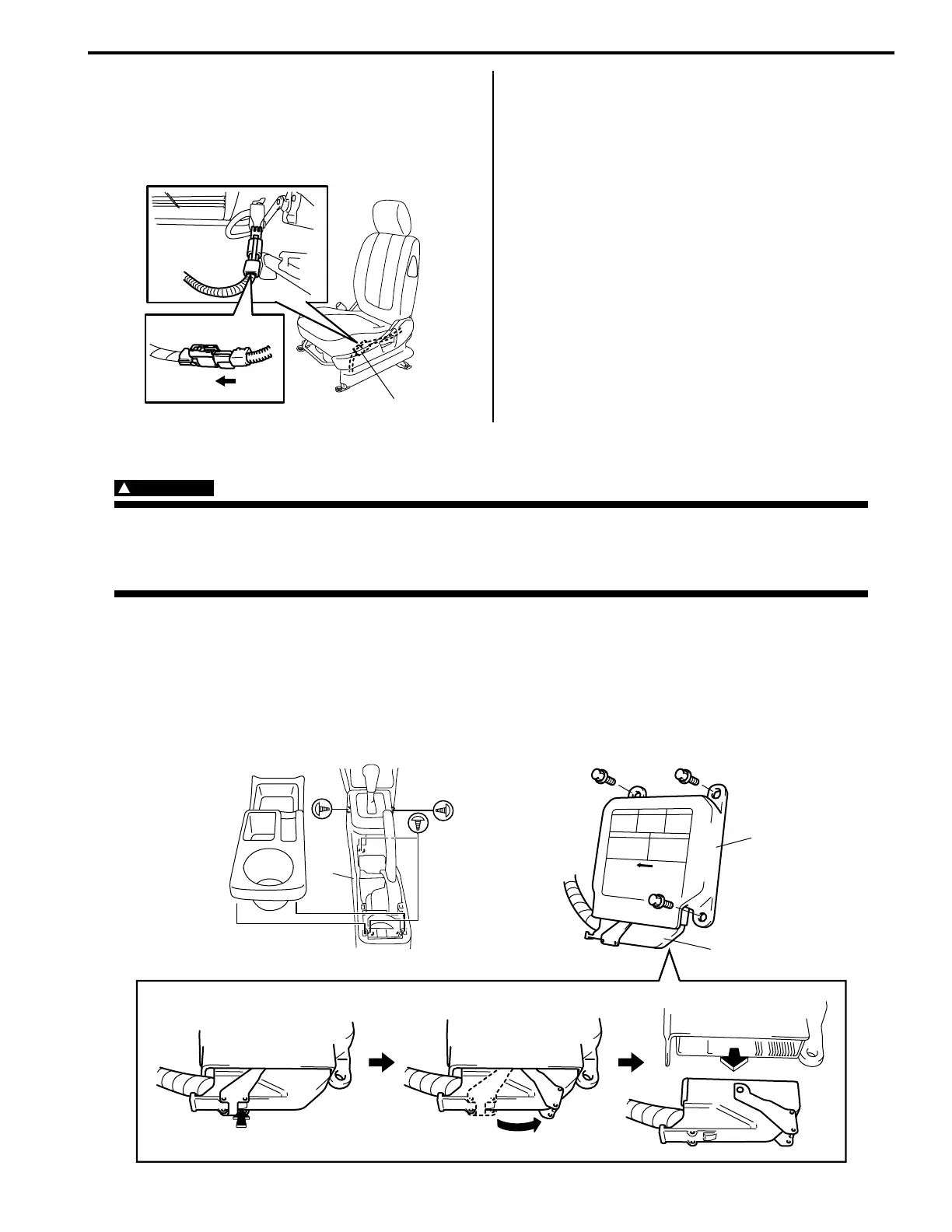

6) If equipped with side air bag (inflator) module,
connect yellow connector (2) of side air bag (inflator)
module by pushing connector till click is heard from
it.
7) Install “AIR BAG” fuse to fuse box.
8) Connect negative (–) cable at battery.
9) Turn ignition switch to ON position and verify that
“AIR BAG” warning lamp flashes 6 times and then
turns OFF. If it does not operate as described,
perform “Air Bag Diagnostic System Check”.
SDM Removal and Installation
S3RH0A8206003
WARNING
!
During service procedures, be very careful when handling a Sensing and Diagnostic Module (SDM).
Be sure to read “Precautions on Service and Diagnosis of Air Bag System” before starting to work and
observe every precaution during work. Neglecting them may result in personal injury or inactivation of
the air bag system when necessary.
Removal
1) Disconnect negative (–) cable at battery.
2) Disable air bag system. Refer to “Disabling Air Bag System”.
3) Remove center console boxes (1) by removing screws and clips.
4) Disconnect SDM connector (2) from SDM (3).
5) Remove SDM (3) from vehicle.
2
I3RH0A820059-01
3
2
1
I3RH0A820060-01
To Next Page
