2B-4 Front Suspension:

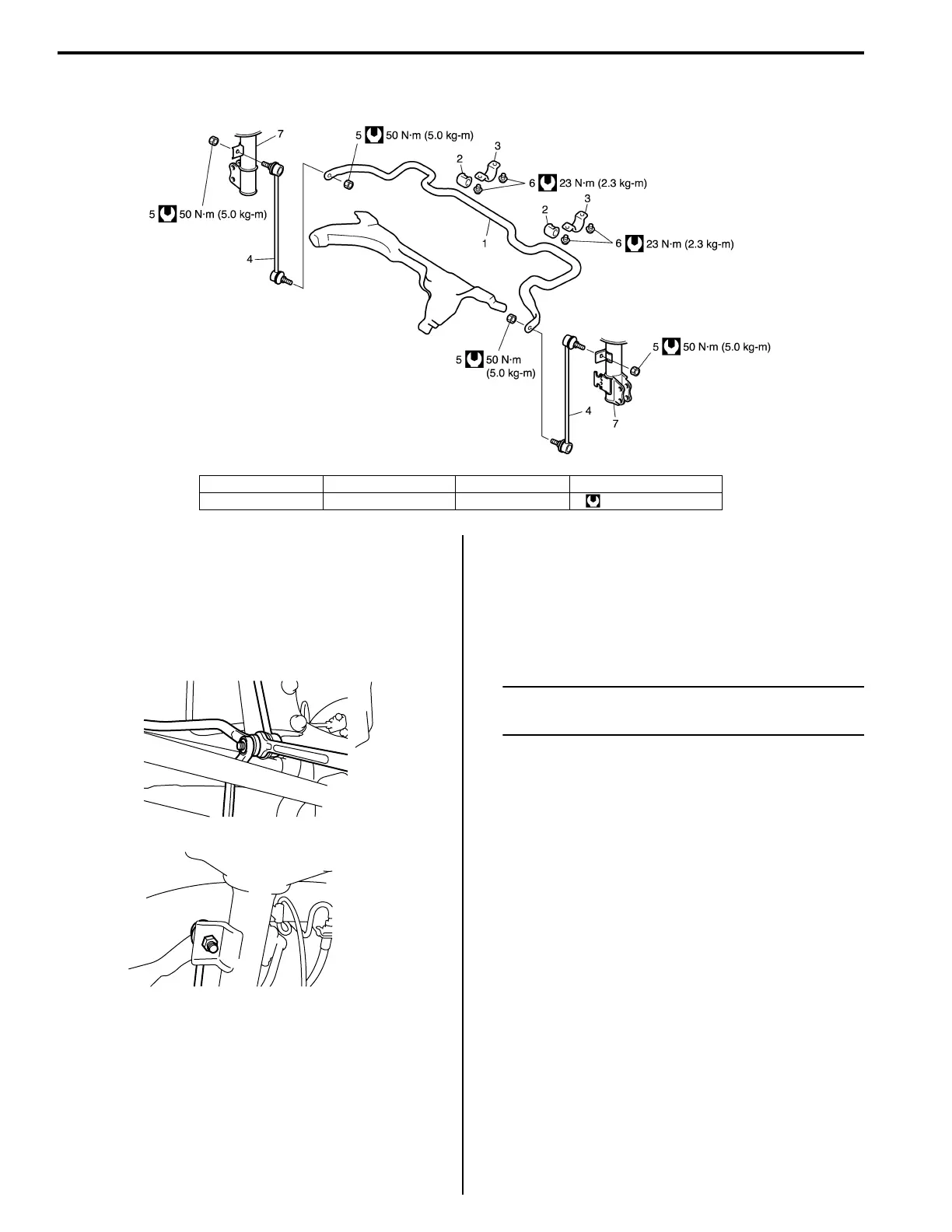

Front Stabilizer Bar and/or Bushings Components
S3RH0A2206002
Front Stabilizer Bar and/or Bushings Removal
and Installation
S3RH0A2206003
Removal
1) Remove stabilizer joints.
When loosening joint nut, hold stud with wrench.
2) Remove stabilizer mount brackets.
3) Remove stabilizer.
Installation
1) Loosely assemble all components in reverse order of
removal.
2) With painted mark (1) on stabilizer bar and end face
of mount bushing (2) aligned, tighten mount bracket
bolts to specified torque.
NOTE
If painted mark has gone, align the vehicle
center and the center of stabilizer bar.
Tightening torque
Stabilizer bar mounting bracket bolt (a): 23 N·m (
2.3 kgf-m, 17.0 lb-ft)
3) Tighten joint nuts to specified torque.
When tightening, hold stud with wrench.
Tightening torque
Stabilizer joint nut (b): 50 N·m (5.0 kgf-m, 36.5
lb-ft)
I4RH01220002-01
1. Stabilizer bar 3. Mount bracket 5. Joint nut 7. Strut assembly
2. Mount bush 4. Joint 6. Mount bolt : Tightening torque
I3RH0A220004-01
