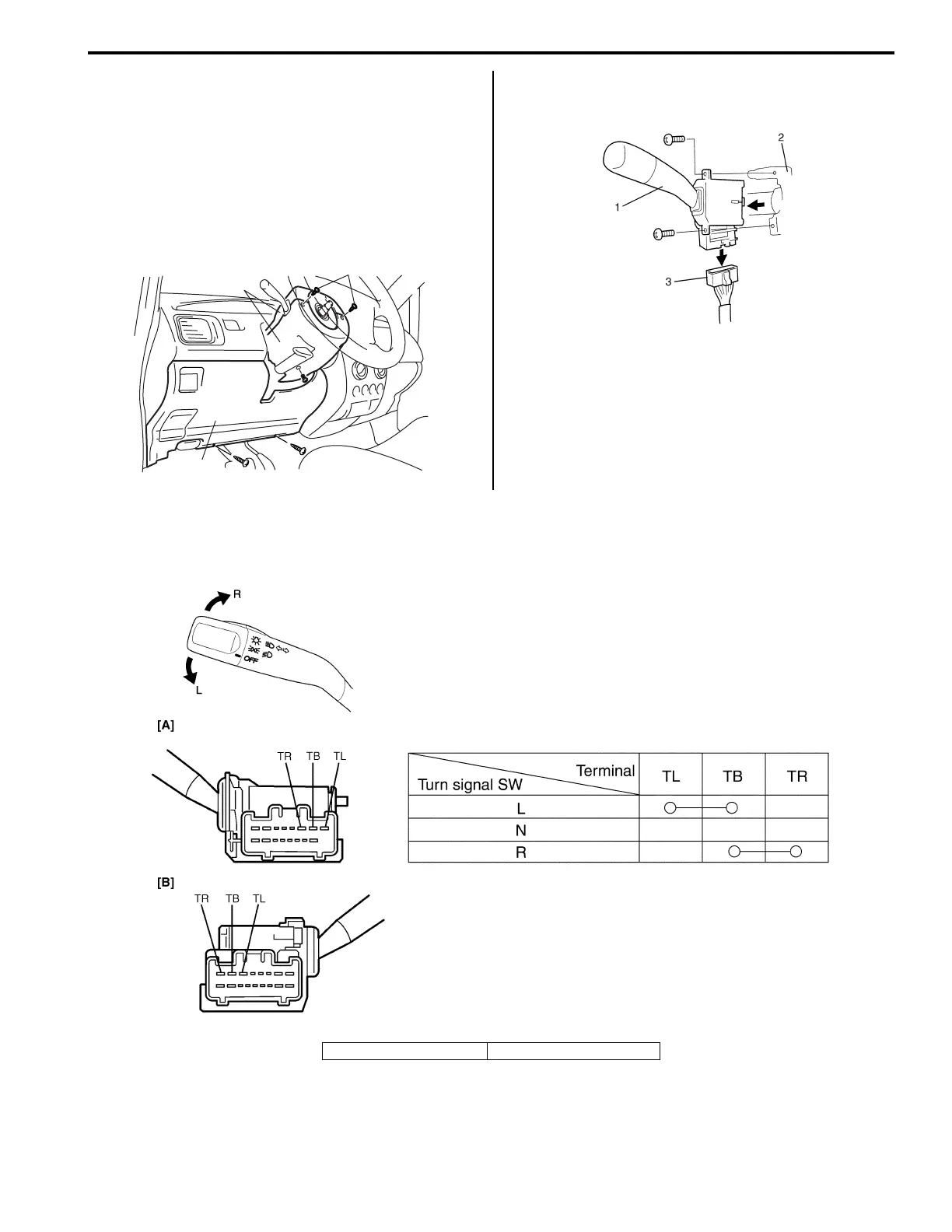

Lighting Systems: 9B-10
Turn Signal Light Switch (in Lighting Switch)
Removal and Installation
S3RH0A9206011
Removal
1) Disconnect negative (–) cable at battery.
2) Remove steering column hole cover (1).
3) Remove steering column covers (2), and then.
Turn steering wheel to remove steering column
cover screws (3).
4) Remove lighting switch (1) from combination switch
(2) and disconnect its coupler (3).
Installation
Reverse removal procedure.
Turn Signal Light Switch (in Lighting Switch) Inspection
S3RH0A9206012
Check for continuity between terminals at each switch position. If check result is not as specified, replace switch.
1
2
3
I3RH0A920004-01
I2RH01920013-01
I3RH0A920009-01
[A]: LH steering vehicle [B]: RH steering vehicle
