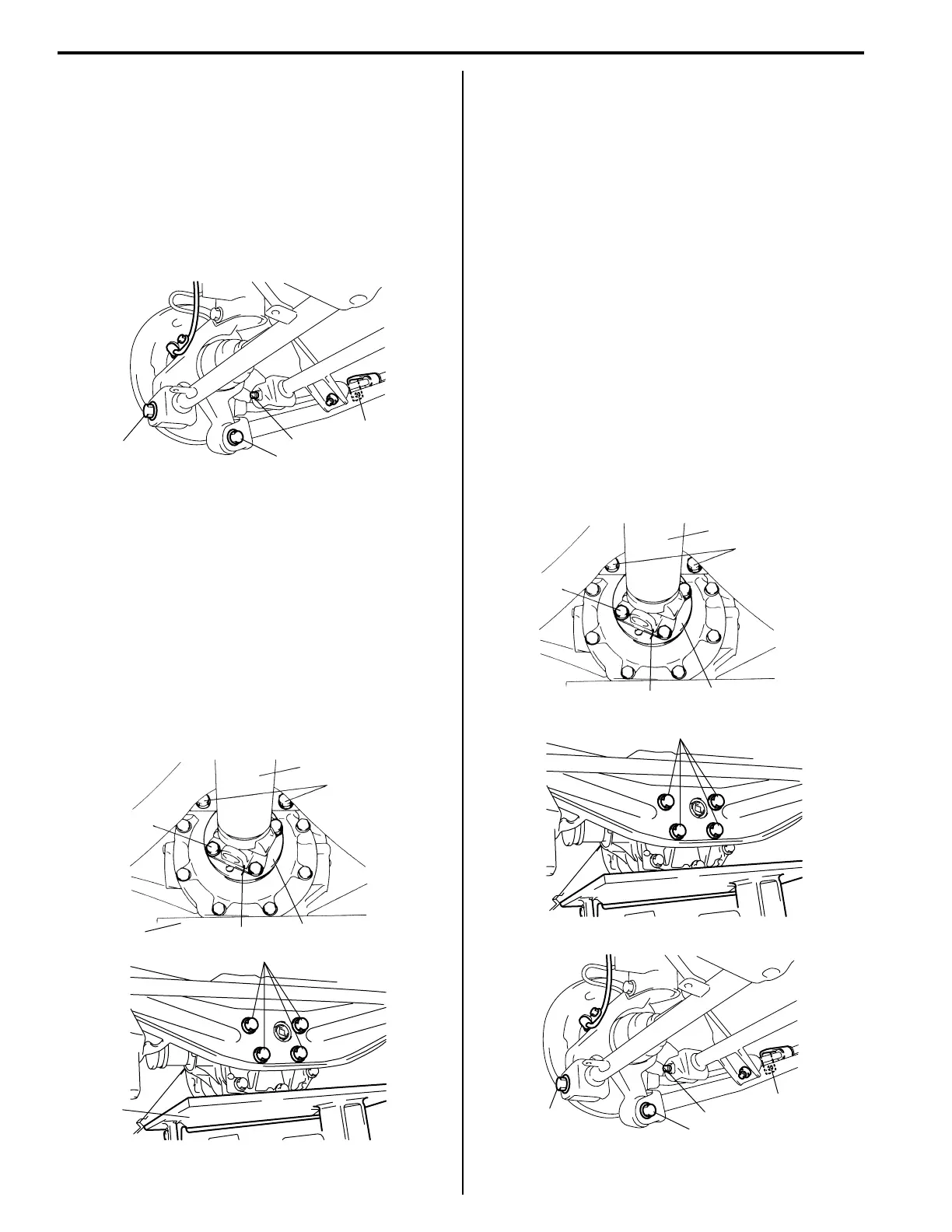

3B-5 Differential:
Rear Differential Assembly Dismounting and
Remounting
S3RH0A3206004
Dismounting
1) Hoist vehicle and remove wheels.
2) Drain oil from rear differential. Refer to “Rear
Differential Oil Change”.
3) Remove parking brake wire mounting bolt (1), rear
control rod outer bolts (2) and rear trailing rod rear
bolt (3).
4) Remove rear drive shafts referring to “Rear Drive
Shaft Removal and Installation in Section 3A”.
5) Place jack (4) so that differential assembly will not
tilt.
6) Apply match marks (6) to companion flange (7) and
propeller shaft (3).
7) Remove 4 propeller shaft flange bolts (1) from rear
differential, and then pull out propeller shaft (3) from
rear differential.
8) Remove differential front mounting bracket bolts (2).
9) Remove differential rear mounting bracket bolts (5).
10) Lower jack (4) with rear differential assembly.
Remounting
Reverse dismounting procedure for remounting noting
the following points.
• Install propeller shaft (1) to companion flange (2)
aligning match marks (3).
• Tighten each bolt to specified torque.
Tightening torque
Differential front mounting bracket bolts (a): 50
N·m (5.0 kgf-m, 36.5 lb-ft)
Differential rear mounting bracket bolts (b): 50
N·m (5.0 kgf-m, 36.5 lb-ft)
Propeller shaft flange bolts (c): 23 N·m (2.3 kgf-
m, 17.0 lb-ft)
Rear control rod outer bolts (d): 90 N·m (9.0 kgf-
m, 65.0 lb-ft)
Rear trailing rod rear bolts (e): 90 N·m (9.0 kgf-m,
65.0 lb-ft)
Parking cable wire mounting bolts (f): 10 N·m (1.0
kgf-m, 7.5 lb-ft)
Rear drive shaft nuts: 175 N·m (17.5 kgf-m, 126.5
lb-ft)
Wheel nuts: 85 N·m (8.5 kgf-m, 61.5 lb-ft)
• Pour hypoid gear oil as specified referring to “Rear
Differential Oil Change”.
1
2
3
2
I3RH01322014-01
5
4
3
2
1
4
6
7
I3RH0A320004-01
(b)
1
(a)
(c)
3
2
I3RH0A320005-01
(f)
(d)
(e)
(d)
I3RH01322017-01
