5A-124 Automatic Transmission/Transaxle:

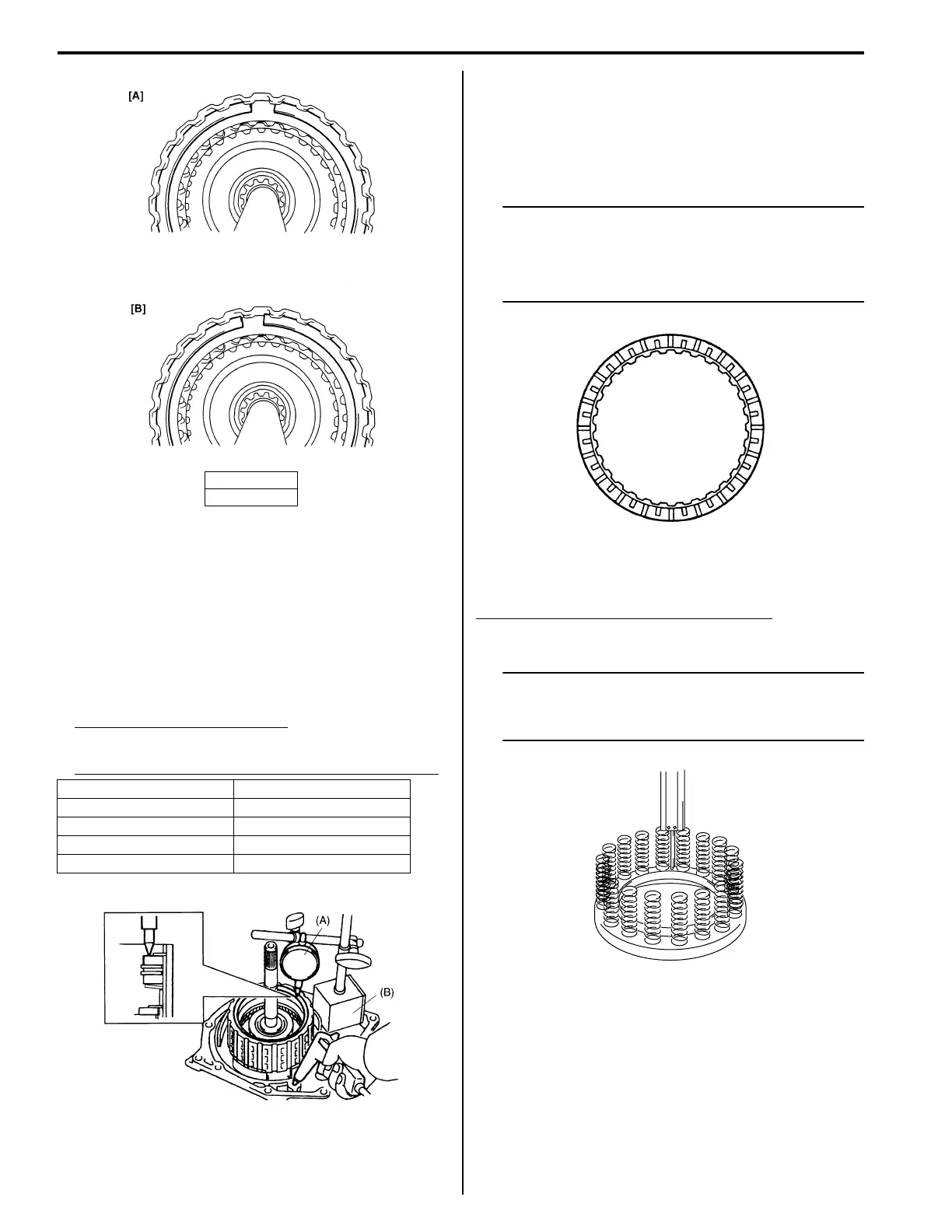

• Measure reverse clutch piston stroke in the same
manner as “Forward and Reverse Clutch Assembly
Preliminary Check”.
When piston stroke is out of specification, select
reverse clutch retaining plate with proper thickness
from among the following table and replace it.
Special tool
(A): 09900–20607
(B): 09900–20701
Reverse clutch piston stroke
1.2 – 1.6 mm (0.047 – 0.063 in.)
Available reverse clutch retaining plate thickness
Forward and Reverse Clutch Assembly
Inspection
S3RH0A5106037
Check that sliding surfaces of discs, separator plates
and retaining plate are not worn hard or burnt. If
necessary, replace.
NOTE
• If disc lining is exfoliated or discolored,
replace all discs.
• Before assembling new discs, soak them
in A/T fluid for at least two hours.
Forward Clutch Return Spring Subassembly
Measure free length of forward clutch return spring.
Forward clutch return spring free length
23.04 mm (0.907 in.)
NOTE
Do not apply excessive force when
measuring spring free length. Perform
measurement at several points.
[A]: Correct
[B]: Incorrect
Thickness Identification mark
3.0 mm (0.118 in.) 1
3.2 mm (0.126 in.) 2
3.4 mm (0.134 in.) 3
3.6 mm (0.142 in.) 4
I2RH0B510190-01
I3RH0A510033-01
I2RH0B510192-01
I2RH0B510193-01
