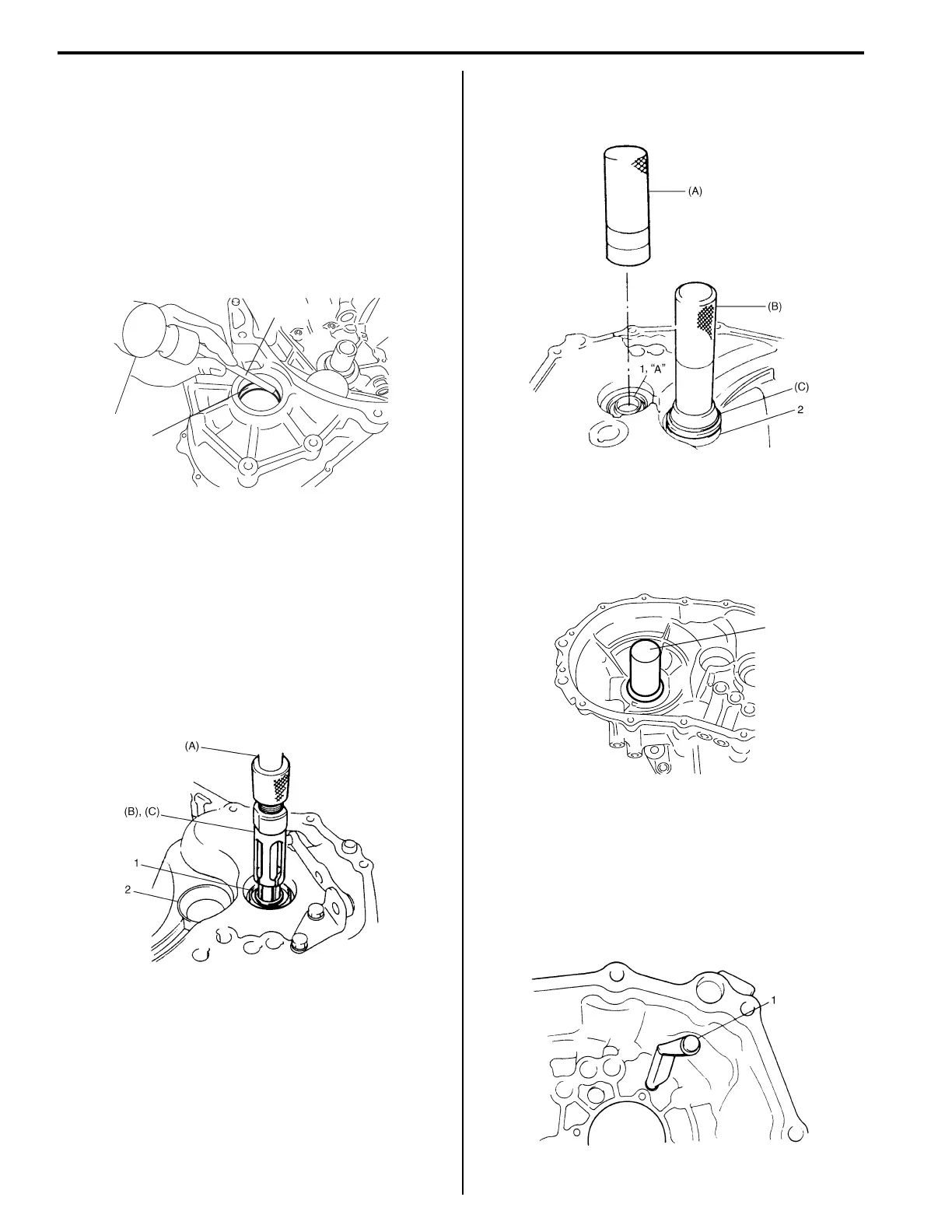

Suzuki Liana RH413 Service Manual

5B-25 Manual Transmission/Transaxle:
Right Case Disassembly and Assembly
S3RH0A5206016
Disassembly
1) Remove VSS referring to “Vehicle Speed Sensor
(VSS) Removal and Installation”.
2) Remove differential side oil seal from right case
referring to “Differential Side Oil Seal Replacement”,
if necessary.
3) Remove differential side bearing outer race (1) using
brass bar (2), if necessary (for 2WD).
4) Remove input shaft oil seal (1) by using special
tools, if necessary.
Special tool
(A): 09930–30104
(B): 09923–74510
5) Pull out countershaft right bearing outer race (2) by
using special tools, if necessary.
Special tool
(A): 09930–30104
(C): 09941–64511
Assembly
1) Install input shaft oil seal (1) facing its spring side
upward. Use special tool and hammer for installation
and apply grease to oil seal lip.
“A”: Grease 99000–25010
Special tool
(A): 09913–84510
2) Install countershaft right bearing outer race (2) by
using special tools and hammer.
Special tool
(B): 09913–75821
(C): 09924–84510–004
3) Install differential side bearing outer race by using
special tool and hammer (for 2WD).
Special tool
(A): 09913–85210
4) Install VSS referring to “Vehicle Speed Sensor (VSS)
Removal and Installation”.
Left Case Disassembly and Assembly
S3RH0A5206017
Disassembly
1) Removal oil gutter (1), if necessary.
2
1
I4RH01520024-01
I2RH01520039-01
I4RH01520026-01
(A)
I4RH01520027-01
I4RH01520028-01
