8A-7 Seat Belts:
Rear Seat Belt Removal and Installation
S3RH0A8106004
WARNING
!
Be sure to read “Precautions on Service and Diagnosis of Seat Belt”before starting to work and
observe every precaution during work.
Removal

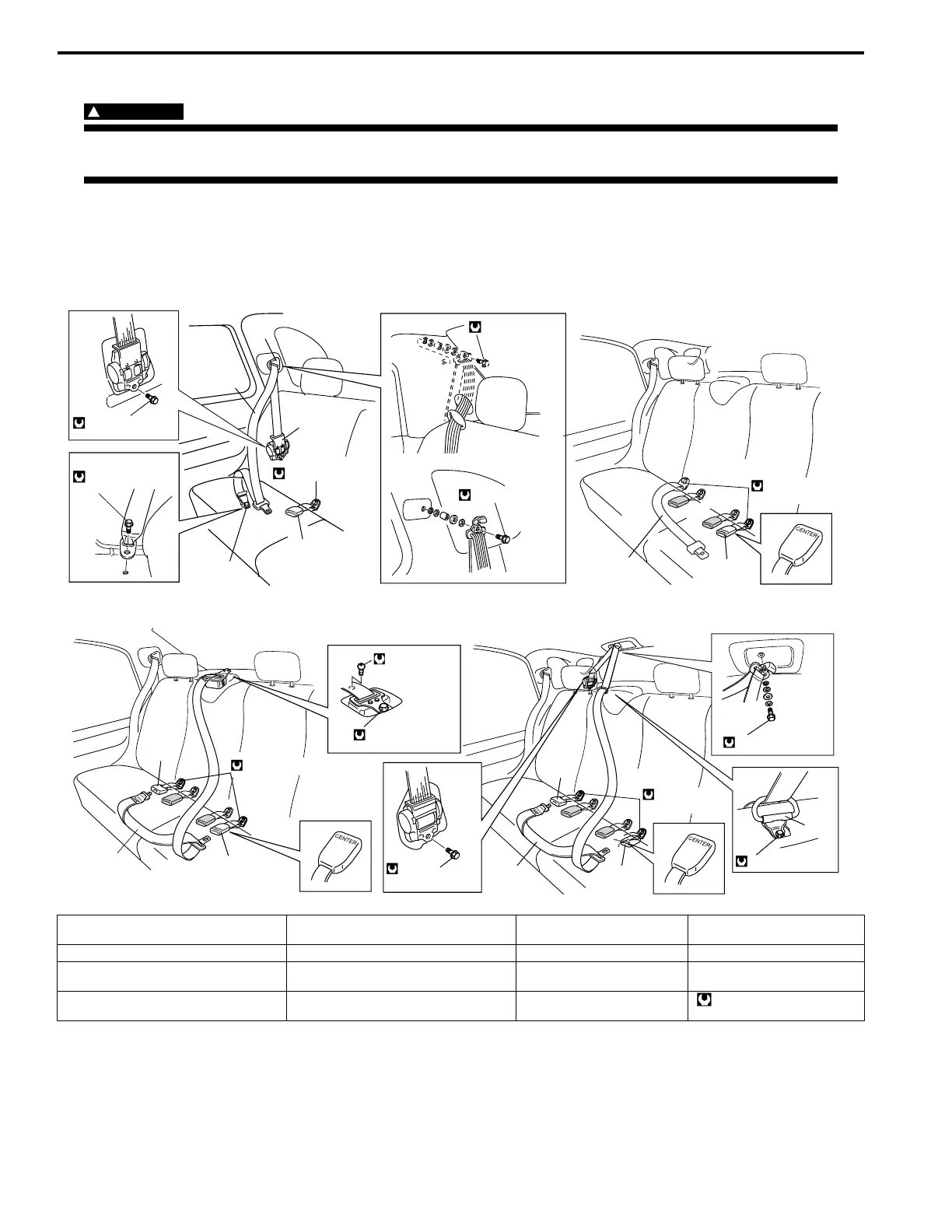

Remove rear seat belts as shown in figure.
Installation
Install the rear seat belt observing the same precautions as “Front Seat Belt Removal and Installation”.
35 N⋅m (3.5 kg-m)
35 N⋅m (3.5 kg-m)
35 N⋅m (3.5 kg-m)
[A] [C]
[D] [E]
[B]
35 N⋅m
(3.5 kg-m)
35 N⋅m
(3.5 kg-m)
35 N⋅m
(3.5 kg-m)
35 N⋅m (3.5 kg-m)
35 N⋅m (3.5 kg-m)
35 N⋅m (3.5 kg-m)
35 N⋅m (3.5 kg-m)
5.5 N⋅m
(0.55 kg-m)
35 N⋅m (3.5 kg-m)
35 N⋅m (3.5 kg-m)
2
5
3
4
1
7
10
8
7
8
10
9
6
8
I3RH0A810002-01
[A]: For sedan model [E]: For wagon model equipped with 3-point
rear center seat belt
4. Rear seat belt with A-ELR 8. Buckle for rear center seat
belt
[B]: For wagon model 1. Upper anchor 5. Buckle for rear seat belt 9. Rear center seat belt guide
[C]: For all model equipped with 2-point
rear center seat belt
2. Lower anchor 6. 2-point rear center seat belt 10. Connector for rear center
seat belt
[D]: For sedan model equipped with 3-point
rear center seat belt
3. Retractor assembly 7. 3-point rear center seat belt
with ELR
: Tightening torque
To Next Page
