Interior Trim: 9H-1
Body, Cab and Accessories
Interior Trim
Repair Instructions
Floor Carpet Removal and Installation
S3RH0A9806001
Removal
1) Remove front seats and rear seat cushion.
2) Remove seat belt lower anchor bolt.
3) Remove related trims and scuffs.
4) Remove console box.
5) Remove floor carpet.
Installation
Reverse removal sequence to install front floor carpet,
noting the following instruction.
• For tightening torque of seat belt anchor bolt, refer to
“Front Seat Belt Components in Section 8A”.
• For tightening torque of front seat adjuster bolt, refer
to “Front Seat Components in Section 9G”.

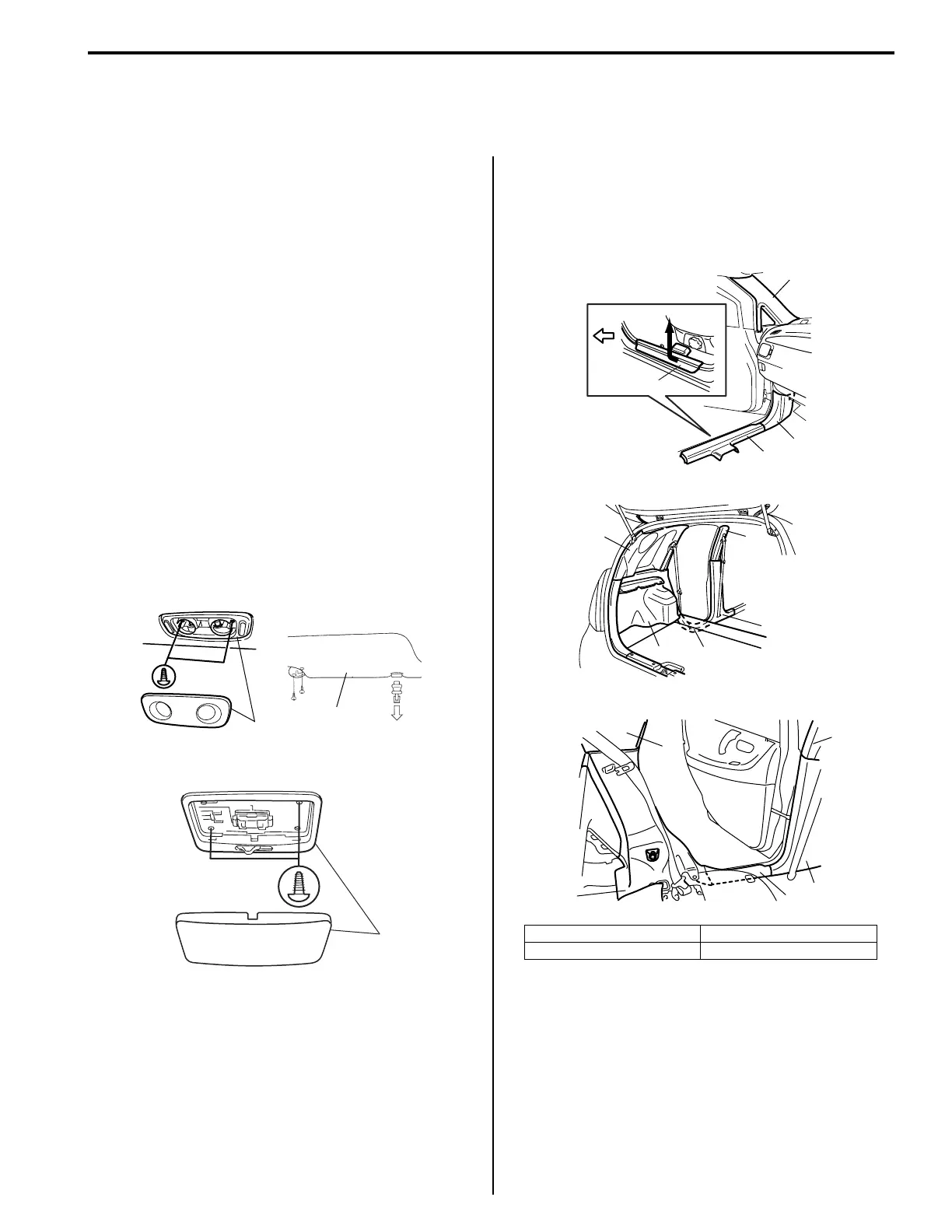

Head Lining Removal and Installation
S3RH0A9806002
Removal
1) Remove spot light assembly (1), if equipped.
2) Remove sun visor (2).
3) Remove doom light assembly (1).
4) Remove front pillar trim (1), front side sill scuff (2),
dash side trim (3), center pillar inner trim (4), center
pillar inner upper trim (5), rear side sill scuff (6),
quarter inner trim (7), quarter window trim (8), rear
side lower trim (10) and rear side upper trim (11).
2
1
I2RH01980001-01
1
I2RH01980002-01
[A]: For Wagon model 9. Forward
[B]: For Sedan model
2
1
2
3
9
4
6
7
8
5
[A]
11
5
4
6
10
[B]
I3RH0A980003-01
To Next Page
