Installation
Reverse removal procedure noting the following
instruction.
• Apply grease to sliding portions of window regulator.
: Grease 99000–25010
• Tighten front door window regulator attaching bolts in
proper tightening order.

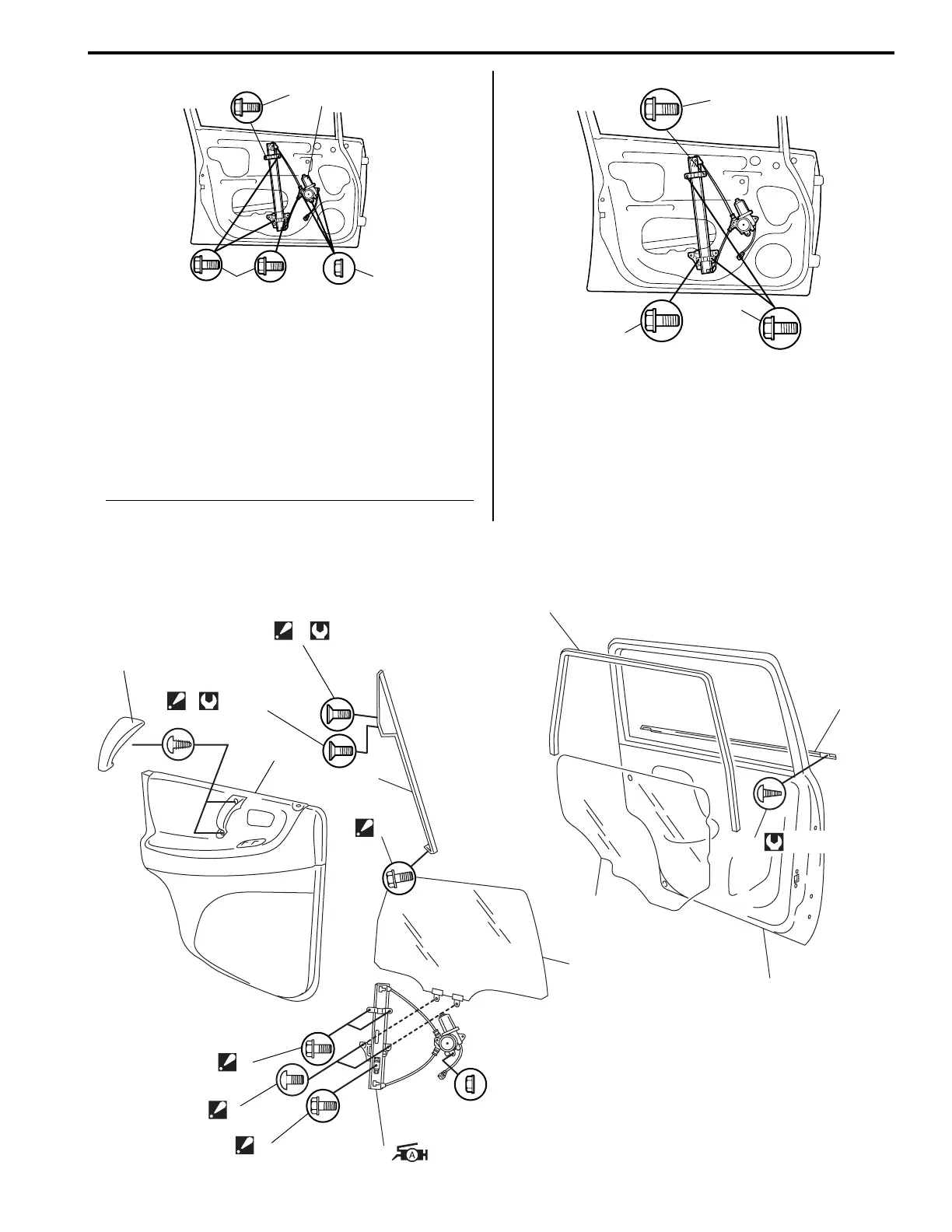

Front door window regulator bolt tightening order
(a) → (b) → (c)
Front Door Window Regulator Inspection
S3RH0A9506006
Check the following parts for wear, damage, smooth
operation and lubrication:
• Check regulator sliding and rotating parts.
• Check rollers.
• Check wire.
Rear Door Window Components
S3RH0A9506007
1
1
3
2
I2RH01950024-01
(b)
(c)
(a)
I3RH0A950002-01
8
6
2
1
5
10
7
9
3
12
12
4
11
a
b 2.5 N·m (0.25 kg-m)
c
2.5 N·m (0.25 kg-m)
1.5 N·m (0.15 kg-m)
I4RH01950009-01
