8B-9 Air Bag System:
Component Location

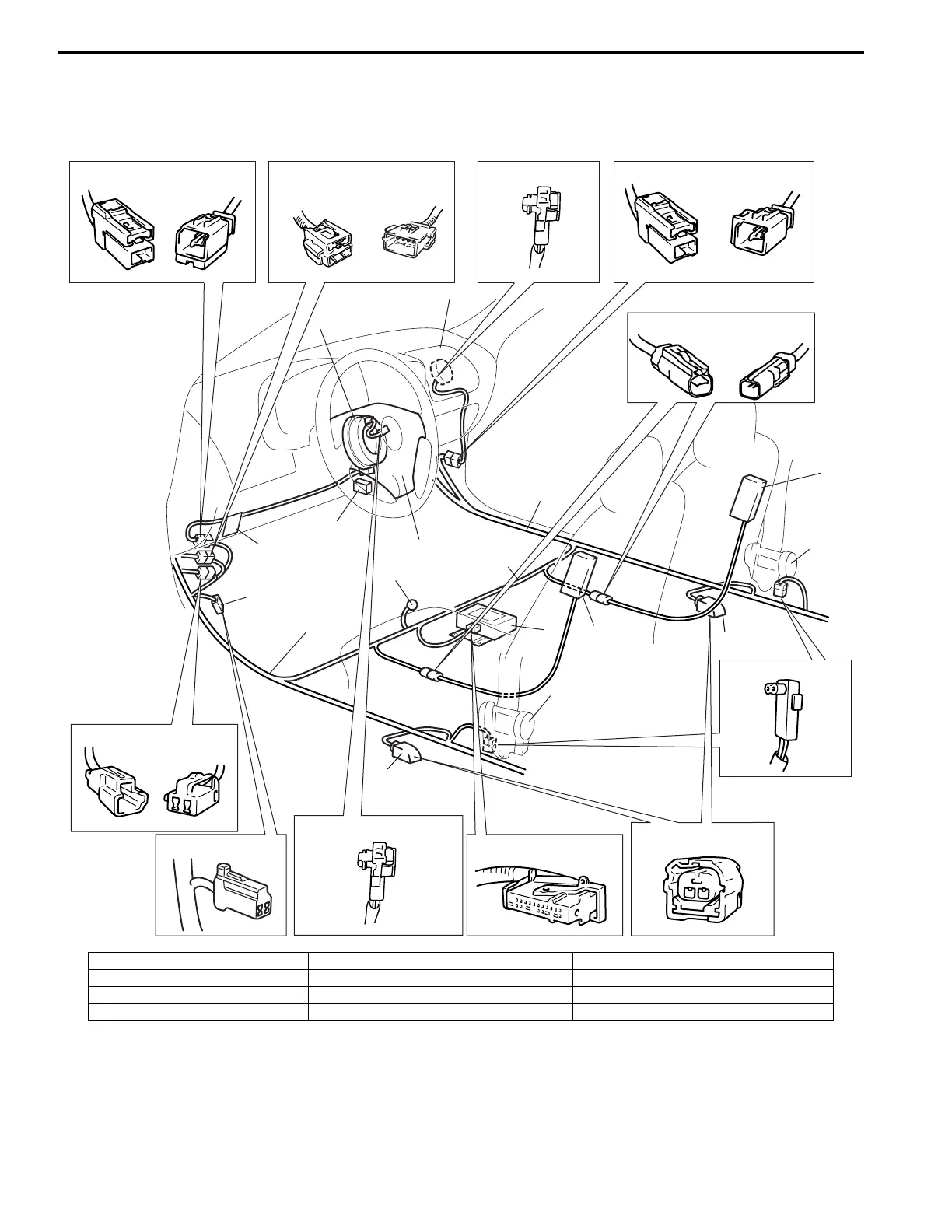

Air Bag System Components, Wiring and Connectors Location
S3RH0A8203001
1
4
6
5
7
8
3
2
8
1
1
10
10
9
11
CONECTOR “L73“, “L74”
CONECTOR “L75“, “L76”
CONECTOR “L79”
CONECTOR “L81”
CONECTOR “L28”
CONECTOR “L77“, “L78”
CONECTOR “L70”
CONECTOR “L72”, “G28”CONECTOR “L35"
11
CONECTOR “L83”, “G46”
CONECTOR “L80”, “G14”
12
I3RH0A820010-01
1. Air bag harness (in floor harness) 5. Driver air bag (inflator) module 9. Ground for air bag system
2. “Air bag” monitor coupler 6. Passenger air bag (inflator) module 10. Side air bag (inflator) module (if equipped)
3. DLC 7. SDM 11. Side sensor (if equipped)
4. Contact coil assembly 8. Seat belt pretensioner (retractor assembly) 12. AIR BAG fuse (in circuit fuse box)
