Swann DVR4-2000 - Installing;Changing the HDD

Remove
Back of DVR
Power Cable
SATA Cable
Note: the following instructions are
for installing or changing the hard
drive. If your DVR already has a hard
drive pre-installed, and you don’t want
to change it, disregard these steps.
Ensure the DVR is switched off 1.
and unplugged from mains
power.

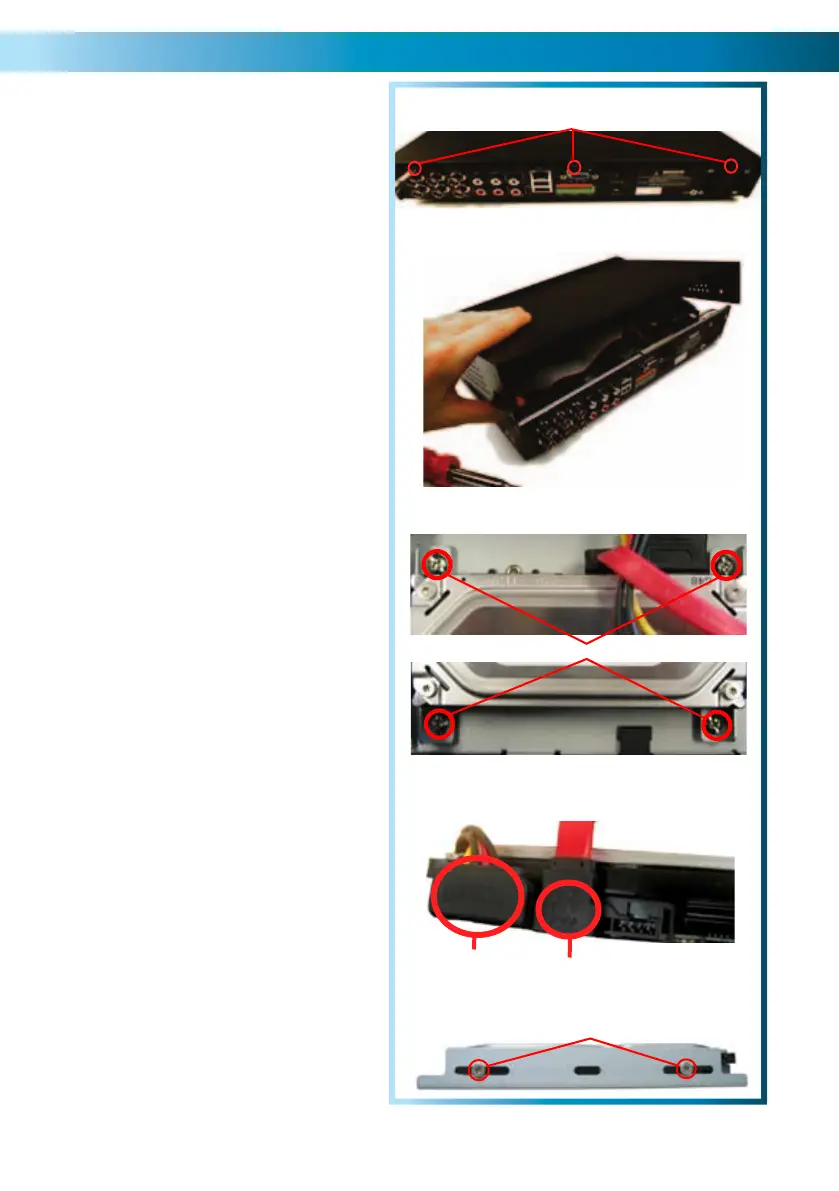

Locate and remove the 3 screws 2.
on the rear of the DVR.
Pull up the top case of the DVR. 3.
Locate the 4 screws holding 4.
down the hard drive chassis.
Remove these screws and
remove the chassis from the
DVR.
Push the metal clip on the SATA 5.
cable (single red or orange cable)
to unplug the cable from the
hard drive. Unplug the power
cable (2 black, 1 yellow, and 1
red cable) from the back of the
hard drive.
Four screws secure the hard drive 6.
to the drive chassis. Remove
these.
If replacing the hard drive, put the 7.
new hard drive into the chassis.
Screw in the hard drive to 8.
chassis as in step 5, and attach
the chassis to the DVR case as
in step 4.
Replace the top of the case.9.
Screw in the remaining screws 10.
to the sides and back of the DVR
as in step 2.
