9. Final Driving Mechanism
9-3
Disassembly of Final Driving
Mechanism

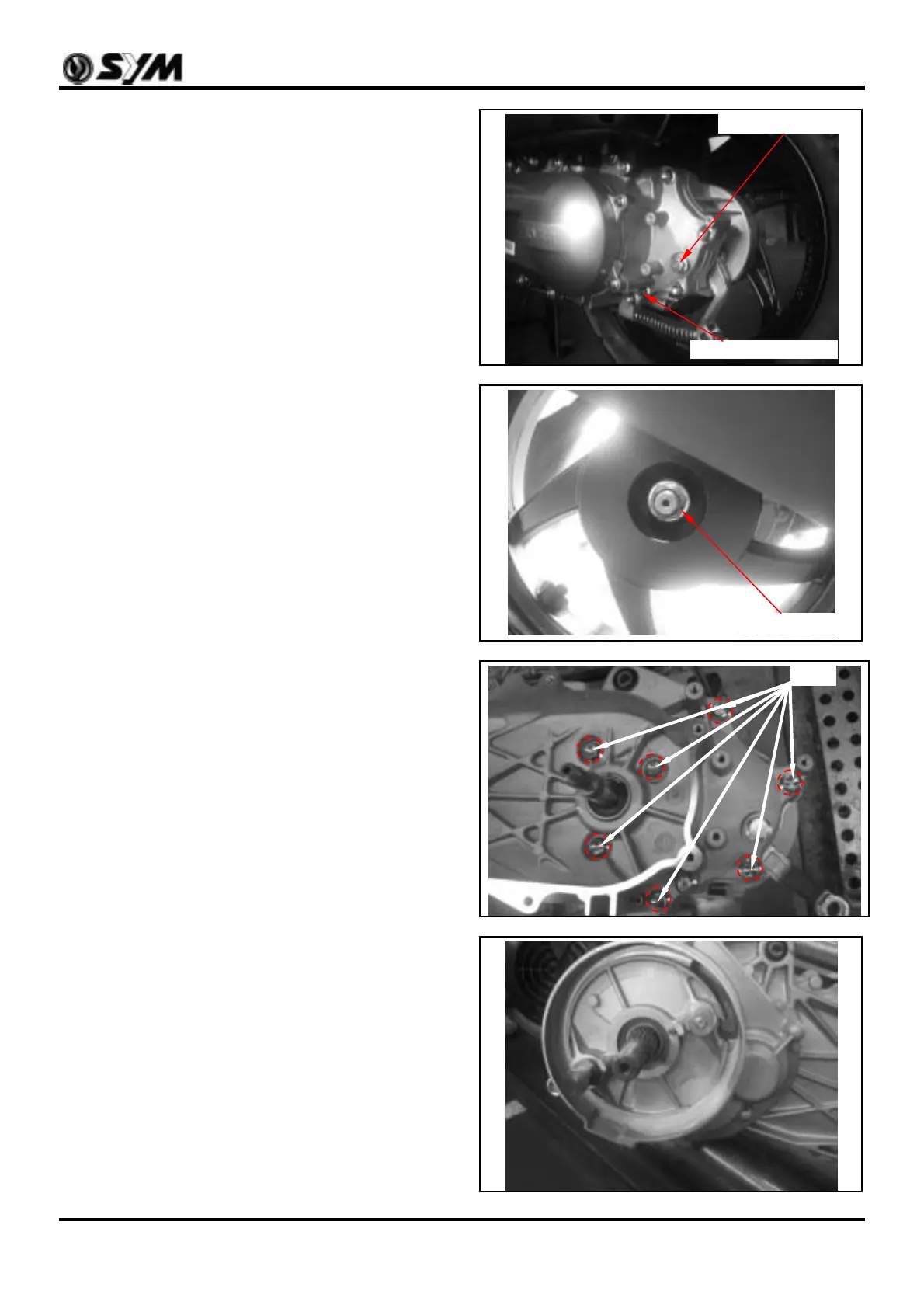

Remove driven pulley
Remove gear oil drain bolt and filling bolt.
Drain gear oil out from gearbox.
Remove muffler and rear wheel.
Remove gearbox cover mounting bolts from the
clutch side (7 bolts).
Remove the mission cover from the rear wheel
side.
Rear wheel nut
Gear Oil filling bolt
Gear Oil draining bolt
7 bolts
